GATE RESTRICTOR PLATE
CAUTION: Disconnect power to dispenser before installing, removing or adjusting
restrictor.

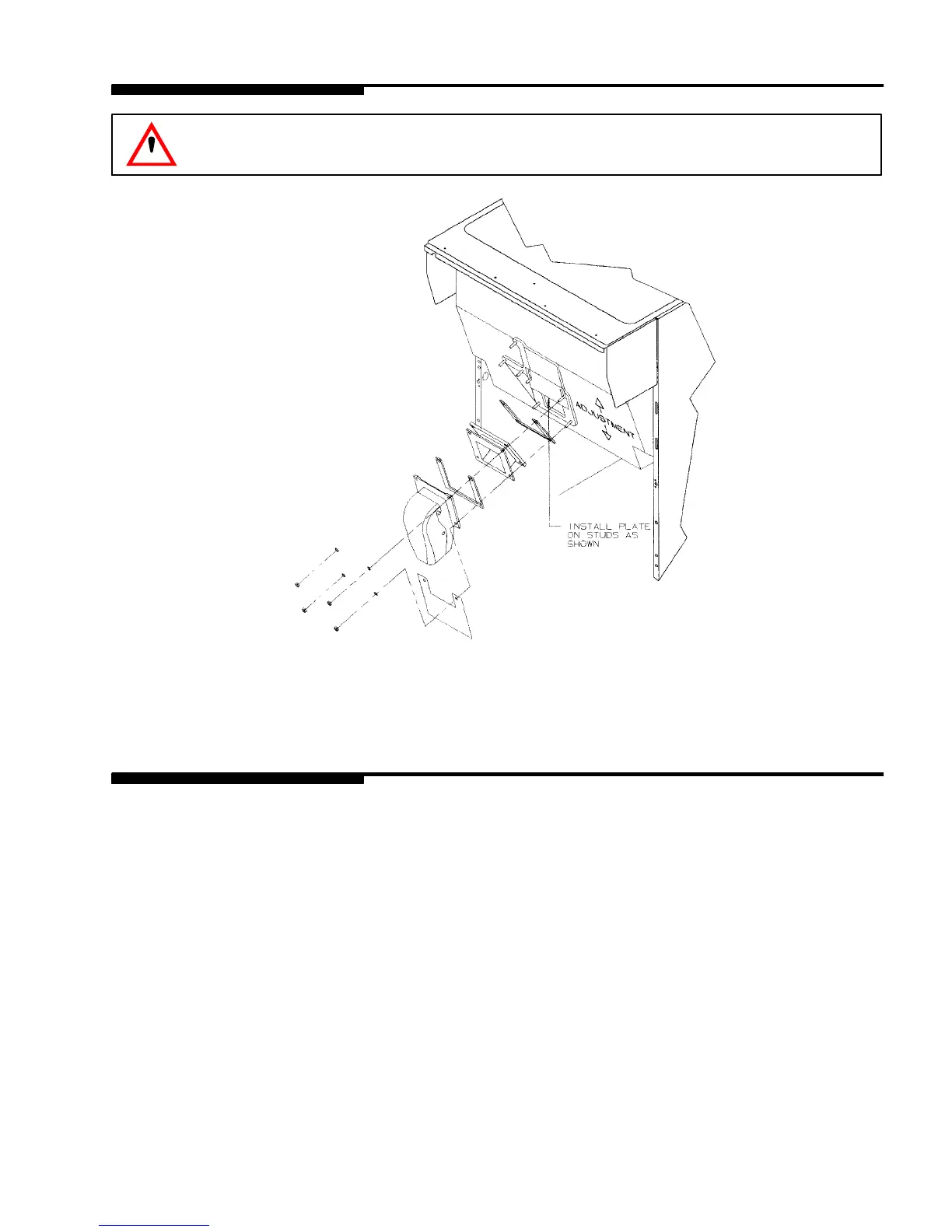

FIGURE 1. GATE RESTRICTOR PLATE
ADJUSTMENT
This dispenser is provided with a gate restrictor plate (Figure1), installed in its highest position. This plate ad-
justs the rate of ice flow from the dispenser. In applications using buckets, carafes or other large containers, the
plate may be removed entirely for maximum ice flow. For glasses and cups, the plate may be adjusted down-
ward to reduce the flow of ice. the best position depends on the type of ice being used and the size container
and must be found by trial and error. Adjustment is made by loosening the upper two ice chute retaining nuts,
sliding the restrictor plate to the desired position and re-tightening the nuts.
If the dispenser fails to dispense the ice when operated, check that the hopper has ice in it and that power is
being supplied to the unit. If the problem persists, refer to troubleshooting guide on (page 14).
