REMEHA W40 - 3 Technical Data and Dimensions; Dimensions

5

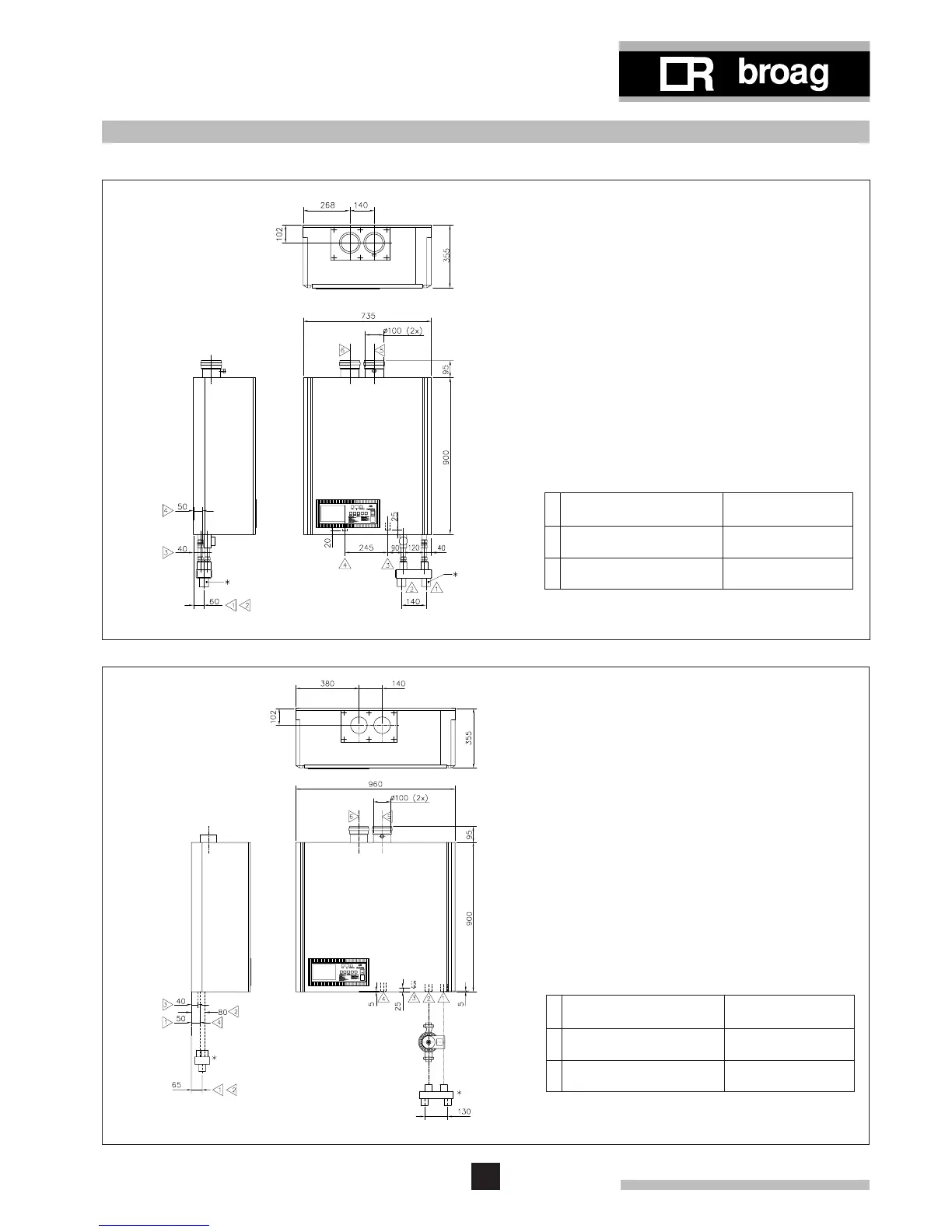

3. TECHNICAL DATA AND DIMENSIONS
3.1 Dimensions
Top
view
remeha W40-m ECO
Side view
Front view
Fig. 01 remeha W40-m ECO
remeha W60-m ECO
1 Flow boiler 28 mm dia.
2 Return boiler 28 mm dia.
3 Gas 3/4 " male thread
4 Condensate discharge 32 mm dia.
5 Flue gas discharge 100 mm dia.
6 Combustion air supply 100 mm dia.
* Low loss header for single boiler only
Flow/return connections 1 1/4 BSP (F)
Fig. 02 remeha W60-m ECO
Front view
Side view
Top
view
1 Flow boiler 1 1/4 " male thread
2 Return boiler 1 1/4 " male thread
3 Gas 3/4 " male thread
4 Condensate discharge 32 mm dia.
5 Flue gas discharge 100 mm dia.
6 Combustion air supply 100 mm dia.
* Low loss header for single boiler only
Flow/return connections 1 1/2 BSP (F)
