15
I
PGT 100-R07
PGT 100
Legend:
HS
=
Auxiliary relay
I
=
Ionisation electrode
KL
=
T
erminal block
M
=
Fan motor
MV
=
Solenoid valve
NK
=
Aftercooler thermostat
RS
=
Relay socket
RT
=
Thermostat socket
STB
=
Safety temperature limiter
S
=
Operating switch
Z
=
Ignition electrode
ZT
=
Ignition transformer

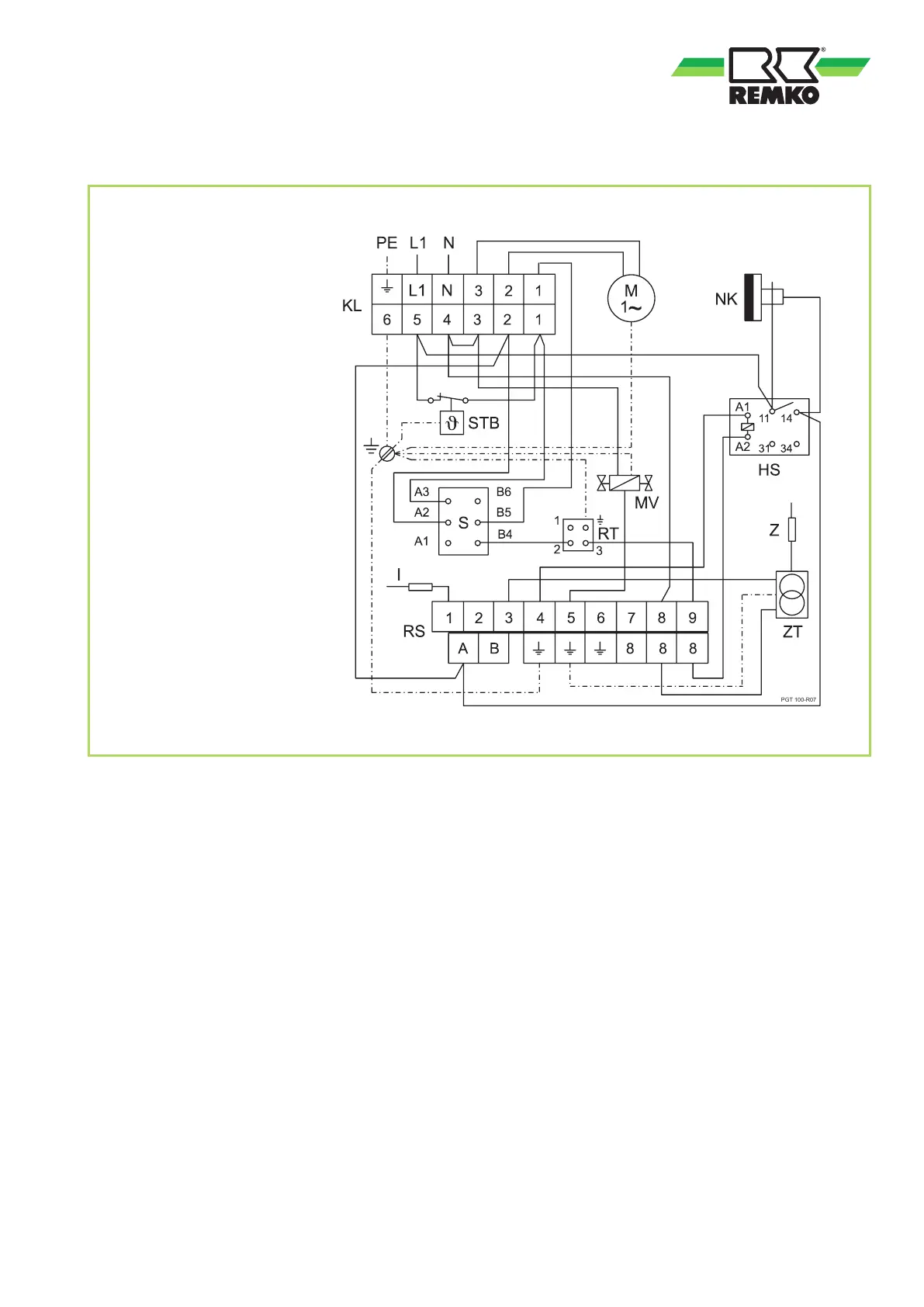

Electrical wiring diagram
W
e reserve the right to modify the dimensions and design as part of the ongoing technical development process.
14
16
Table of Contents
Table of Contents
3
Safety Notes
4
Unit Description
4
Installation Instructions
5
Gas Connection
6
Commissioning
8
Shutdown
10
Care and Maintenance
10
Troubleshooting
12
Intended Use
13
Customer Service and Guarantee
13
Environmental Protection and Recycling
13
Electrical Wiring Diagram PGT
14
Electrical Wiring Diagram PGT 100
15
Exploded View of PGT 30
16
Exploded View of PGT 60
18
Exploded View of PGT 100
20
Spare Parts List for PGT 100
21
Maintenance Protocol
22
Technical Data
23
