RBW 301 PV-S
1
2
4
3
9
7
12
16,5
99
1105
1440
1865
640
150 150
240
8
1040
11
6
10
5
545
1210
595

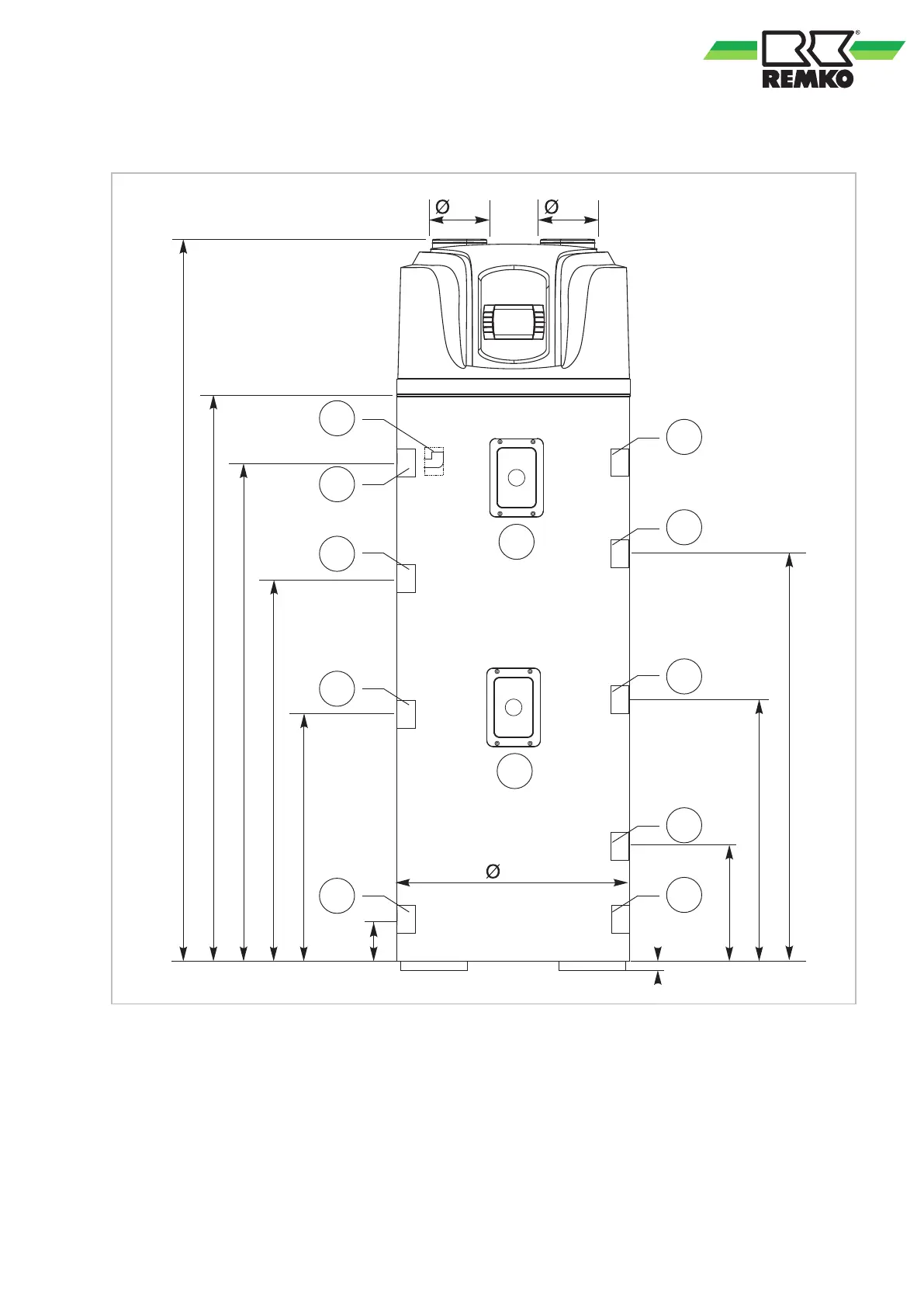

Fig. 2: Dimensions and designations of the pipe connections (data in mm)
1: Condensate drain Rp 1/2
2: Hot water outlet G 3/4"
3: False anode
4: Circulation G 3/4"
5: Cold water inlet G 3/4"
6: Safety valve connection
7: Heating-inlet heat exchanger G 3/4"
8: Immersion sleeve for temperature probe
9: Heating-return flow heat exchanger G 3/4"
10: Drainage G 3/4"
11: Overheating protection
12: Heating coil
We reserve the right to make changes within the framework of technical advancement!
