2.3 Unit dimensions and designations of the pipe connections
RBW 301 PV
1
2
3
6
16,5
99
1105
1440
1865
640
150 150
1210
5
4
1210
8
7

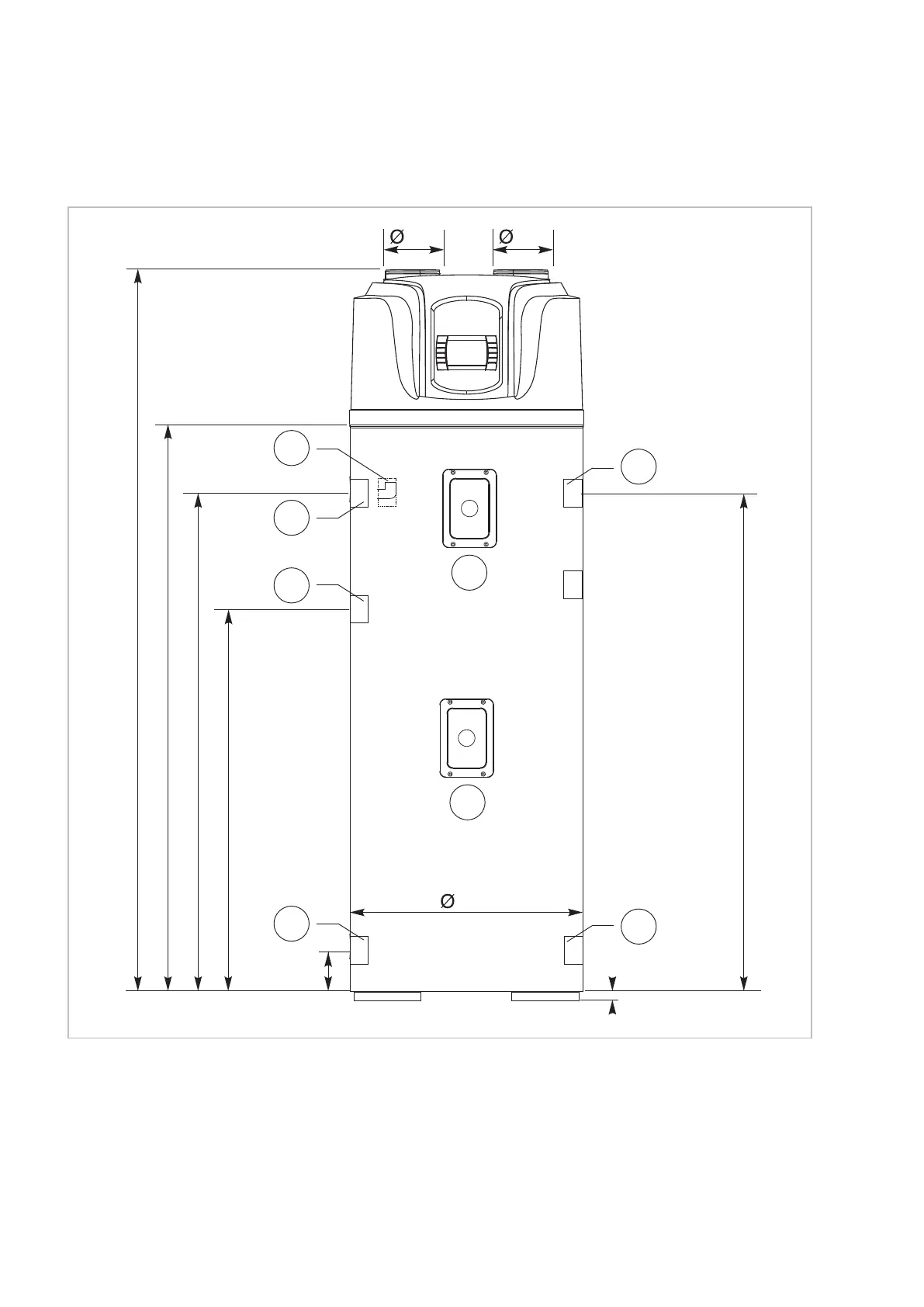

Fig. 1: Dimensions and designations of the pipe connections (data in mm)
1: Condensate drain Rp 1/2
2: Hot water outlet G 3/4"
3: False anode
4: Cold water inlet G 3/4"
5: Safety valve connection
6: Drainage G 3/4"
7: Overheating protection
8: Heating coil
