REMKO RVT 262 - Page 15

Heating capacity RVT 682
0,00
1,00
2,00
3,00
4,00
5,00
6,00
7,00
8,00
9,00
12 7 2 0 -7 -10 -15
2
1
3
A
[°C]

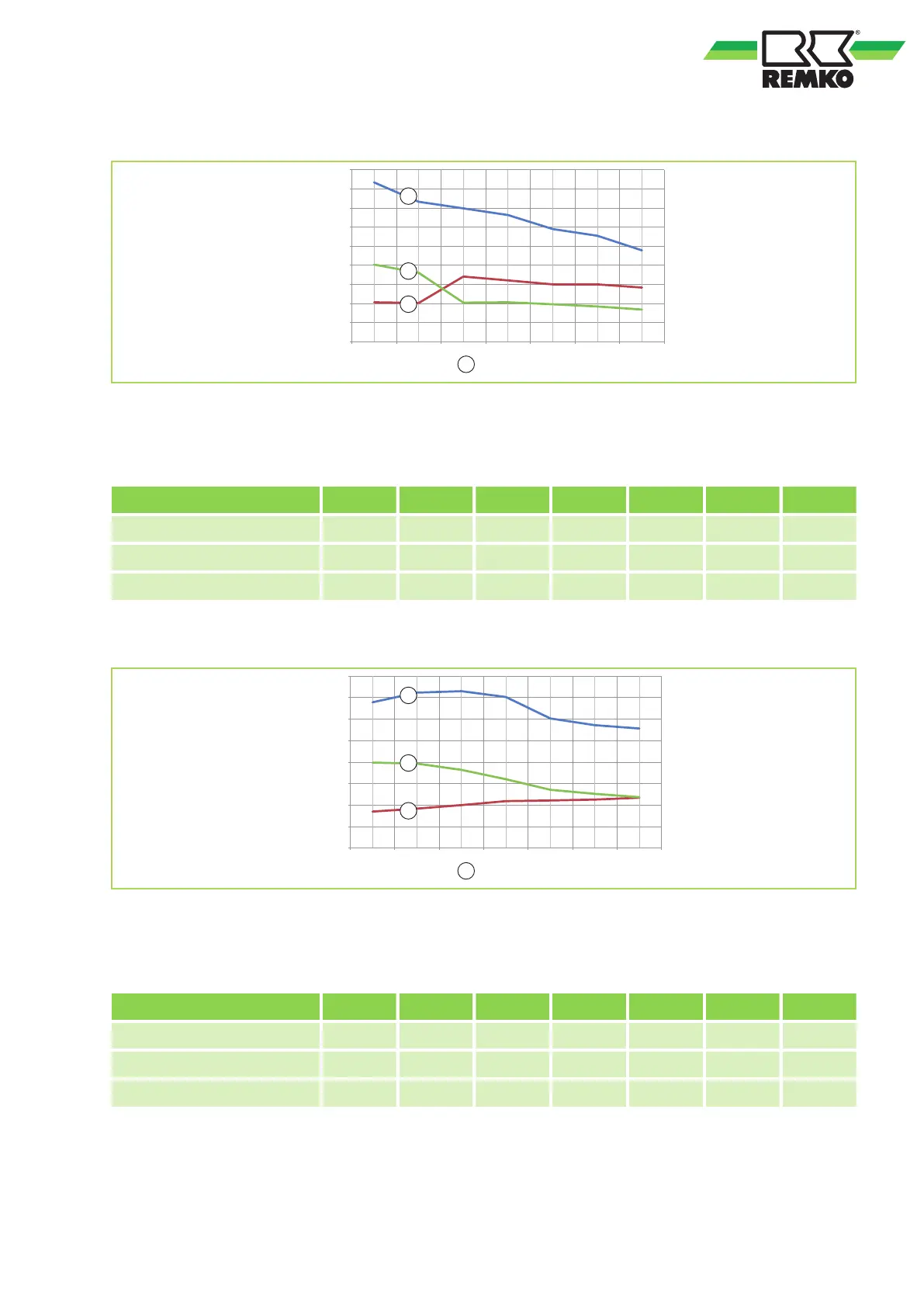

Fig. 10: Characteristic curves heating RVT 682 (specification at indoor temperature 20 °C)
A: Outdoor temperature
1: COP
2: Heating capacity in kW
3: Power consumption in kW
Outdoor temperature in °C 12 7 2 0 -7 -10 -15
Heating capacity in kW 8,34 7,33 6,99 6,63 5,90 5,55 4,79
Power consumption in kW 2,06 2,03 3,41 3,21 3,00 3,00 2,84
COP 4,04 3,61 2,05 2,07 1,96 1,85 1,69
Cooling capacity RVT 682
0,00
1,00
2,00
3,00
4,00
5,00
6,00
7,00
8,00
21 25 30 35 40 45 50
2
1
3
A
[°C]
Fig. 11: Characteristic curves cooling RVT 682 (specification at indoor temperature 27/19 °C)
A: Outdoor temperature
1: EER
2: Cooling capacity in kW
3: Power consumption in kW
Outdoor temperature in °C 21 25 30 35 40 45 50
Cooling capacity in kW 6,79 7,24 7,30 7,03 6,03 5,72 5,57
Power consumption in kW 1,71 1,84 2,00 2,19 2,22 2,26 2,35
EER 3,98 3,93 3,64 3,21 2,72 2,53 2,37
15
