REMKO RVT 262 - Electrical Drawings (Indoor unit RVT 682 IT)

Indoor unit RVT 682 IT
3
4
202302130859
CN10A
CN4
CN5
CN11
CN44
FAN_IN
CN-KEY
CN12_1
CN12_2
L-OUT
L-IN
CN8
CN9
CN16
A
B
D
1
C
2 3 4
5
6
7

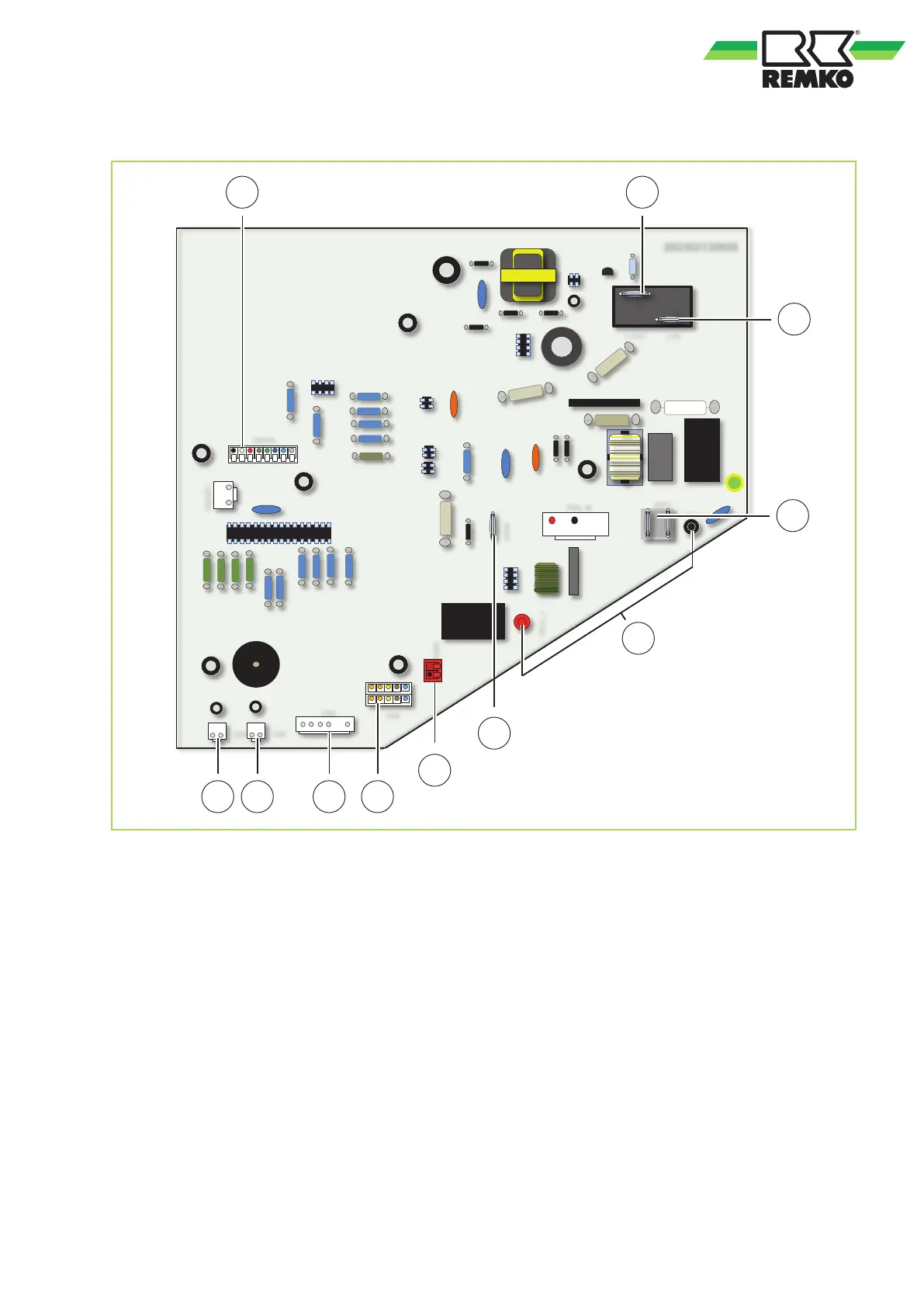

Fig. 51: Electrical drawings RVT 682 IT
A: Supply terminal contact = L
B: Supply terminal contact = 1
C: Supply terminal contact = N
D: Control line terminal contact = S
1: Air circulation probe
2: Probe evaporator
3: Evaporator fan motor
4: Swing motor 1
5: Plasma
6: Ion generator
7: Display
