REMKO WKF Series User Manual

2.6 Overview of electrical cables
WKF/WKF compact 80/100/130
1
A B C D
230V~/N/Pe
230V~/N/Pe
L1
N
Pe
L1
N
Pe
400V/3~/N/Pe
L1
L2 L3
N
Pe
E

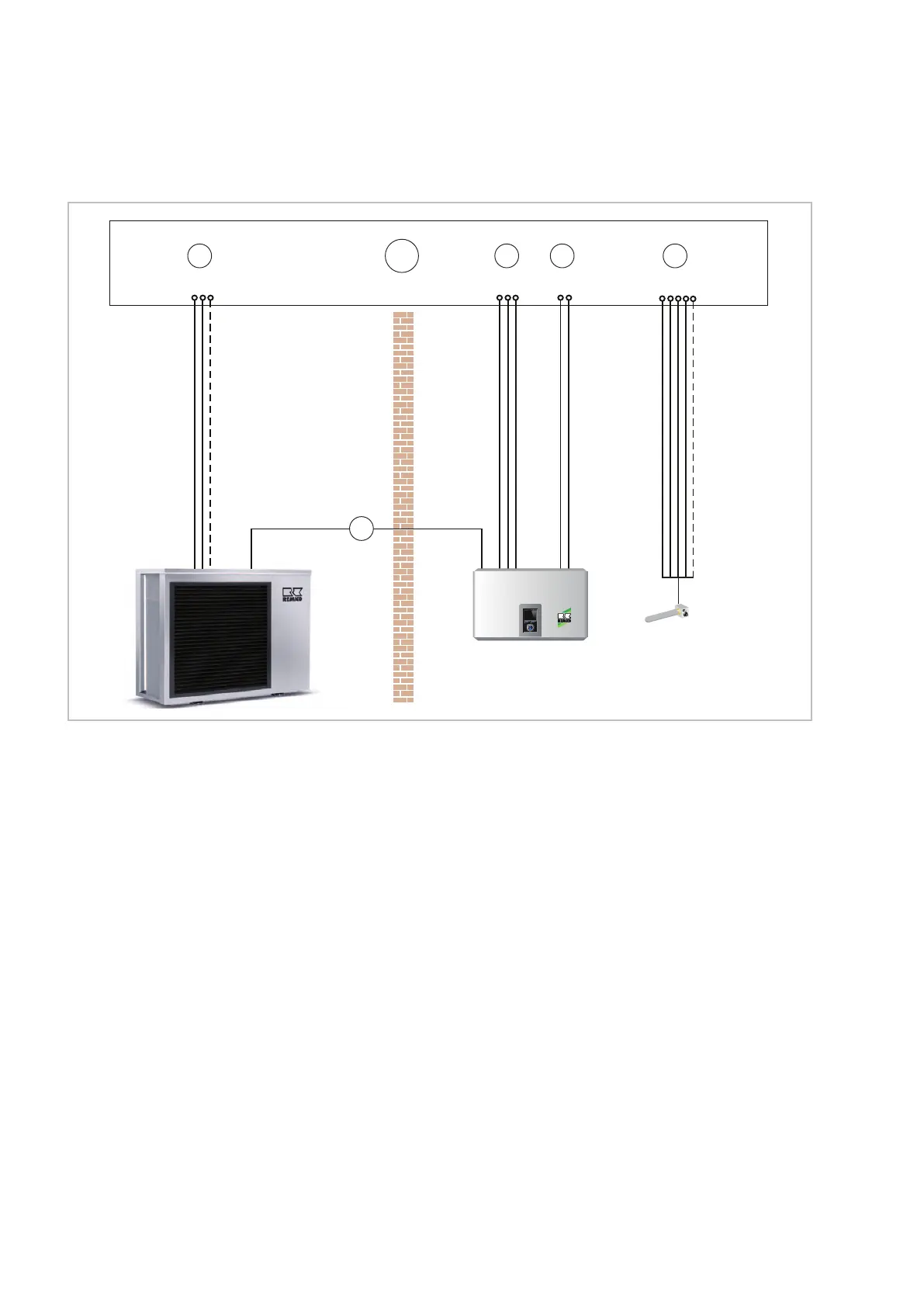

Fig. 6: Overview of electrical cables
1: Main distribution
A: Power supply outdoor unit
B: Power supply indoor unit
C: Power utility disable signal, potential-free /
open = locked
D: Power supply heating coil, 6 kW indoor unit
E: Modbus communication, terminal A/B
