2.10 Electrical drawings for outdoor units
WKF/WKF compact 80 to 130 and WKF 130 Duo outdoor units
A
B
C
2
1
4
3
5 6 7
8 9 10
11
12
13
14
15

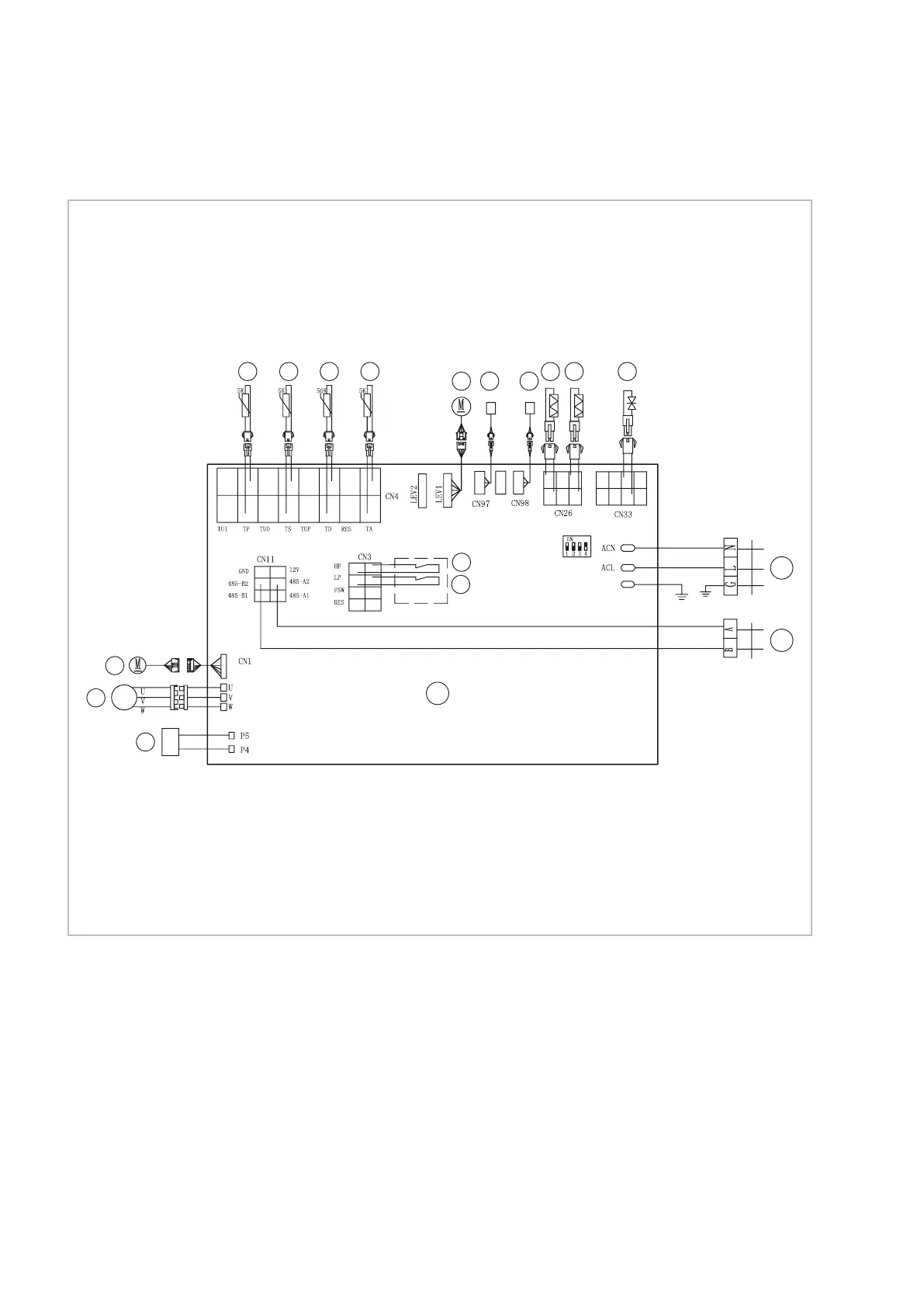

Fig. 14: Electrical drawings for outdoor units
A: Motherboard
B: Power supply cable
C: Communication line to indoor unit
1: TP evaporator probe
2: TS suction pipe probe
3: Sensor, TD heat gas
4: Sensor, TA air suction
5: Electric expansion valve
6: High pressure transducer
7: Low pressure transducer
8: Crankcase heating, compressor
9: Condensate tray heating
10: 4-way valve
11: Not connected
12: Not connected
13: Fan motor
14: Compressor
15: Choke
