REMKO WLT EC Series User Manual

Mounting plates

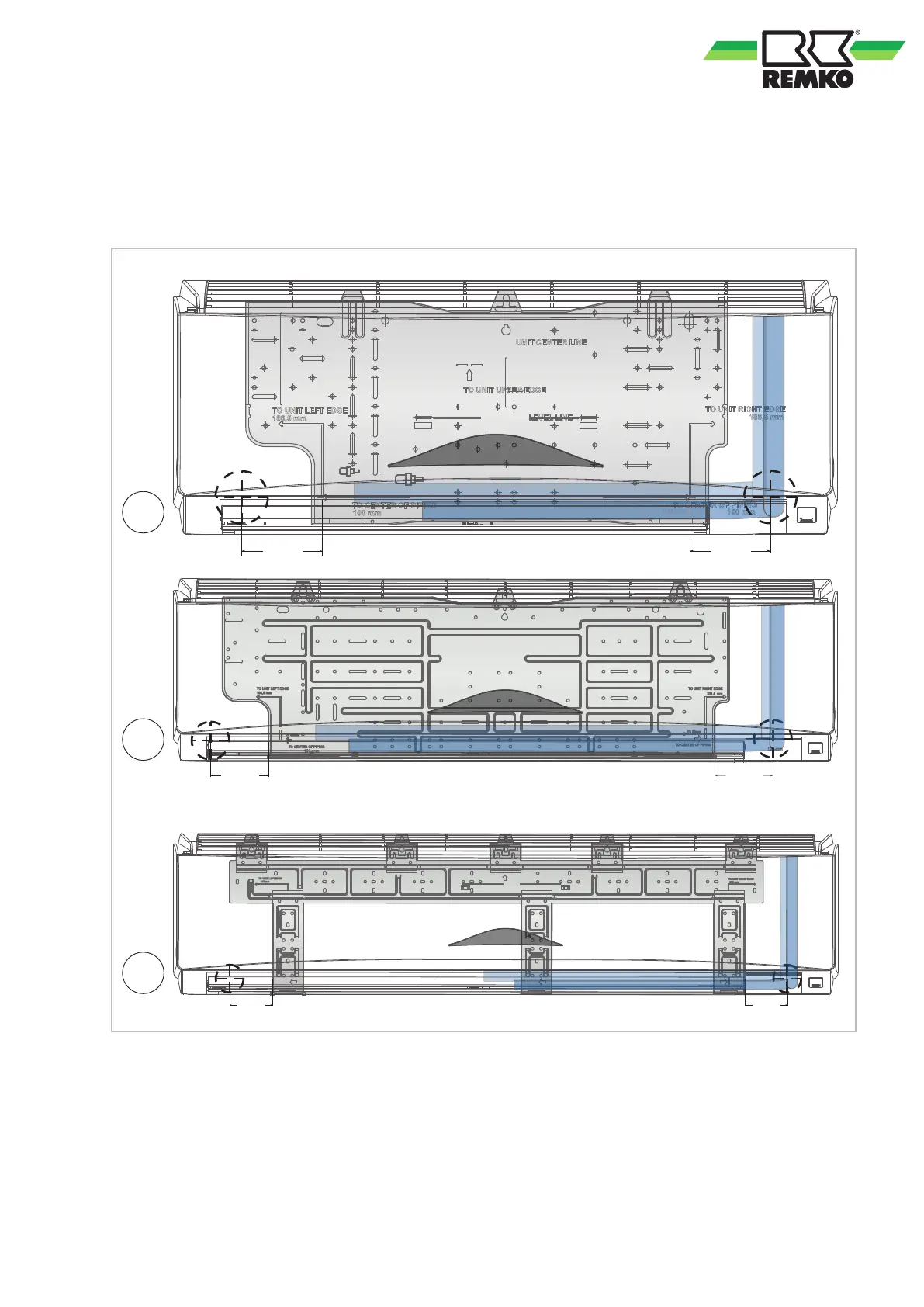

The following figures show the mounting plates when installed, as well as the route of the medium piping
installed on the unit (shaded in blue). The centre point marked on the mounting plate is also the centre point
of the unit. The hole for the medium piping can be arbitrarily located on the left or right and should have a
minimum diameter of 65 mm.
100,00 mm 100,00 mm
100 mm
100 mm
100,00 mm
100,00 mm
UNIT CENTER LINE
TO UNIT UPPER EDGE
LEVEL LINE
TO CENTER OF PIPING
100 mm
186,5 mm
TO UNIT LEFT EDGE
TO CENTER OF PIPING
100 mm
186,5 mm
TO UNIT RIGHT EDGE
100 mm
100 mm
A
B
C
Fig. 29: Mounting plates
A: WLT 30 EC - WLT 40 EC
B: WLT 50 EC - WLT 60 EC
C: WLT 80 EC - WLT 90 EC
33
