6 Installation
6.1 Unpacking

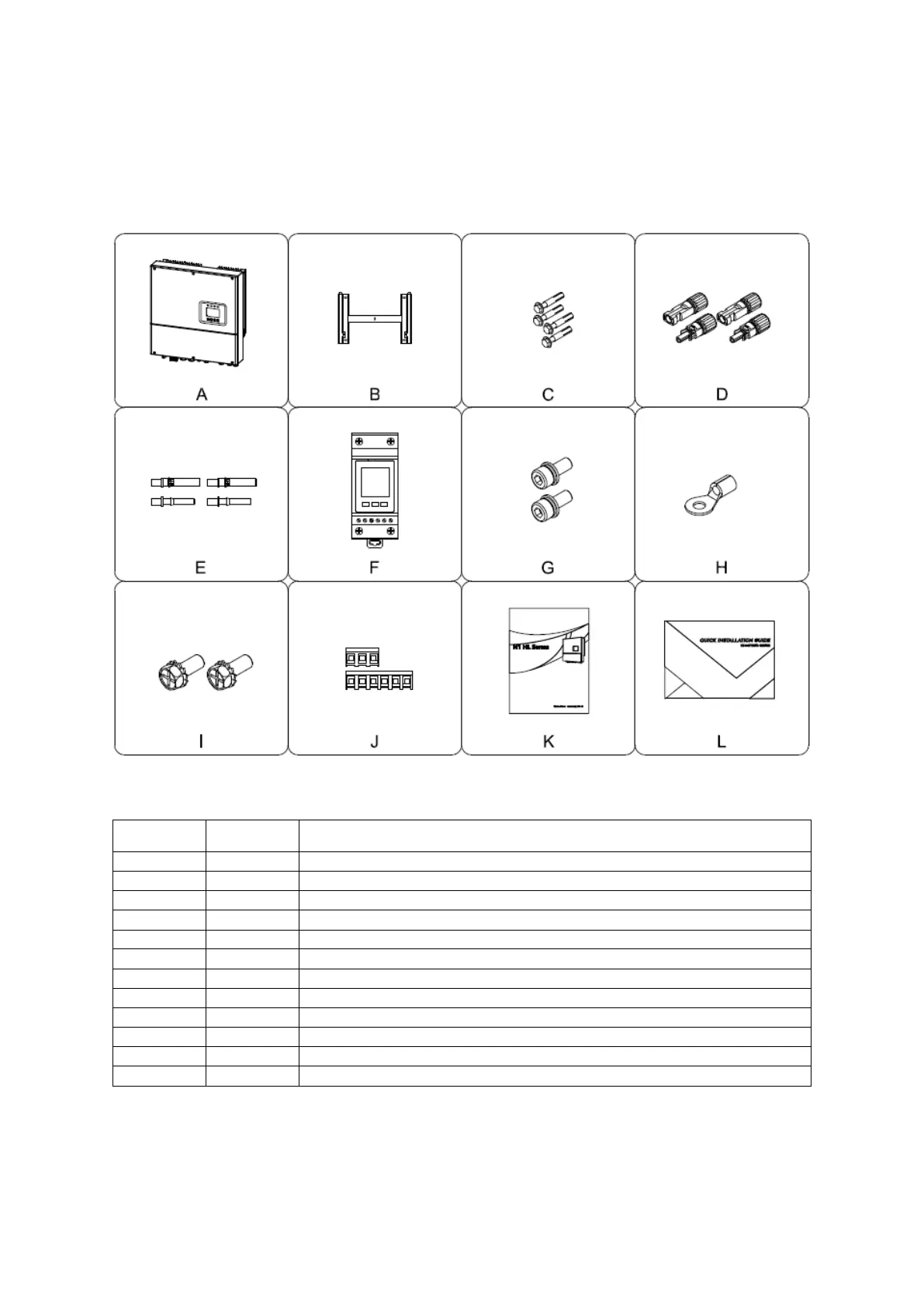

Check the delivery for completeness. Contact your dealer at once if anything is missing.
Object
Quantity
Description
A
1
ESC Series Hybrid inverter
B
1
Bracket
C
4
M8 screw
D
4
DC Connectors 2* positive, 2*negative
E
4
DC Pin contact 2* positive, 2* negative
F
1
Meter
G
2
M5 screw
H
1
Ground Terminal
I
2
Ground screw
J
1
3Pin & 6Pin terminal block male connector
K
1
Installation guide
L
1
Quick installation guide
Open the package and pick the product, check that if there is any distortion or impaired during
the transportation. Meanwhile, check that if the relating accessories and the materials are here,
you can see the accessories list in the table.
