Renac ESC5000-DS - Terminals

11
WARNING!
 Make sure the load powering rating in within the EPS’s output rating. Or
the inverter will shut down with an “over load” warning.
 When an “over load” is appeared, adjust the load power make sure it is
with the range of the EPS output, and turn the inverter on.
 For the nonlinear load, please pay attention to the inrush power make
sure it is within the range of the EPS output.

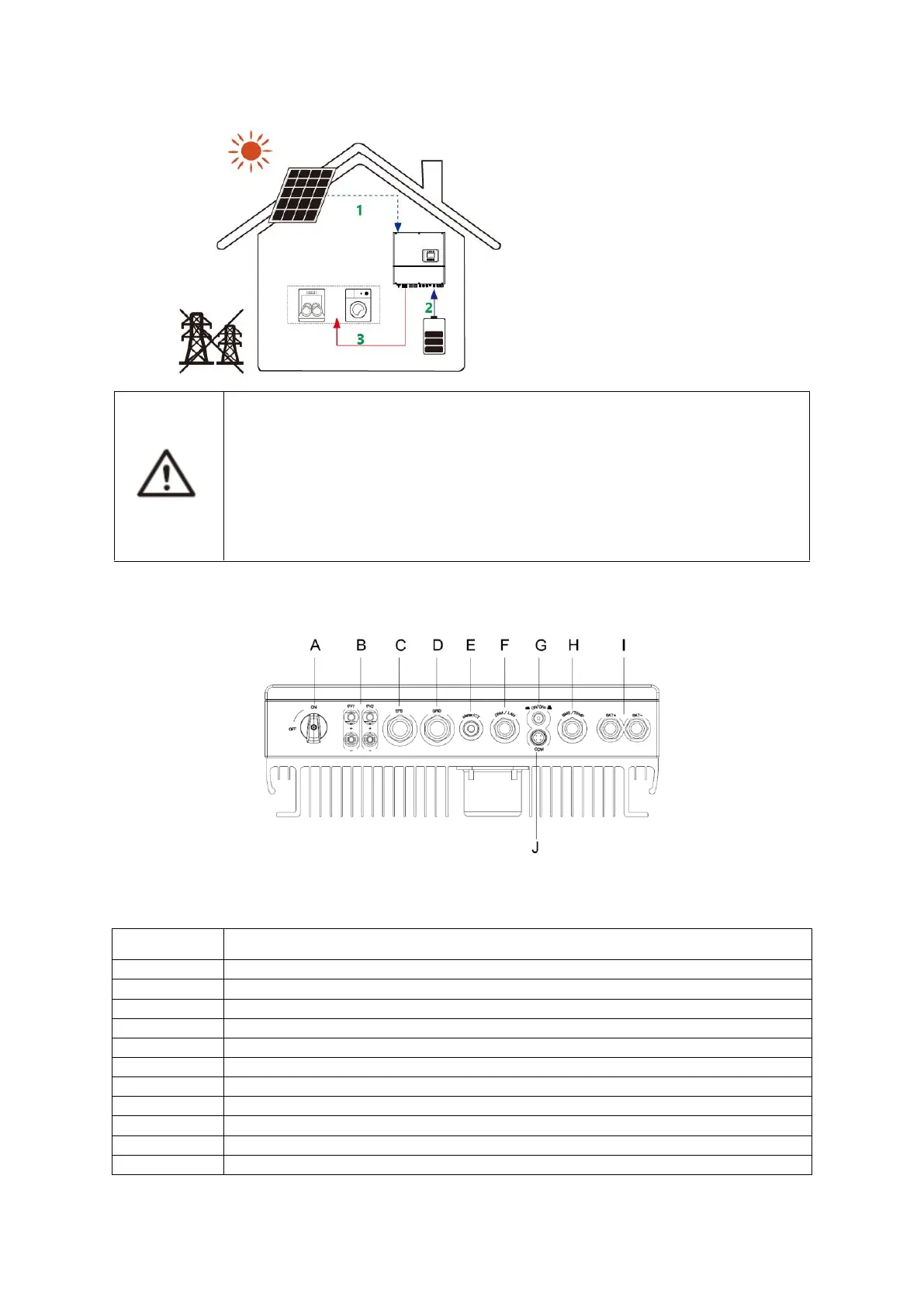

3.3 Terminals
Figure 3-1 Terminals
Object
Description
A
DC switch
B
DC connector area
C
EPS output
D
Grid output
E
Outside current sensor or meter port
F
Communication port for dry contact
J
Communication port for update
G
ON/OFF button
H
Battery communication port
H
Temperature port for battery
I
Battery connector
1) Generated solar energy
2) Self-use from battery
3) Load consumption
