11A-17
TOP AND FRONT OF ENGINE
Crankshaft accessories pulley: Removal - Refitting
K9K
11A

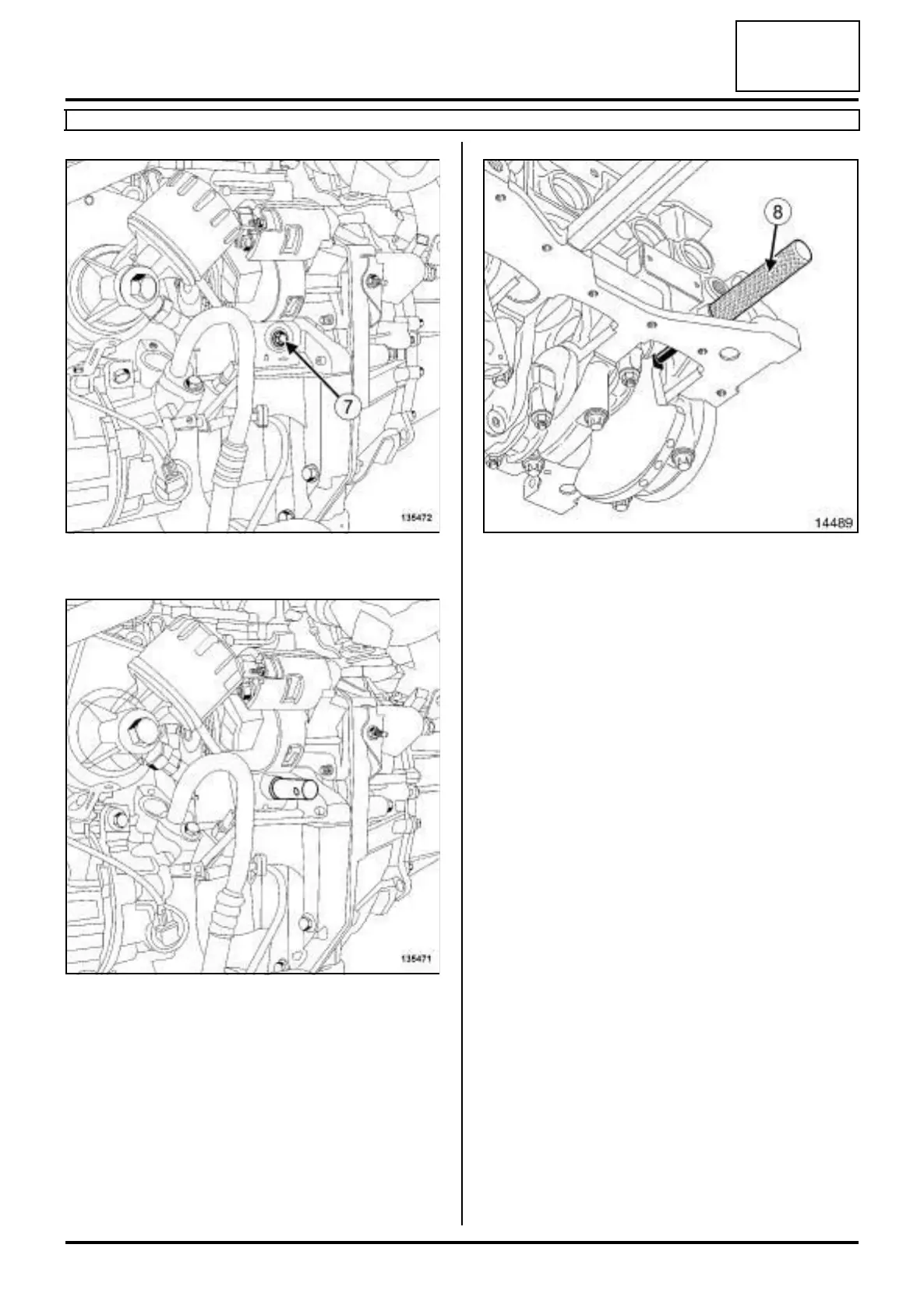

a Remove the TDC setting pin plug (7) .
a Screw tool (Mot. 1489) into the cylinder block.
a Remove the old bolt from the crankshaft accessories
pulley fitted with its spacer.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-the crankshaft accessories pulley,
-a new crankshaft accessories pulley bolt.
a Turn the crankshaft clockwise (timing end) smoothly
using the bolt of the crankshaft accessories pulley,
until the crankshaft presses against the tool (Mot.
1489) (8) .
a Torque tighten the crankshaft accessories pulley
bolt (120 N.m + 95˚ ±±
±±
15˚).
III - FINAL OPERATION
a Remove the (Mot. 1489) from the cylinder block.
a Apply a drop of SILICONE ADHESIVE SEALANT
(see Vehicle: Parts and ingredients for the repai-
rwork) to the threading of the TDC pin plug.
a Tighten to torque the TDC pin plug (23 N.m).
a Refit:
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) ,
- the engine undertray,
- the front section of the front right-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection),
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
- the engine cover.
135472
135471
14489
