11A-18
TOP AND FRONT OF ENGINE
Crankshaft accessories pulley: Removal - Refitting
F4R
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the front section of the front right-hand wheel arch
liner (see Front wheel arch liner: Removal - Re-
fitting) (55A, Exterior protection),
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-7) ,
-the engine undertray bolts,
-the engine undertray.
II - OPERATION FOR REMOVAL OF PART
CONCERNED

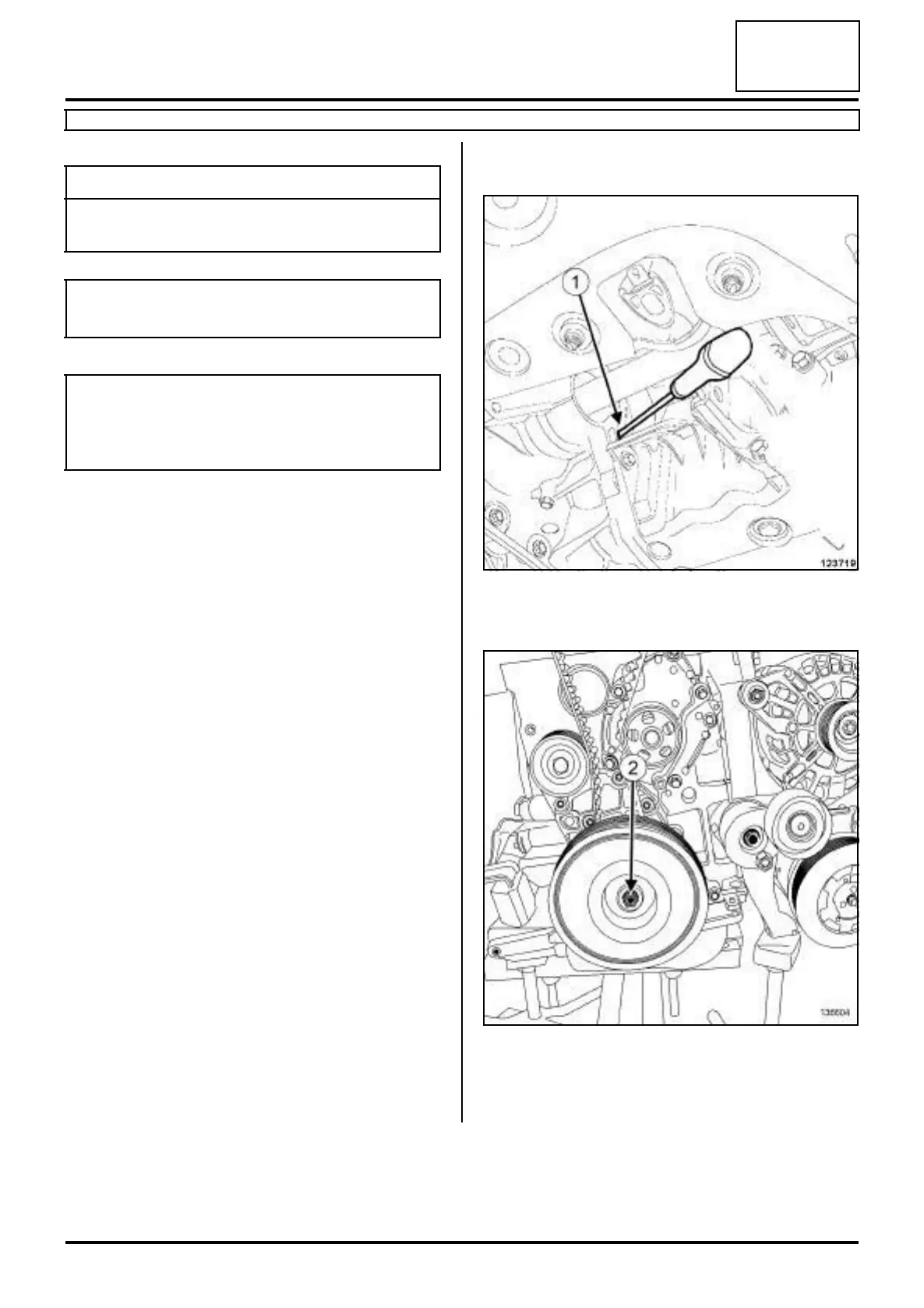

a Immobilise the flywheel using a screwdriver or a
male offset BTR wrench at (1) .
a Remove:
- the crankshaft accessories pulley bolt (2) ,
- the crankshaft accessories pulley.
Tightening torquesm
crankshaft accessories
pulley bolt
40 N.m + 110˚
±±
±±
10
IMPORTANT
Wear protective gloves during the operation.
WARNING
Do not run the engine without the accessories belt
to avoid damaging the crankshaft accessories pul-
ley.
