enjoliveurs ................................................ (jusqu’à la fin de l’UD)
5.4
ENG_UD1399_1
Enjoliveurs - Jantes (X44 - Renault)ENG_NU_773-1_X44_Renault_5
Enjoliveurs - Jantes

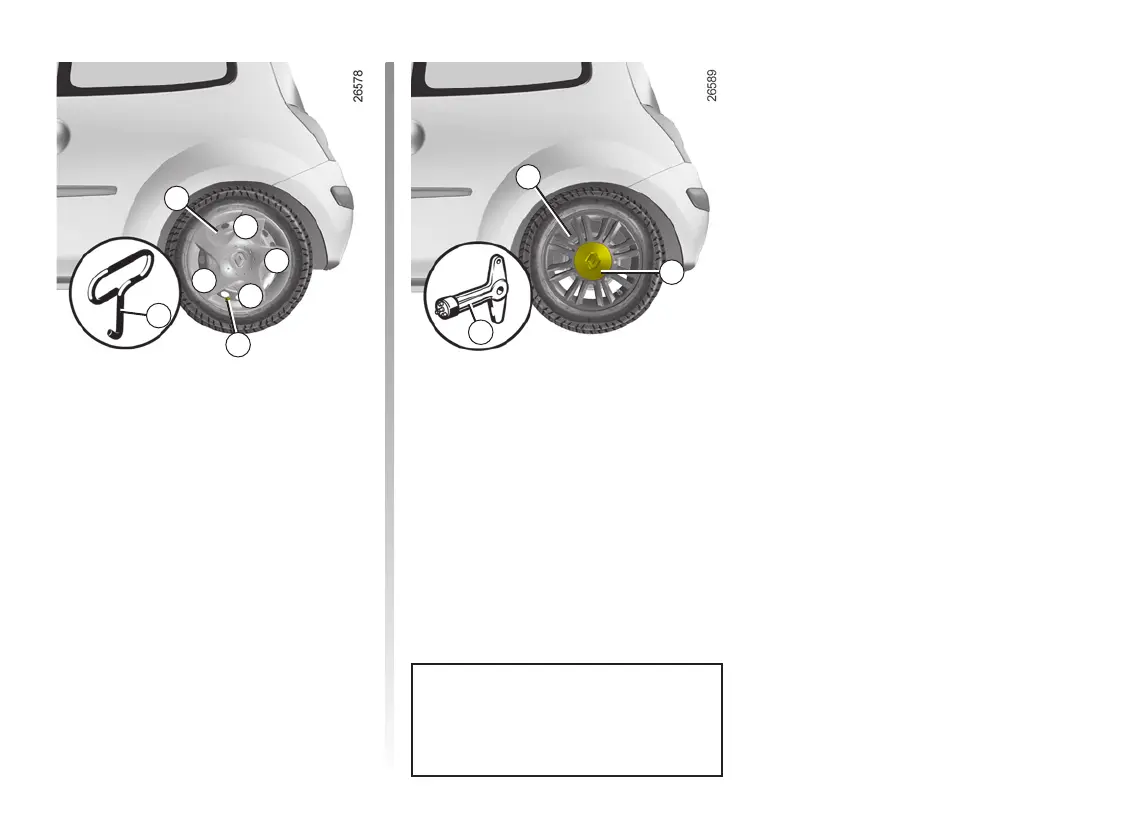

Wheel trim
(example: wheel trim 1)
Remove the wheel trim using hubcap
tool 3 (stored in the tool kit) by engag-
ing the hook in the opening for valve 2.
To refit it, align it with valve
2.
Push the retaining hooks in fully, start-
ing on the side of valve
A, followed
by B and D, finishing at C opposite the
valve.
Central wheel trim
(example: wheel trim 4)
Remove the wheel trim using hubcap
tool
5 (located in the tool kit) inserting
the tool into recess 6.
To refit it, position it in line with recess
6
and tighten it with tool 5.
WHEEL TRIM - WHEELS
We would advise you to note the
number engraved on the tool so that
you can replace it if it is lost.
1
3
2
A
C
D
B
4
5
6
