7. MCU Native Pin Access Area

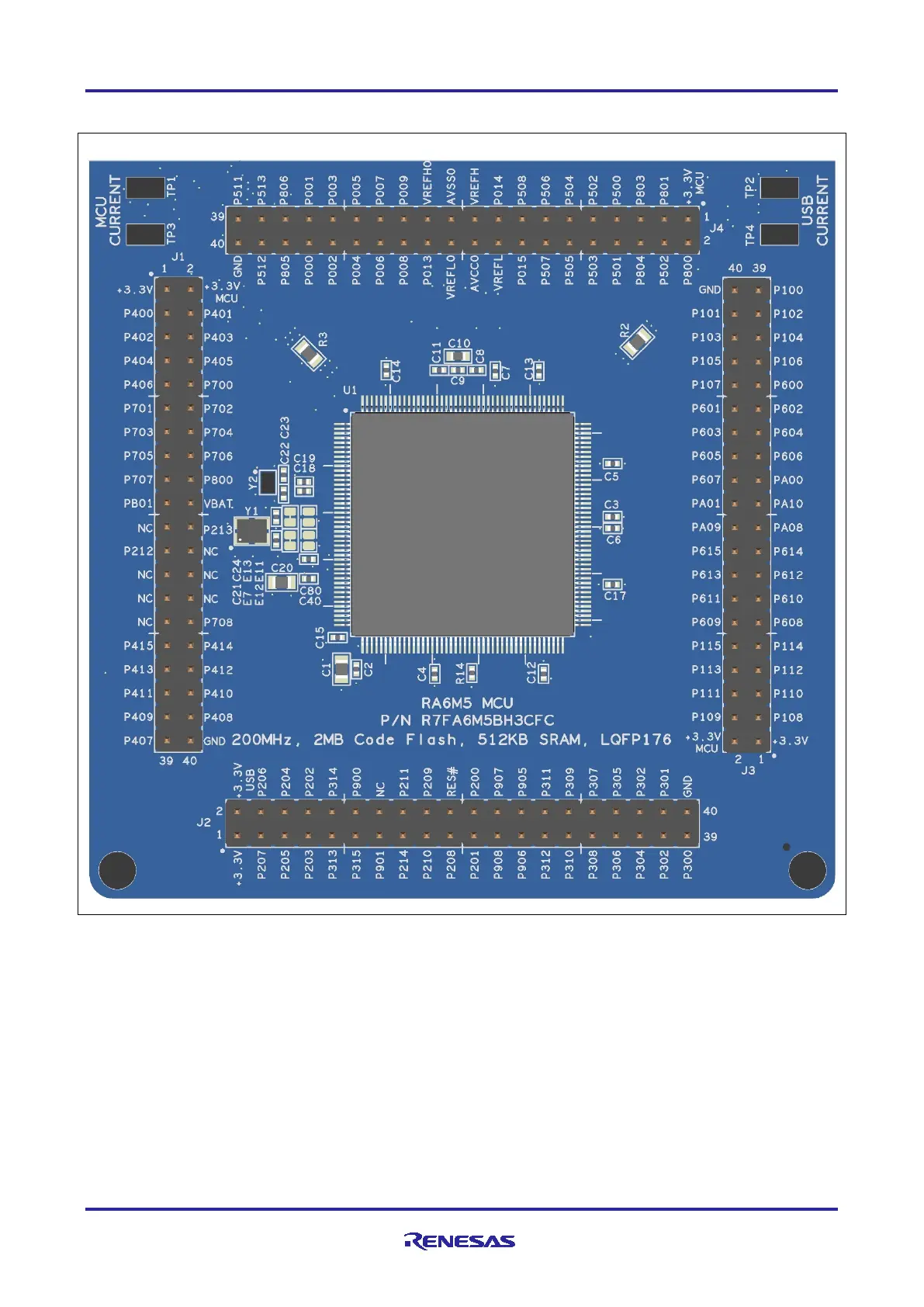

Figure 26. Native Pin Access Area
7.1 Breakout Pin Headers
The EK-RA6M5 board pin headers, J1, J2, J3 and J4, provide access to all RA MCU interface signals, and to
voltages for all RA MCU power ports. Each header pin is labeled with the voltage or port connected to that
pin. Refer to the RA6M5 MCU Group User’s Manual for details of each port function, and the EK-RA6M5
board schematic for pin header port assignments.
The placement of the breakout pin headers allows for a standard 2.54 mm (0.100”) center breadboard to be
placed on all four pin headers simultaneously. This can be used for prototyping and testing of custom
circuitry for use with the RA6M5 MCU.
