5. System Control and Ecosystem Access Area
The following figure shows the System Control and Ecosystem Access area on the EK-RA6M5 board.
Subsequent sections detail the features and functionality provided in the area.

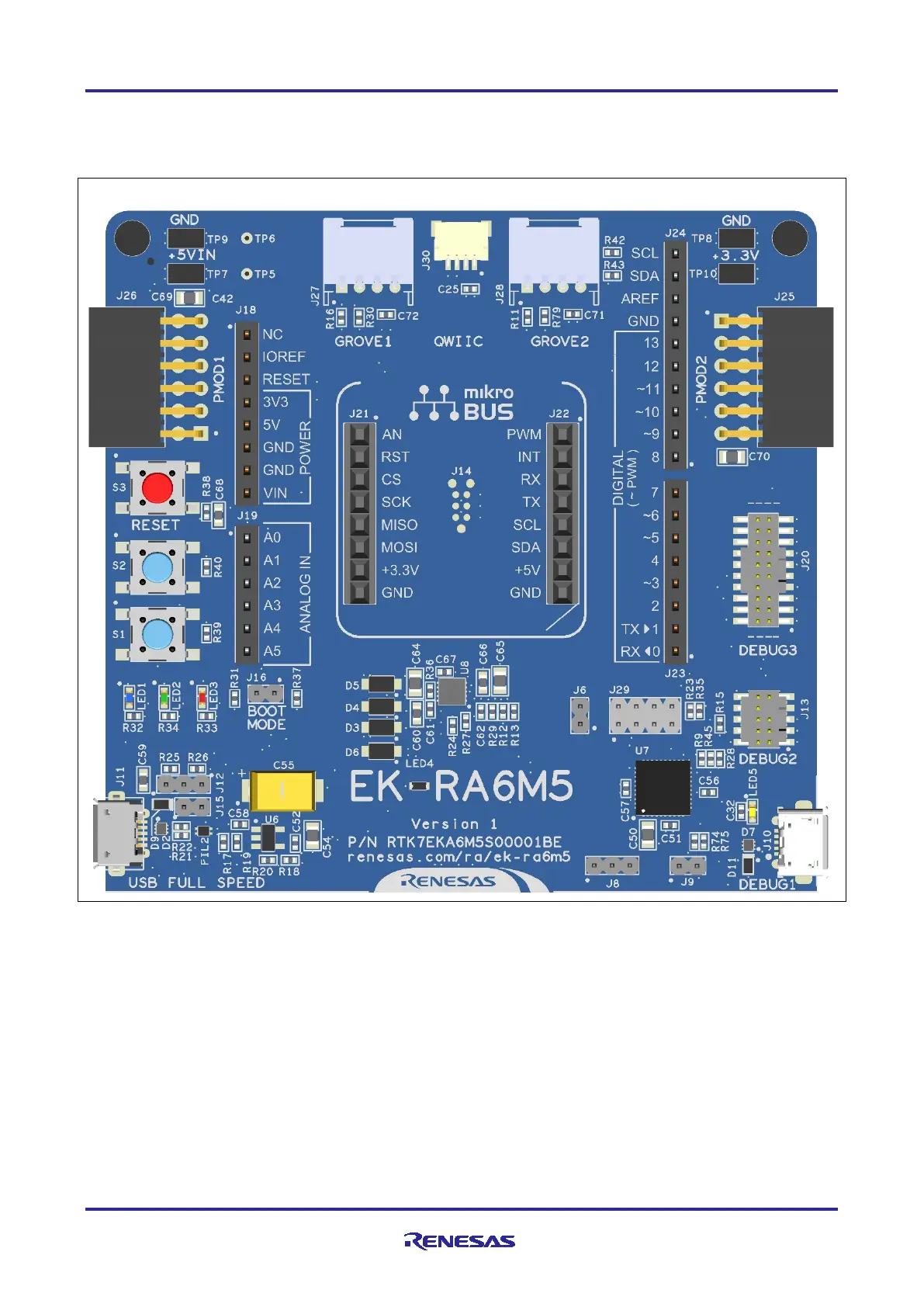

Figure 7. System Control and Ecosystem Access Area
5.1 Power
The EK-RA6M5 kit is designed for +5 V operation. An on-board Low Dropout Regulator (LDO) is used to
convert the 5 V supply to a 3.3 V supply. The 3.3 V supply is used to power the RA MCU and other
peripheral features.
