・DDR2-SDRAM memory

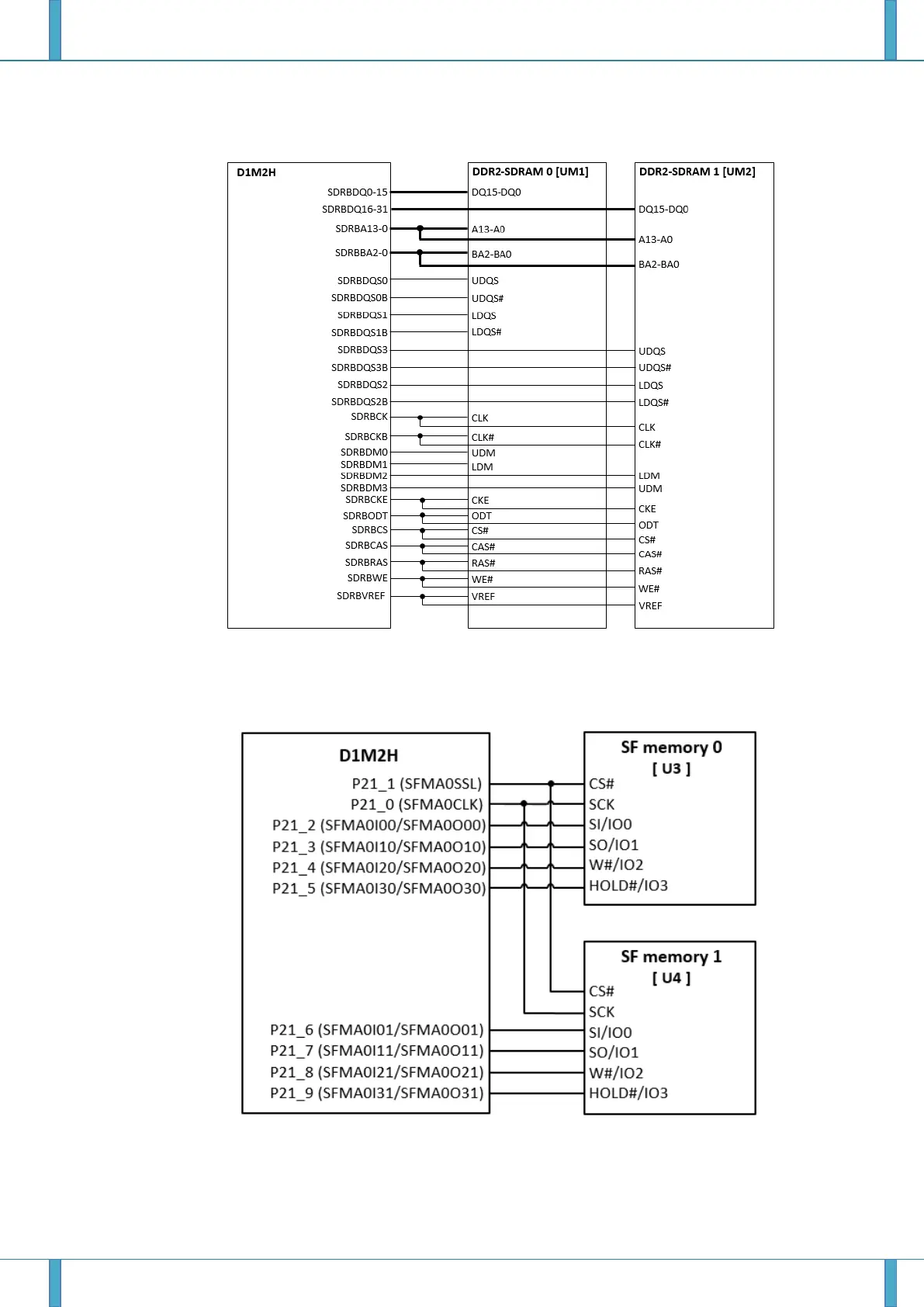

Figure 5-1 DDR2-SDRAM memory block diagram
・Serial Flash Memory
Figure 5-2 Serial Flash memory block diagram
