7 Socket
This chapter lists all connectors of the D1M2H adapter board. There are mainly three groups of connectors.
7.1 Overview
Adapter boards of MCU block cosists of below components.
・ IC socket
・ Test pin area and external connectors
・ Main board connectors
D1x series have several package variant, therefore the IC socket depends upon the package variant.
7.2 RH850/D1M2H adapter board structure

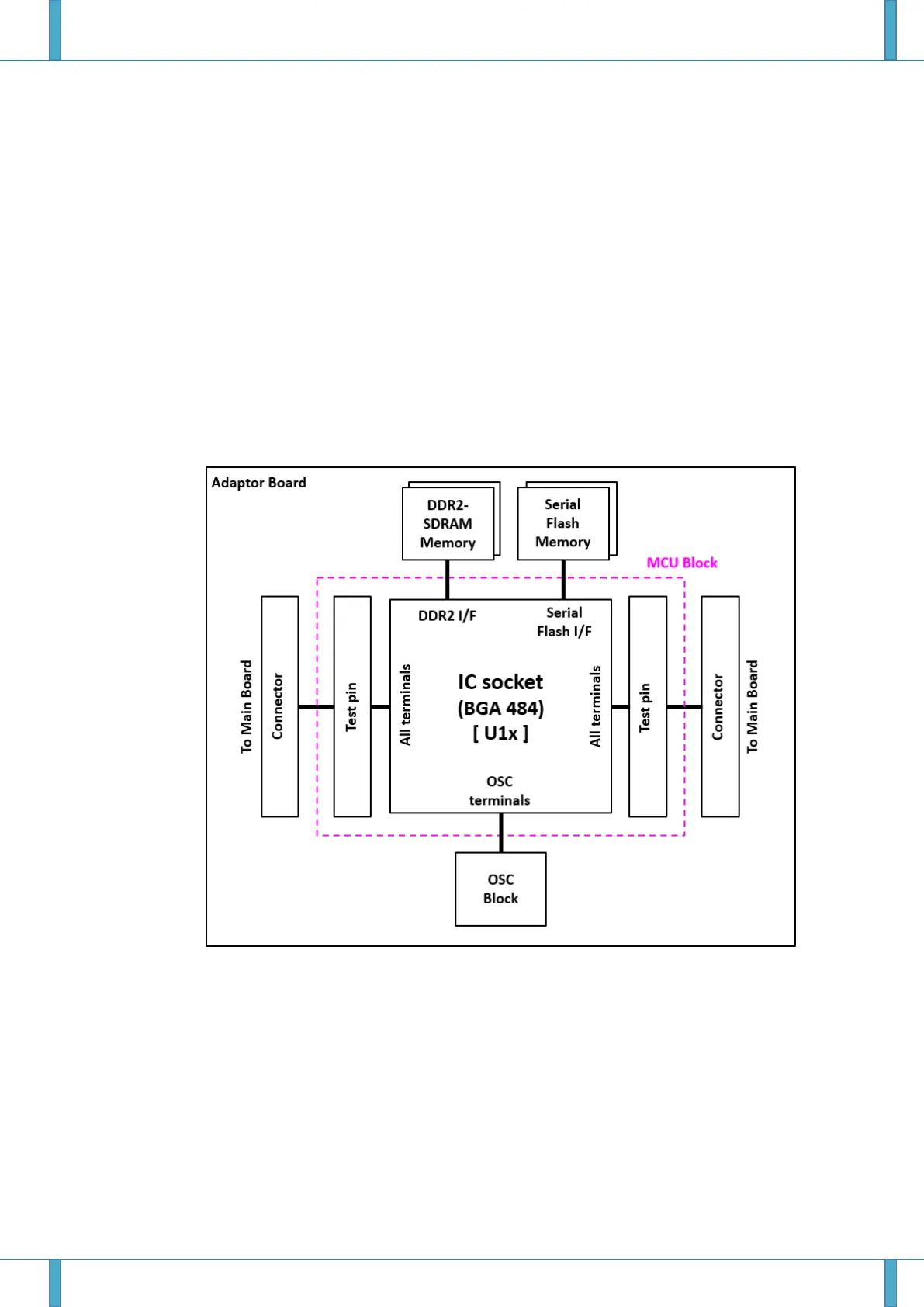

Figure 7-1: Block diagram of the MCU connections on the Adapter board
