7.3 Mounting socket
This board will be fitted with one of the socket types as shown below.
Table 7-1: IC socket Option 1 (For the BGA484 Adaptor Board)
Manufacturer
Product name
Note
TOKYO ELETECH CORP.
BSSOCKET484Z2627RE21N
BGA to Pin adapter. To be soldered.
BSSOCKET connects to CSSOCKET or
LSPACK
TOKYO ELETECH CORP.
LSPACK484Z2627RE01
Can be plugged into the BGA to Pin
adapter. Device will be inserted into the
LSPACK
Table 7-2: IC socket Option 2 (For the BGA484 Adaptor Board)
Manufacturer
Product name
Note
IRONWOOD
ELECTRONICS
C9803
BGA to Pin adapter. To be soldered.
This is the board mounted socket
E-TEC
BPW484-1070-26AA55A
Can be plugged into the BGA to Pin
adapter. Device will be inserted into this
socket.
7.4 Connection with the In-Circuit Emulator (ICE)
When using the “IC socket Option 1”, it is possible to connect the ICE to the BSSOCKET.

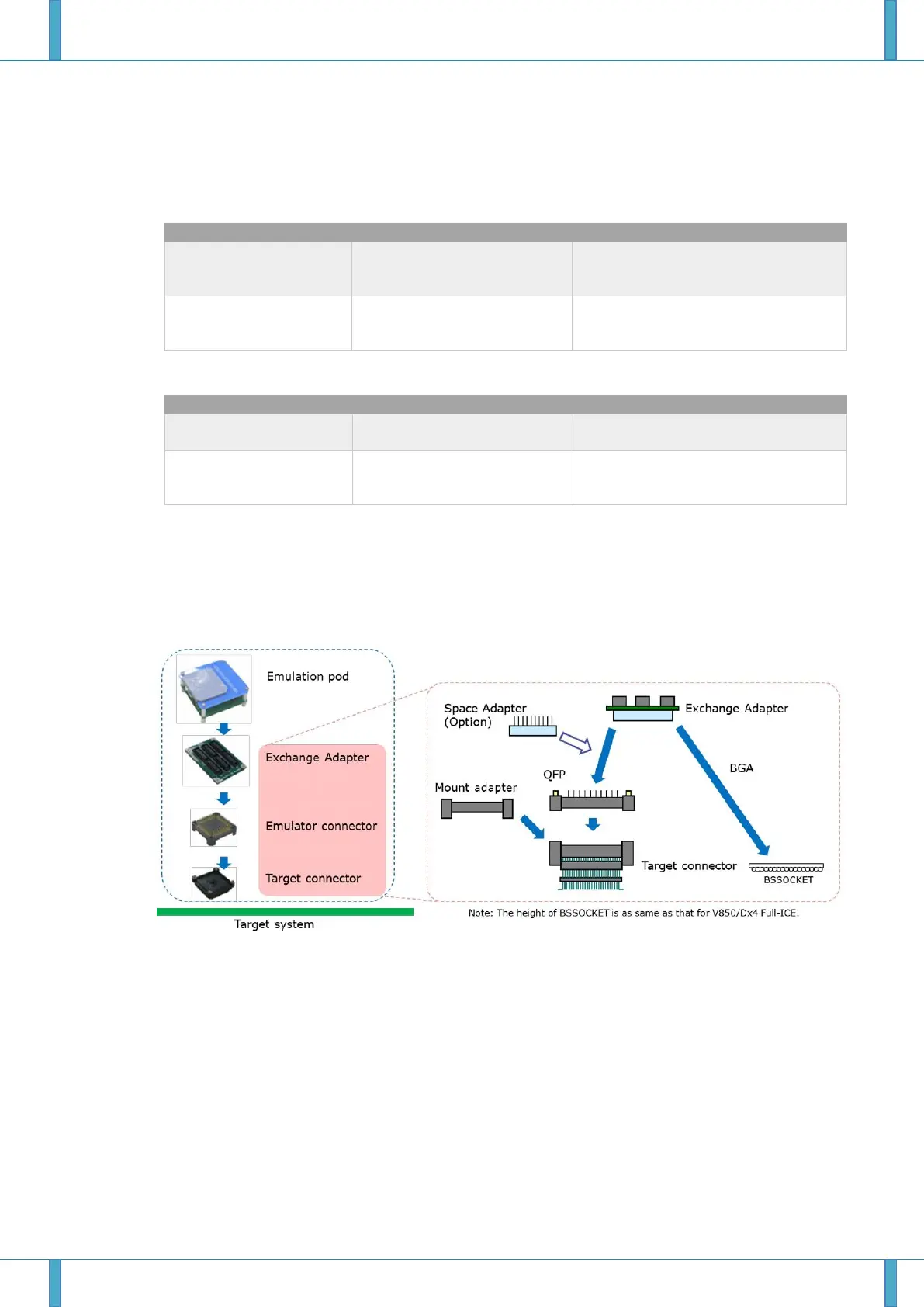

Figure 7-2: Connection with ICE
