Renkforce TB230 - C) Establishing Connections

30

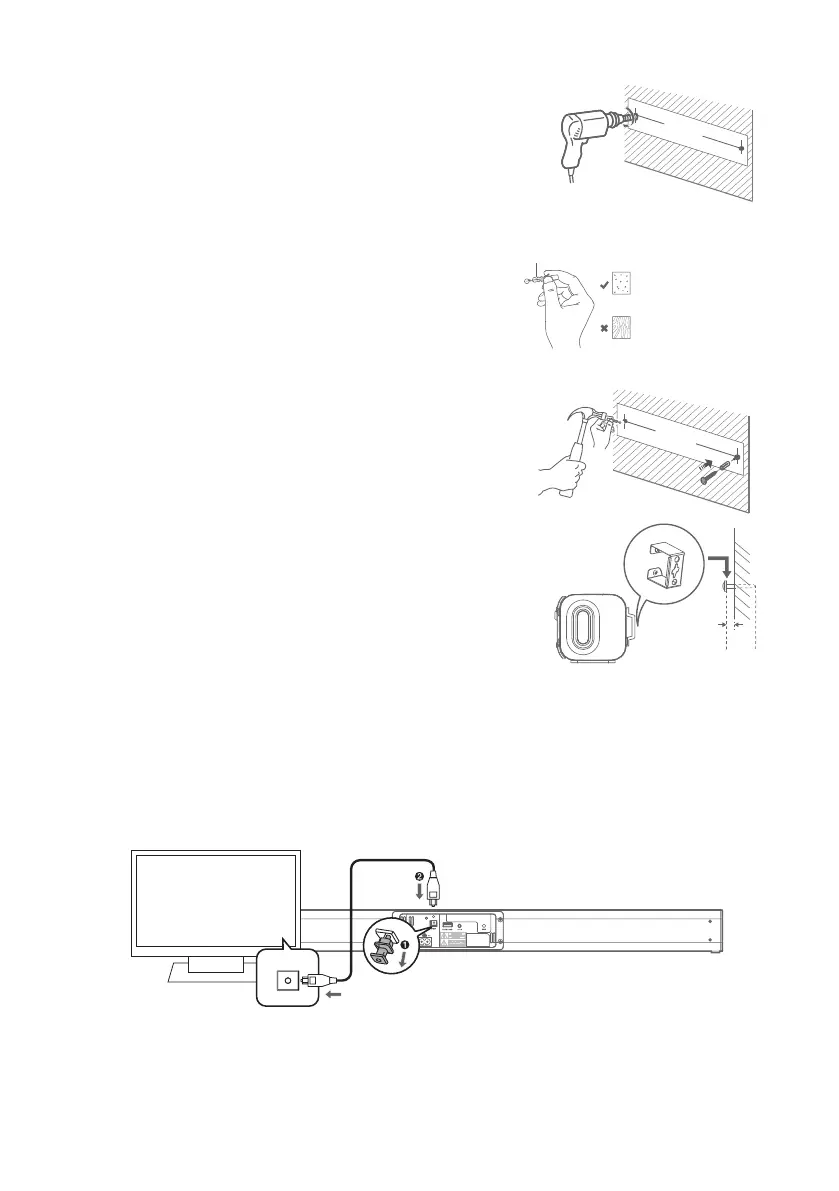

• Mark the boreholes with a distance of 764 mm in between.
Use a water level in order to ensure a horizontal installation.
The borehole diameter depends on the wall structure and
dowels used. The delivery scope contains dowels (Ø 6 mm x
25mm) and screws (Ø 5 mm x 30 mm). Check before installation
whether those are suitable for proper wall mounting.
764 mm
Dowel
Suitable:
solid walls
(e.g. bricks, solid wood)
Not suitable:
lightweight construction walls,
gypsum
• Insert one dowel each into the boreholes. Make sure the wall
is suitable for this kind of installation.
• Use a hammer or similar to fully insert the dowels into the
wall.
5 mm
• Screw the screws into the dowels and leave a distance of
5mm between wall and screw head.
• Attach the TV soundbar to the wall by placing the installed
wall brackets over the two screw heads, making sure it is
attached safely and securely.
c) Establishing connections
OPTICAL socket
Remove the cover from the OPTICAL socket (12). Connect an optical cable (not included) to the output
socket of your TV and to the OPTICAL socket of the TV soundbar.
TV
OPTICAL
