06
15
16
7
17
18
11
9
10
8
13
12
14

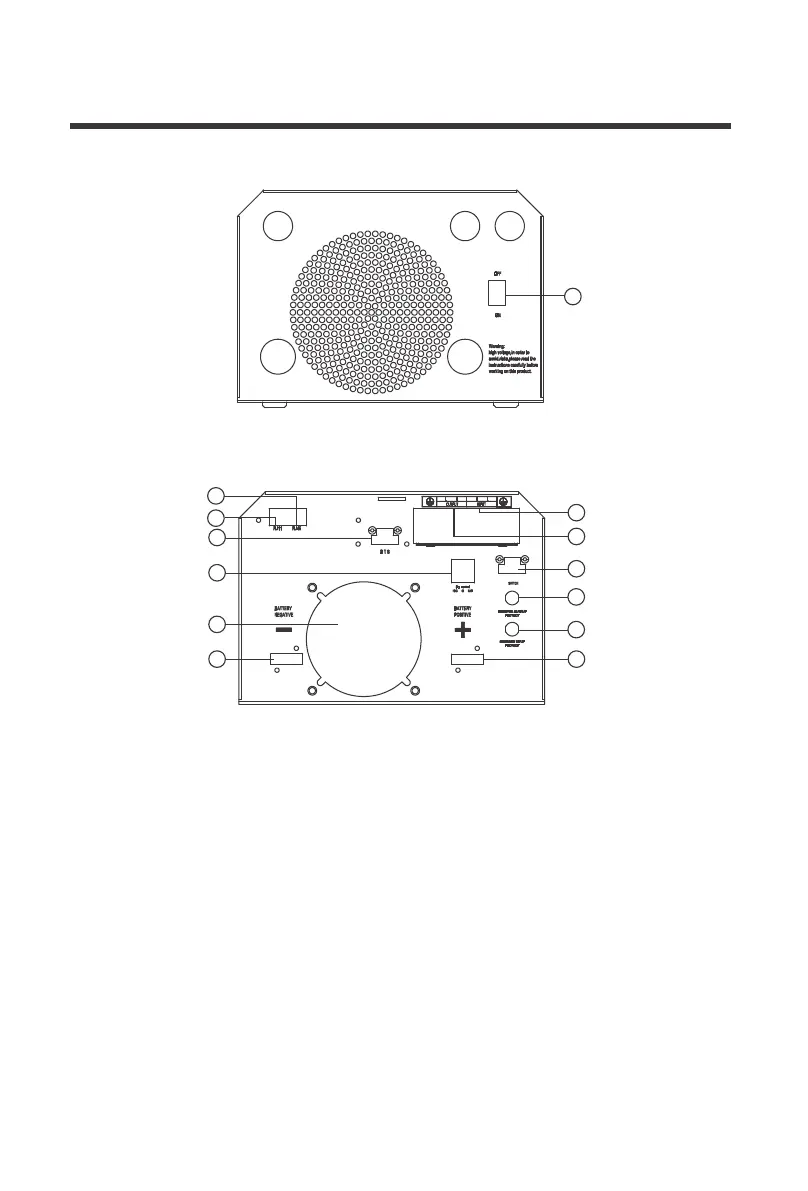

Left View (Uncovered)
6
Left View (Covered)
Main ON/OFF Switch: This is a simple
ON/OFF switch to be able to control the
inverter with the plate in place. The
wiring is connected to the Terminal Block
on the inside of the plate seen in 13.
RJ11 Port: Port for connecting Wired
Remote Control
Dry Contact Relay Port: NC, C, NO ports
for connecting generators and making
use of the Auto-Gen Start feature.
Battery Temperature Sensor Port:
Non-polarity sensitive port that connects
the included temperature sensor to the
PCL unit.
DC Negative Battery Terminal
Rj45 Port for Future Development
AC Output Terminal Block
AC Input Terminal Block
Main Power Switch Terminal Block
Inverter Output Protection Circuit Breaker
Inverter Input Protection Circuit Breaker
DC Positive Battery Terminal
Fans that dissipate heat
6.
7.
8.
9.
12.
11.
10.
13.
14.
15.
16.
17.
18.

Other manuals for Renogy 2000W

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Renogy 2000W and is the answer not in the manual?

Renogy 2000W Specifications

General IconGeneral
Continuous Power2000W
Surge Power4000W
Input Voltage12V DC
Output Voltage120V AC
Output WaveformPure Sine Wave
Output Frequency60Hz
THD<3%
Operating Temperature Range-4°F to 104°F (-20°C to 40°C)
ProtectionOverload, Over Temperature, Short Circuit
Efficiency90%
USB Port5V/2.1A
Under Voltage Protection10V DC
