HYD 3K~6K-EPUser manual
Copyright © Shenzhen SOFARSOLAR Co., Ltd。
- 21 -
inverter to protect its shell.
3.7. Installing HYD 3K~6K-EP
Step 1
Determine the positions for drilling holes, ensure the hole positions are
level, then mark the hole positions using a marker pen, use the hammer drill to drill
holes on the wall(ApertureΦ10 mm).
When drilling, keep the impact drill
perpendicular to the wa
ll and drill slightly deeper than the length of the expansion
pipe. After drilling, please check whether the hole position is suitable with the back
plate. If the error is too large, please reposition the hole.
Step 2 Slowly hammer the expansion screw into
the drilled hole.
Step 3
Position the back plate well, place the shrapnel and flat pad, and fix the
back plate with hexagon nut.
Step 4
Hang the inverter on the back plate and lock the inverter and the back
plate with M6 hex screw.
Step 5 You can secure
the inverter to the rear panel and protect if from
stealing by installing an anti-theft lock (this action is optional).

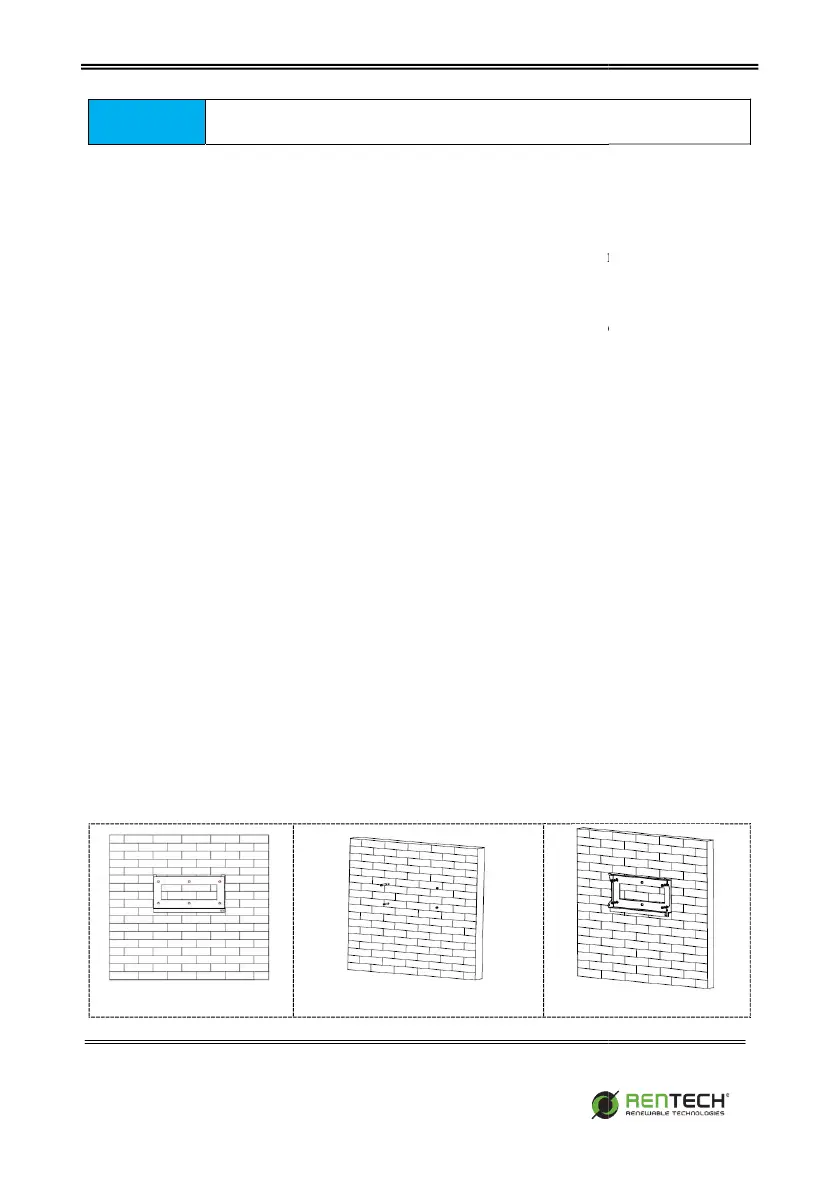

Fig. 3-5 Installing HYD 3K~6K-EP
