4.5. Load connection
Procedure:
Step1 Select appropriate cables according to Table4-
3, Remove the insulation
layer of the load
output cable using a wire stripper according to the figure shown
below: A:15~25mm B:6~8mm.
Step 2

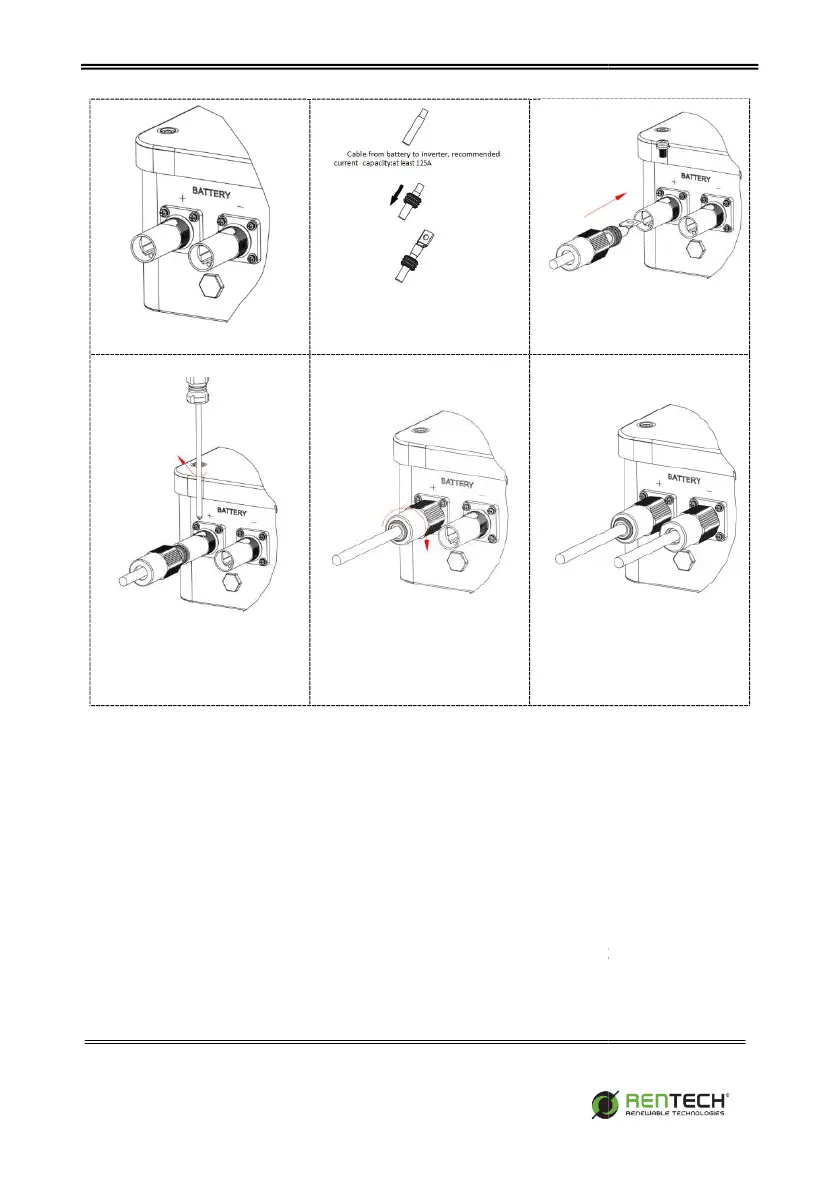

Disassemble the load connector according to the figure shown below:
insert the load output cable (with its insulation layer stripped according to step 1)
through the waterproof locking cable gland .
③
⑥
3, Remove the insulation
output cable using a wire stripper according to the figure shown
Disassemble the load connector according to the figure shown below:
insert the load output cable (with its insulation layer stripped according to step 1)
