Reolink Argus 2 User Manual

Reolink Wireless Battery-powered Camera
10
Charge the Battery
Reolink Argus 2/Argus Pro has its rechargeable battery which is removable, and
there is a micro USB port for charging on the back of the battery.
The charger is a USB adapter (DC 9/5 Volts, not included in the box) which is
commonly used for smartphones. A micro USB cable is included in the box.
Here we’ll guide you to charge Reolink Argus 2/Argus Pro by using the following
three different methods.

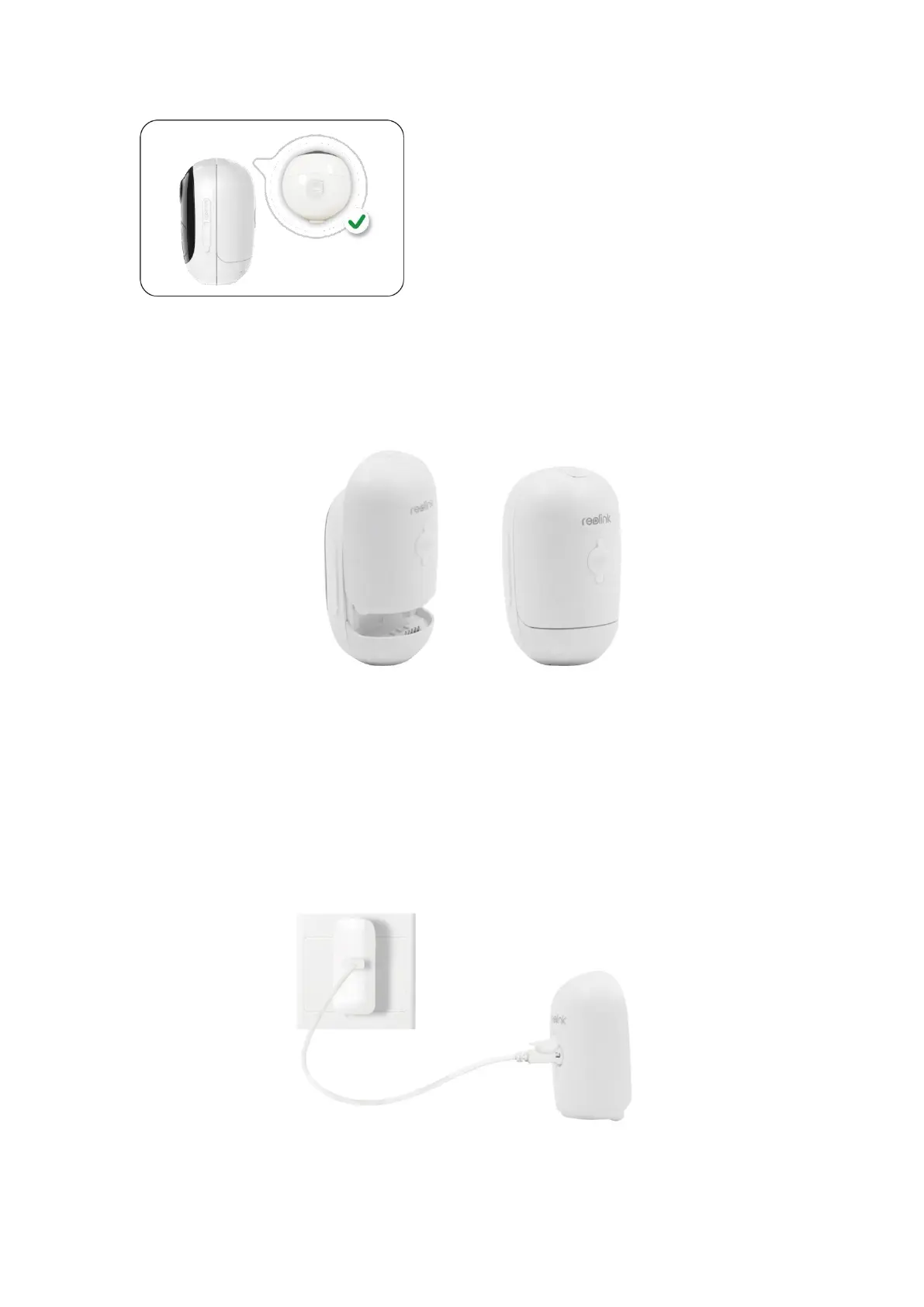

Method 1: Pull out the battery and open the charging port, then connect the
battery with the USB adapter via a USB cable and plug it into the electrical outlet.
To remove the battery from
the camera, please pull the
button on the top of the
battery and slide it upwards.

Reolink Argus 2 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Form factor	-
Weatherproof	Yes
Mounting type	Desk/Wall
Product color	Black, White
Protection features	Freeze resistant, Heat resistant, Waterproof
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/2.8 \
Compatible memory cards	MicroSD (TransFlash)
Night vision distance	10 m
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Battery life	0.5 year(s)
Battery voltage	3.63 V
Battery capacity	5200 mAh
Power source type	Battery
Battery technology	Lithium
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Mobile operating systems supported	Android, iOS
Number of cameras	1
Detection angle	120 °
Detection distance	9 m
Security algorithms	WEP, WPA-PSK, WPA2-PSK

Weight and Dimensions

Depth	59 mm
Width	65 mm
Height	119 mm
Weight	350 g
