Reolink Wireless Camera
User Manual
5

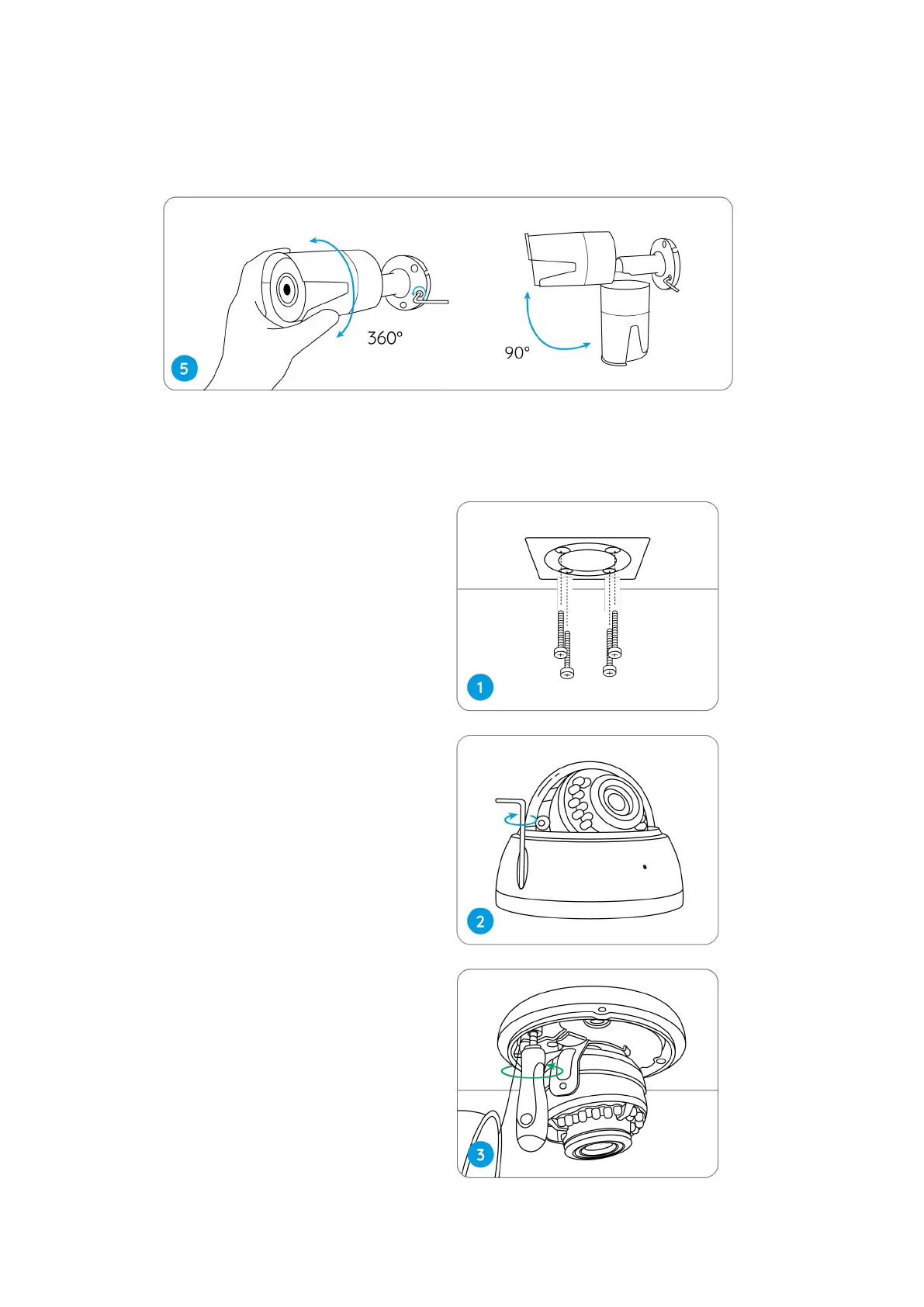

NOTE: If your camera has another mount without the adjusting knob, please
loosen the adjusting screw with the provided hex key and turn the camera as
shown below to adjust the angle.
Mount Dome Cameras
Put the mounting template
on the ceiling and drill holes at
the indicated locations.
Screw the dome cover off with
the mounting wrench.
Screw the camera to the ceiling.

Table of Contents

Other manuals for Reolink E1

Preview: Operational Instruction
Operational Instruction39 pages
Preview: Quick Start Guide
Quick Start Guide10 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Reolink E1 and is the answer not in the manual?

Reolink E1 Specifications

General IconGeneral
Pan & Tilt355° Pan, 50° Tilt
AudioTwo-way audio
StoragemicroSD card slot (up to 128GB)
Image Sensor1/2.7" CMOS Sensor
Wireless StandardIEEE 802.11b/g/n
Wireless SecurityWPA-PSK/WPA2-PSK
EthernetNo
Operating Temperature-10°C to 55°C (14°F to 131°F)
Weight200g
Motion DetectionYes
Resolution2304x1296 (3MP)
Night Vision40 ft (12m)
ConnectivityWi-Fi
PowerDC 5V/1A
IR Distance40 ft (12m)
Day/Night ModeAuto-switching
Viewing AngleHorizontal: 87.5°, Vertical: 47°, Diagonal: 100°
