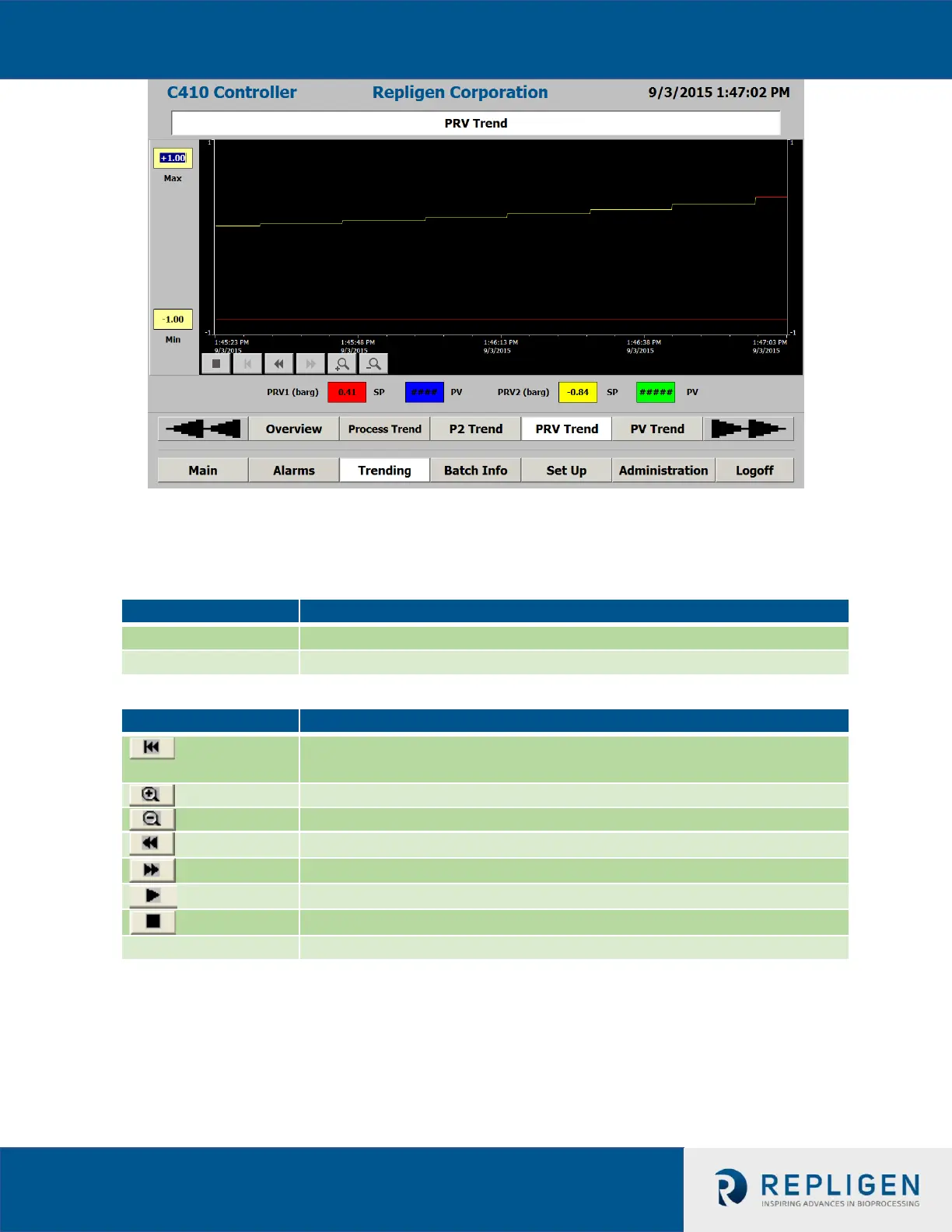

These screens monitor, in real time, the specific analog signal. Trend buttons select trend to
display. All screens have the following screen control options:
Field
Description
Max
Enter maximum value for the chart Y Axis
Min
Enter minimum value for the chart Y Axis
Button
Description
Scrolls back to the beginning of the trend recording. The start values,
with which the trend recording started, are displayed
Zooms into the displayed time section
Zooms out of the displayed time section
Scrolls back one display width
Scrolls forward one display width
Starts or continues trend recording
Stops trend recording
Primary Screens
All Primary Screen Buttons are displayed to navigate to those screens
