ATF System with C410:V4B Controller User Guide
27

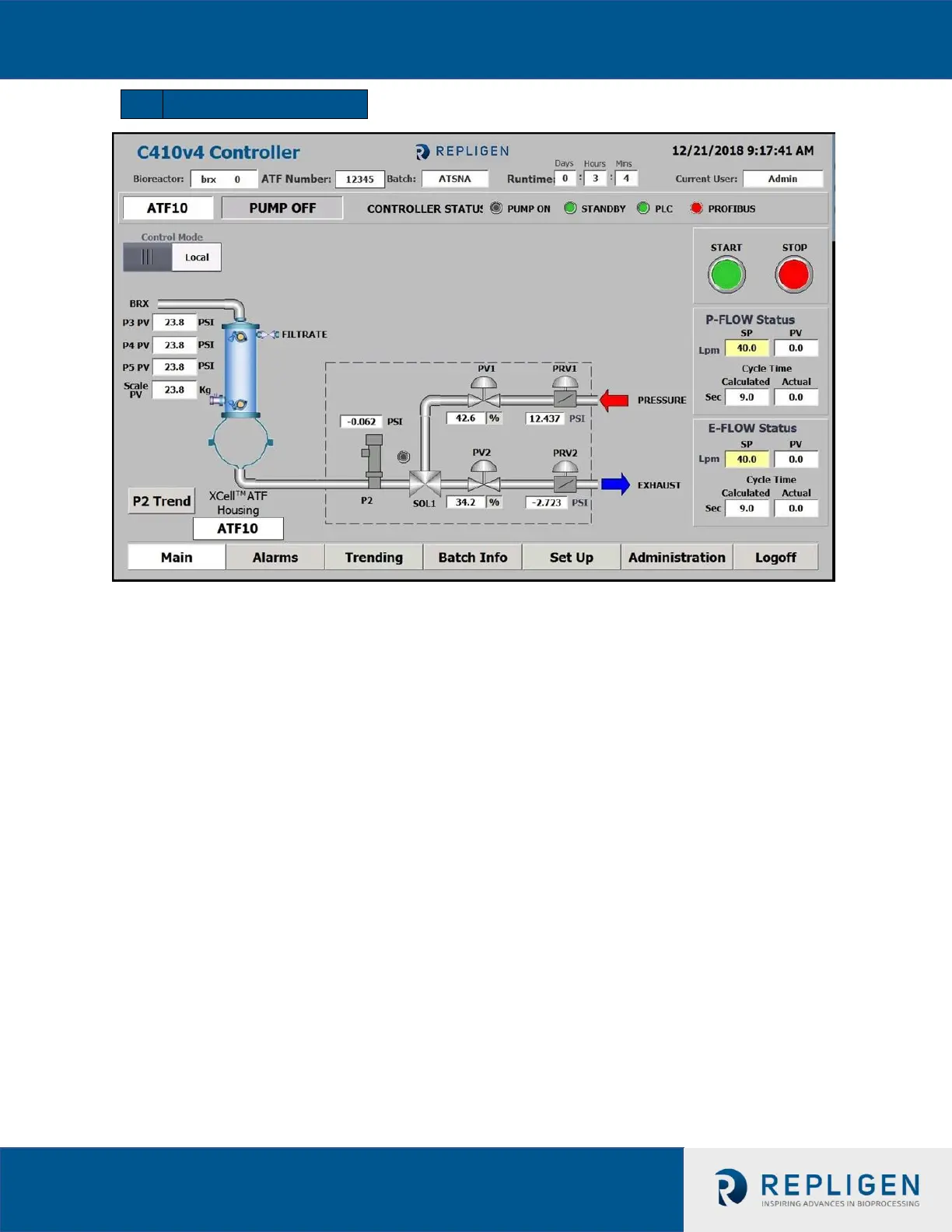

The Main screen provides an overview of the XCell™ ATF process. It displays a
schematic/animation for pneumatic process, a diaphragm movement /cycle, valve transition
between pressure and exhaust cycles and flow direction. From the Main screen, an operator can:
1. Monitor and control XCell™ ATF System processes. In the Main screen and all subsequent
screens, all data fields with a white background are for display only. The operator, based
upon security levels, can change data fields with a beige background.
2. Start/Stop Diaphragm Pump
a. When starting the Diaphragm Pump, a dialog box will appear to enable the user to start
with current settings, start with default settings or cancel and return to the main screen
b. When stopping the Diaphragm Pump, a dialog box will appear that enables the user to
confirm the stop command, or to cancel and return to the main screen.
3. Access other screens based upon password security levels
4. Observe P2 trending. A P2 Trend button hides /unhides this screen.
5. Observe an animated Diaphragm Pump showing pressurization (inflation) and exhaust
(deflation) cycles of the Diaphragm Pump.
6. Monitor Overtime condition- displayed in FLOW status sub screens, by change of actual
cycle time field to red
7. Monitor Overflow condition- displayed in FLOW status sub screens, by change of actual
cycle time field to orange
B.
MAIN
