From the Set Up Screen, an Engineer/Administrator can make entries in the following:
• Basic Set Up Screen
• Help Guide
• Advance Set Up Screen
• Exit to Primary Screens
• Calibration Screen
• Navigate to the following Secondary
screens
From the Basic Set-Up Screen, an Engineer/Administrator can:
1. Set initial Controller Set Up
2. Change ‘Hi Hi’ and ‘Lo Lo’ Alarm set points
3. Change Process Parameters
4. Access other screens based upon password security levels

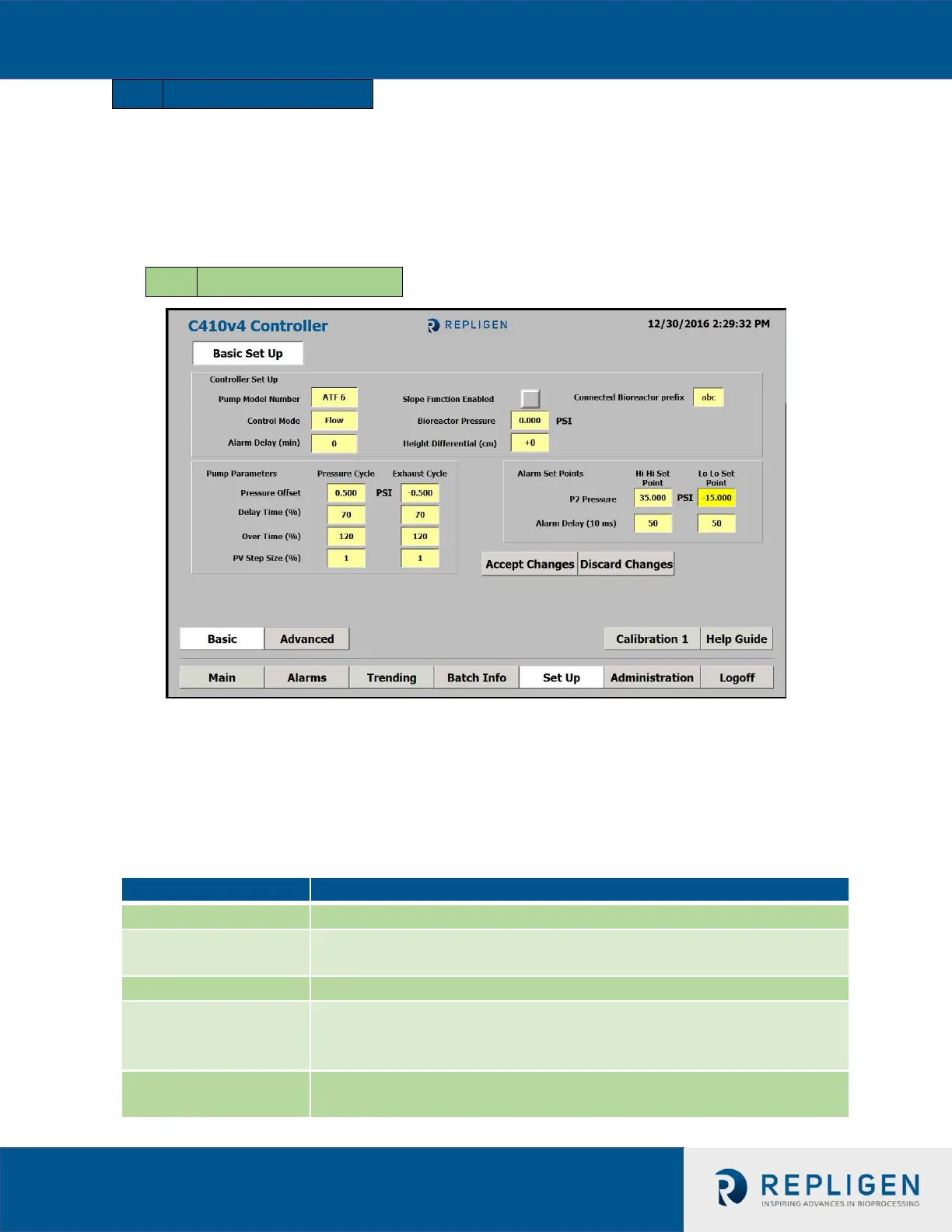

The Basic Set-Up screen will display the parameters in the following tables:
Field
Description
Controller Set Up
Groups the following fields:
Pump Model No
Press to select Pump Model No XCell™ ATF 4, 4MC, 6, 10lgcy, 10.
These settings apply to both stainless steel and single-use systems.
Control Mode
Press to select Control Set Point units (FLOW or TIME)
Alarm Delay(min)
The amount of time in minutes the controller will stay in warning
condition before switching to alarm condition. (If 0 is entered
system will remain in warning condition.)
Slope Function Enable
Integrates P2 slope at Delay Time to extrapolate Cycle Switch
Pressure.
C.
SET UP
C.1
BASIC SET UP
