6 Channel overview
6.1 Display channels
Note:
The displayed values and adjustment channels depend on which options
and functions have been selected. Only values and adjustment channels
available for the individual settings selected will appear in the menu.

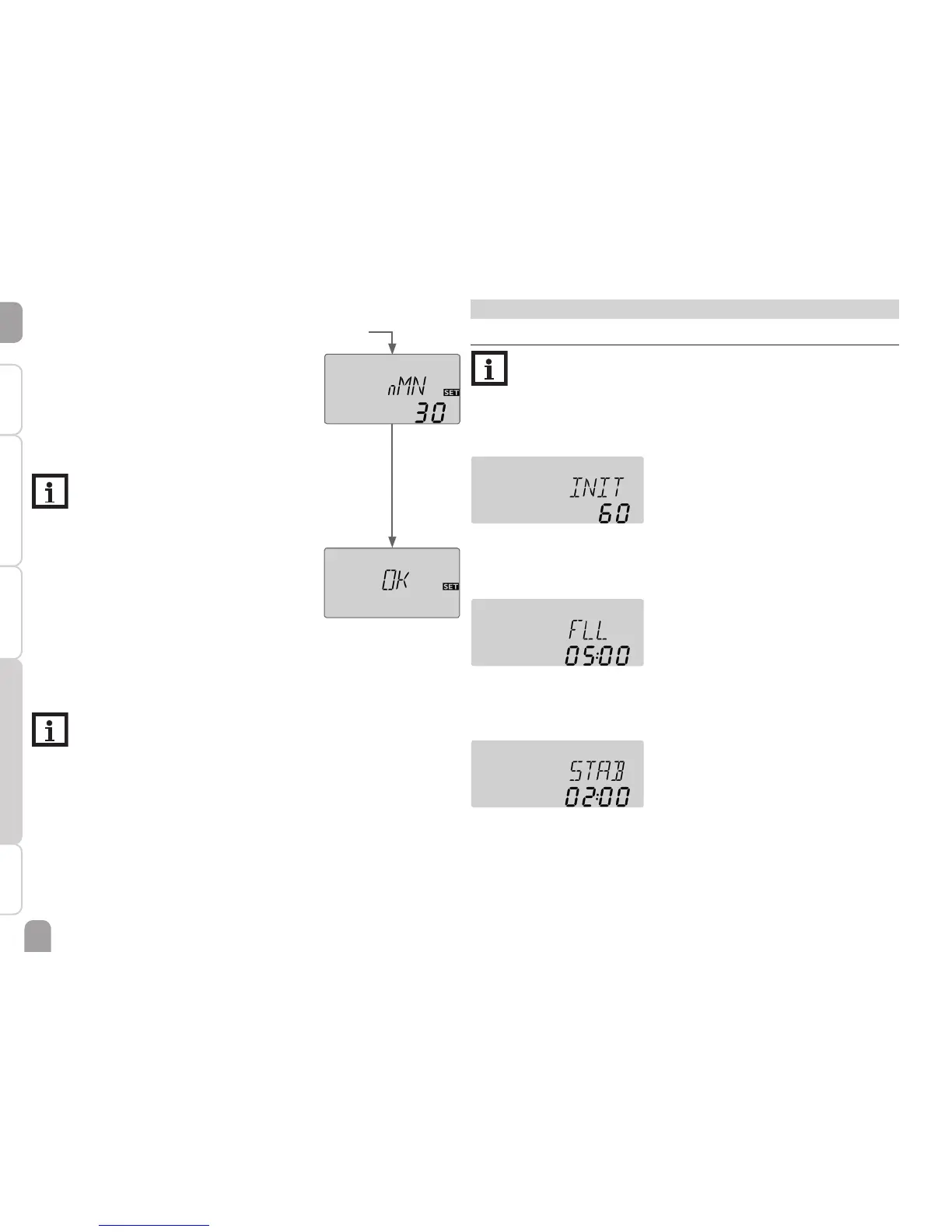

Display of drainback time periods
Initialisation
INIT
ODB initialisation active
Indicates the time adjusted in tDTO, running backwards.
Filling time
FLL
ODB filling time active
Indicates the time adjusted in tFLL, running backwards.
Stabilisation
STAB
ODB stabilisation in progress
Indicates the time adjusted in tSTB, running backwards.
4. Minimum speed
Î Adjust the minimum speed for the corresponding
pump.
nMN
Speed control
Adjustment range: 30 … 100 %
Factory setting: 30
Note:
The pump speed must be set to 100 % when
auxiliary relays or valves are connected.
Confirmation
Completing the commissioning menu
After the last channel of the commissioning menu has
been adjusted and confirmed, the controller asks for
confirmation of the adjustments.
Î In order to confirm the adjustments made in the
commissioning menu, press button 3.
The controller is then ready for operation and nor-
mally the factory settings will give close to optimum
operation.
Note:
The adjustments carried out during commis-
sioning can be changed anytime in the cor-
responding adjustment channel. Additional
functions and options can also be activated or
deactivated (see page 14).
