Resol DeltaSol BS/2 User Manual

4
en
1 Overview
• Drainback option
• Heat quantity measurement
• Commissioning menu
• Unit °F and °C selectable
• HE pump control via adapter
Technical data
Inputs: 4 Pt1000 temperature sensors
Outputs: 1 semiconductor relay
Switching capacity: 1 (1) A 240 V~ (semiconductor relay)
Total switching capacity: 1 A 240 V~
Power supply: 100 … 240 V~ (50 … 60 Hz)
Supply connection: type Y attachment
Standby: 0.45 W
Mode of operation: type 1.C.Y action
Rated impulse voltage: 2.5 KV
Data interface: RESOL VBus
®
VBus
®
current supply: 35 mA
Functions: Differential temperature controller with optional add-on system func-
tions. Function control, operating hours counter, heat quantity measurement and
speed control
Housing: plastic, PC-ABS and PMMA
Mounting: wall mounting, also suitable for mounting into patch panels
Indication / Display: System-Monitoring-Display for visualisation of systems,
16-segment and 7-segment display, 8 symbols for indication of system status and
operating control lamp
Operation: 3 push buttons at the front of the housing
Protection type: IP 20 / EN 60529
Protection class: II
Ambient temperature: 0 … 40 °C
Degree of pollution: 2

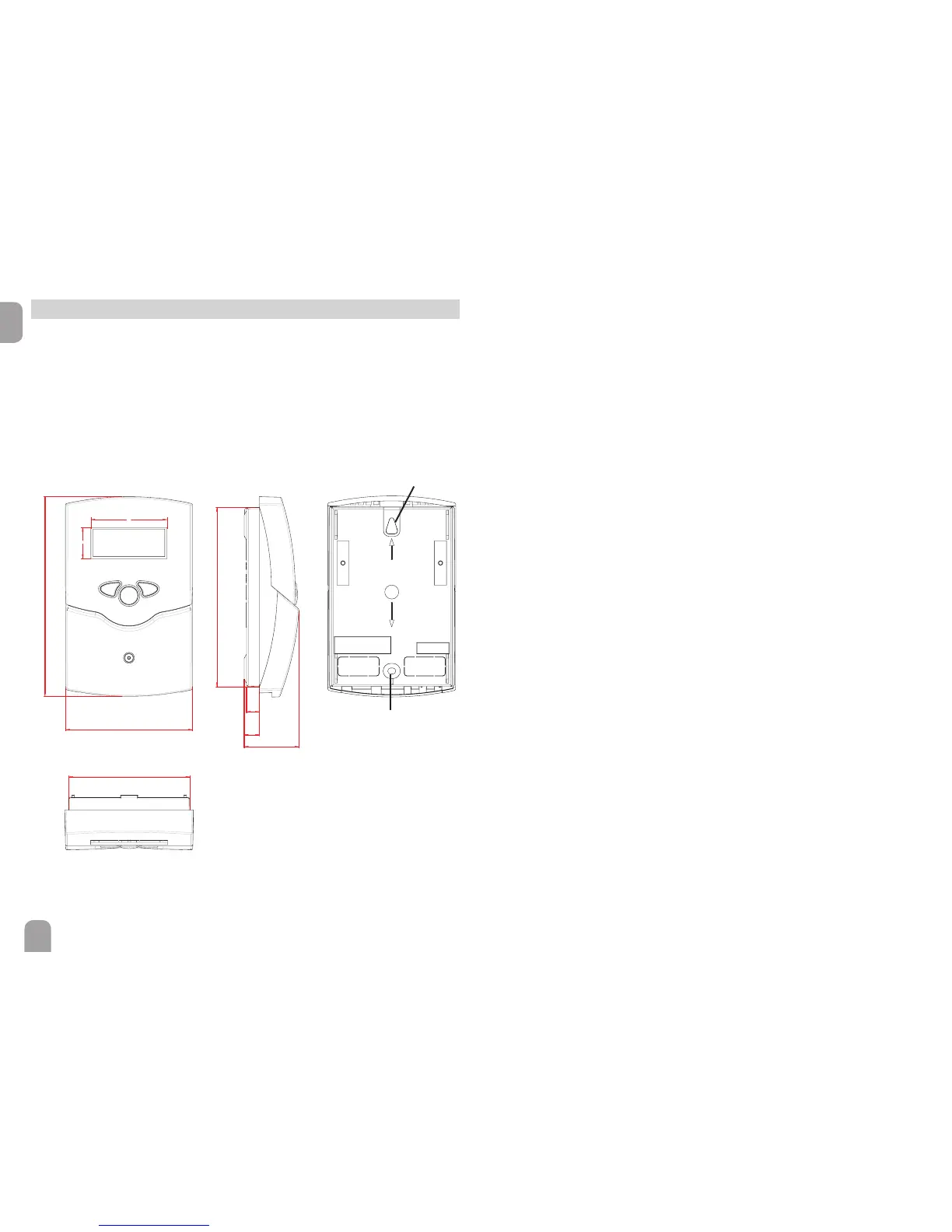

Dimensions: 172 x 110 x 49 mm
104 mm
4.1“
130 mm
5.1“
2.6"
66 mm
4.3"
110 mm
6.8"
172 mm
1.1"
28 mm
0.4" / 11 mm
1.9" / 47 mm
0.5" / 13 mm
6.1"
155 mm
Upper fastening point
Lower fastening point
