| 12
3.1.14 Tube collector special function
If the controller measures an increase of 4 °Ra compared
to the collector temperature tankd at last, the solar
pump is switched-on to 100 % for about 30 seconds.
After expiration of the solar pump runtime the current
collector temperature is tankd as new reference value. If
the measured temperature (new reference value) is again
exceeded by 4 °Ra, the solar pump again switches-on for 30
seconds. If the switch-on difference between collector and
tank is again exceeded during runtime of the solar pump
or the standstil of the system, the controller automatically
switches over to solar charging.
If the collector temperature drops by 4 °Ra during standstill,
the switch-on value for the special tube collector function
will be recalculated.

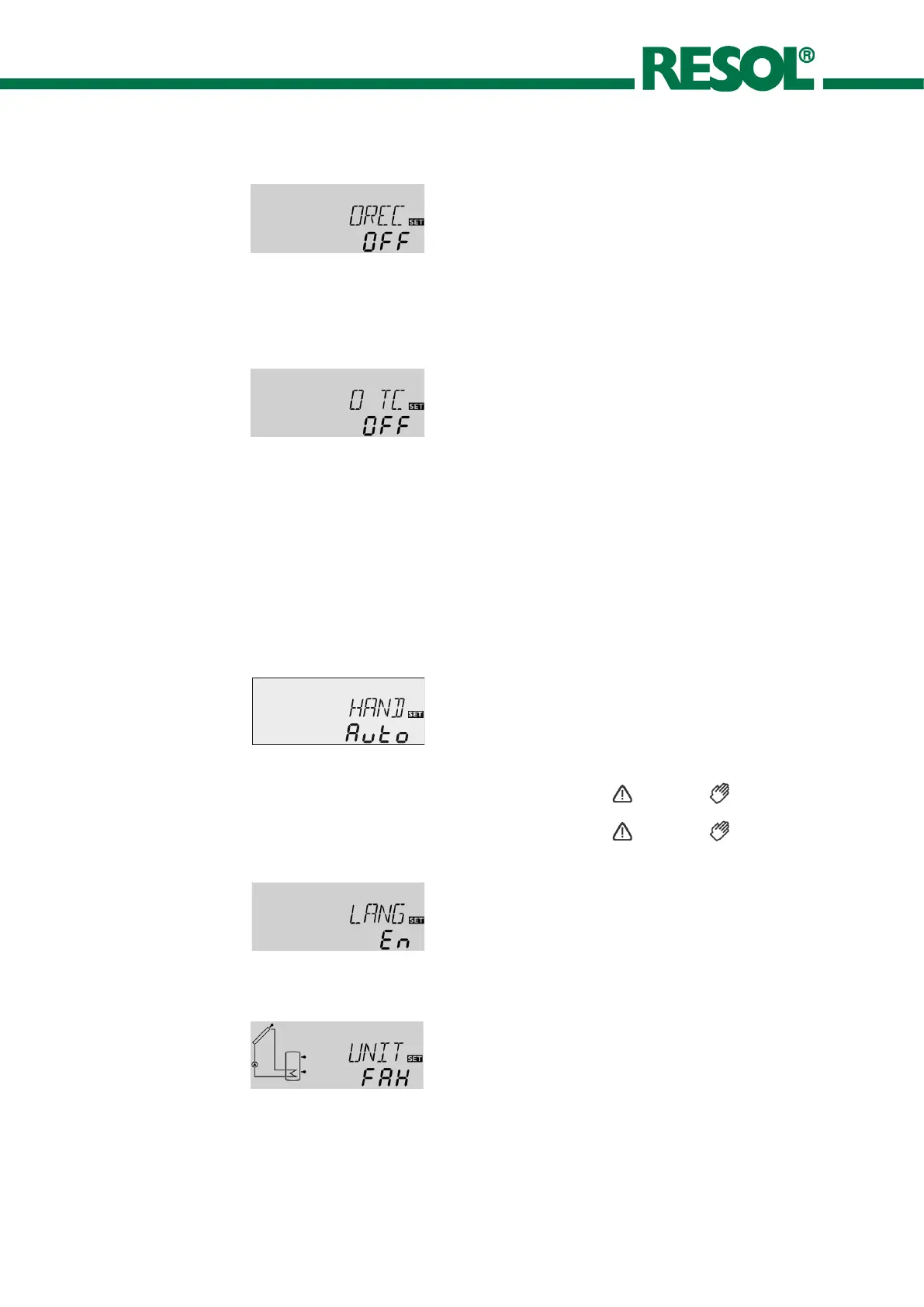

O TC:
Tube collector special
function
Adjustment range:
OFF ... ON
Factory setting: OFF
3.1.13 Recooling function
If the adjustem maximum tank temperature (S MX)
is reached, the solar pump remains activated in order
to avoid an overheating of the collector. The tank
temperature might continue to increase but only up to
203 °F (emergency shutdown of the tank).
In the evening the solar system continues running until
the tank is cooled down to the adjusted maximum tank
temperature via collector and pipes.
OREC:
option recooling
adjustment range
OFF ... ON
Factory setting: OFF
For control and service work the operating mode of the
controller can be manually adjusted by selecting the adjust-
ment value HAND, in which the following adjustments can
be made:
3.1.15 Operating mode
• HAND
Operating mode
OFF : relay off (flashing) +
AUTO : relay in automatic operation
ON : relay on (flashing) +
HAND:
Operating mode
Adjustment range:
OFF, AUTO, ON
Factory setting: AUTO
3.1.16 Language
The menu language can be adjusted in this channel.
• dE : German
• En : English
• It : Italiano
• Fr : French
LANG:
Adjustment of language
Adjustment range: dE, En, It
Factory setting: En
3.1.17 Unit
The menu unit can be adjusted:
• °FAH
• °CEL
UNIT:
Adjustment of unit
Adjustment range: FAH, °C
Factory setting: FAH

Resol DeltaSol BS Specifications

General

Type	Solar Thermal Controller
Number of Inputs	4
Number of Outputs	2
Outputs	2 relay outputs
Enclosure Protection	IP20
Temperature Sensor Inputs	4 (Pt1000)
Mounting	Wall-mounted
Power Supply	220 … 240 V~
