DeltaSol
®
BS
© RESOL 06177 deltasol_bs1.monen.indd
5 |
S1
S2
S4 / TRF

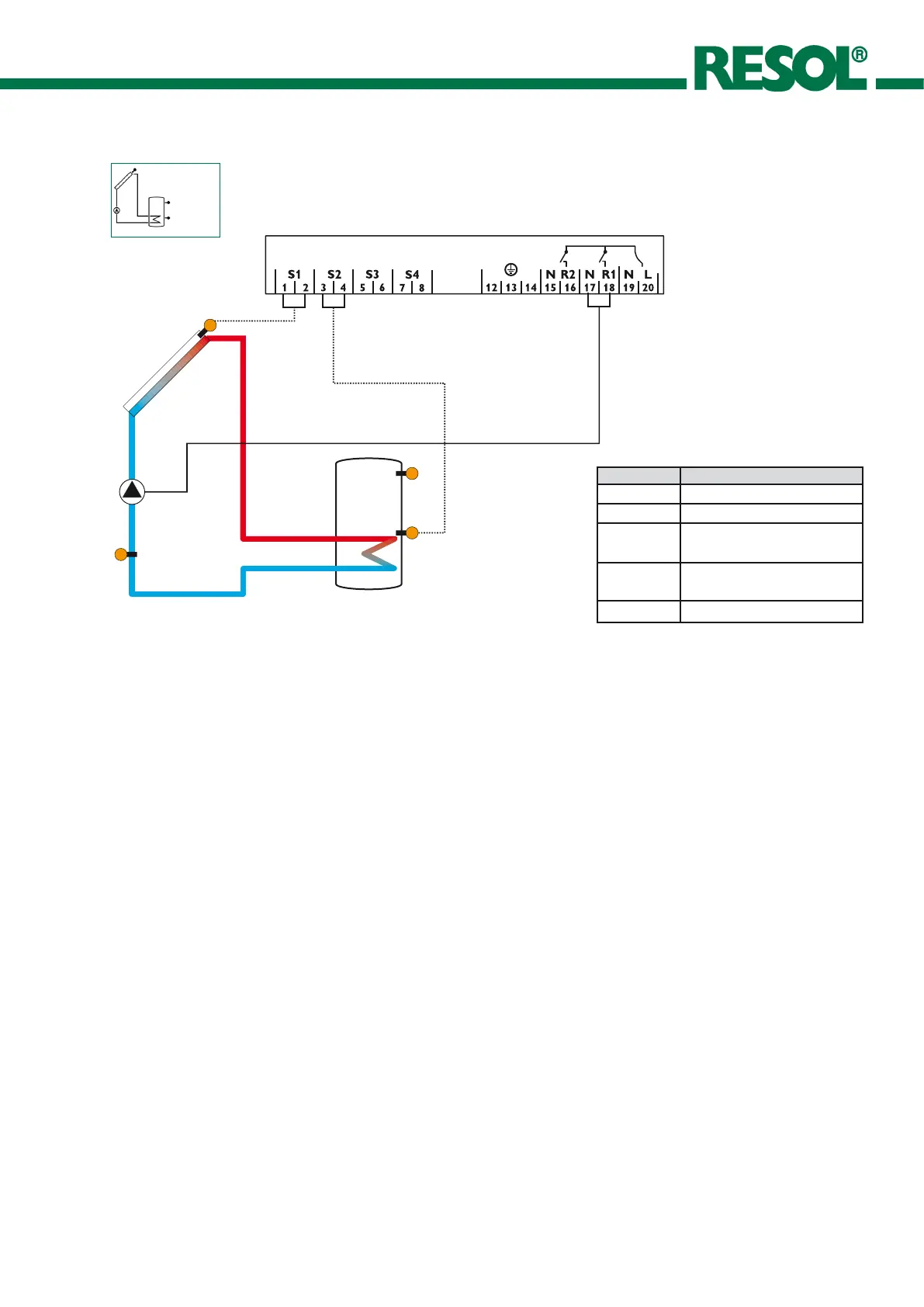

1.2.1 Allocation of clamps for system 1 Standard solar system with 1 tank, 1 pump and 3 sen-
sors. The sensor S4 / TRF can optionally be used for heat
quantity balancing.
R1
S3
Symbol Specification
S1 Collector sensor
S2 Tank sensor below
S3 Tank sensor at the top
(optionally)
S4 / TRF Sensor for heat quantity
measurement (optionally)
R1 Solar pump
