DeltaSol
®
BS
© RESOL 06177 deltasol_bs1.monen.indd
9 |

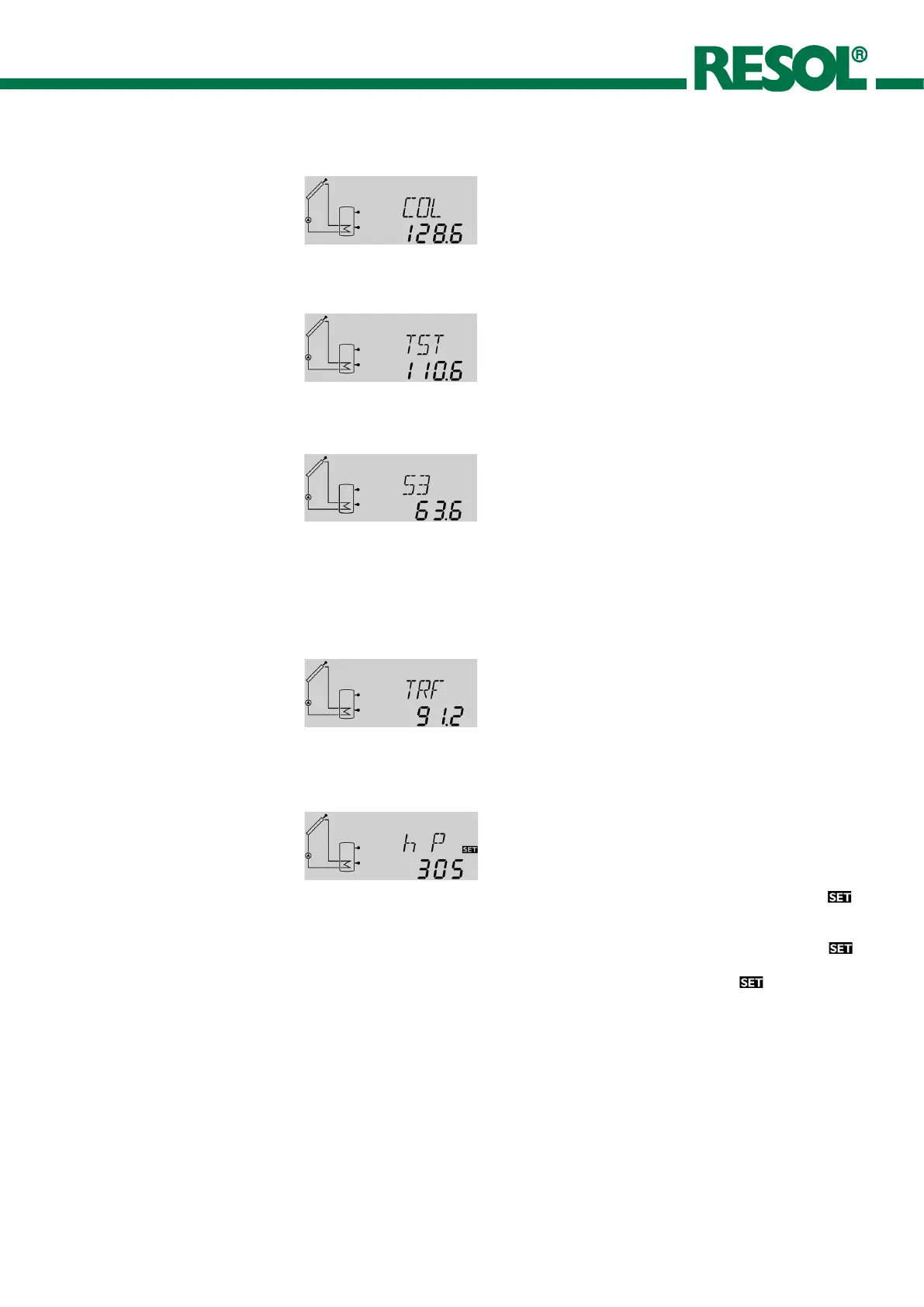

3.1.1 Indicataion of collector temperatures
Shows the current collector temperature.
COL : collector temperature (1-collector-system)
COL:
Collector temperature
display range: -40 ... +482 °F
3.1.2 Indication of tank temperatures
Shows the current tank temperature.
TST : tank temperature (1-tank-system)
TST:
Tank temperatures
Display range: -40 ... +482 °F
3.1.3 Indication of sensor 3 and sensor 4
Shows the current temperature of the corresponding addi-
tional sensor (without control function).
S3 : temperature sensor 3
S4 : temperature sensor 4
Please note:
S3 and S4 are only indicated if the temperature sensors
are connected (shown).
S3, S4:
Sensor temperatures
Display range: -40 ... +482 °F
3.1.4 Indication of other temperatures
Shows the current temperature of the sensor.
TRF : temperature return flow
TRF:
other measured
temperatures
Display range: -40 ... +482 °F
3.1.5 Operating hours counter
h P:
Operating hours counter
Display channel
The operating hours counter adds up the solar operating
hours of the respective relay (h P). Full hours are shown
on the display.
The operating hours added up can be reset. As soon as
one operating hours channel is selected, the symbol in
permanently shown on the display. The button SET (3) must
pressed for approx. 2 seconds in order to get back into
the RESET-mode of the counter. The display-symbol is
flashing and the operating hours will be set to 0. In order to
finish the RESET-procedure, the button must be pressed
in order to confirm.
In order to interrupt the RESET-procedure, no button
should be pressed for about 5 seconds. The controller re-
turns automatically into the indicaton mode.
