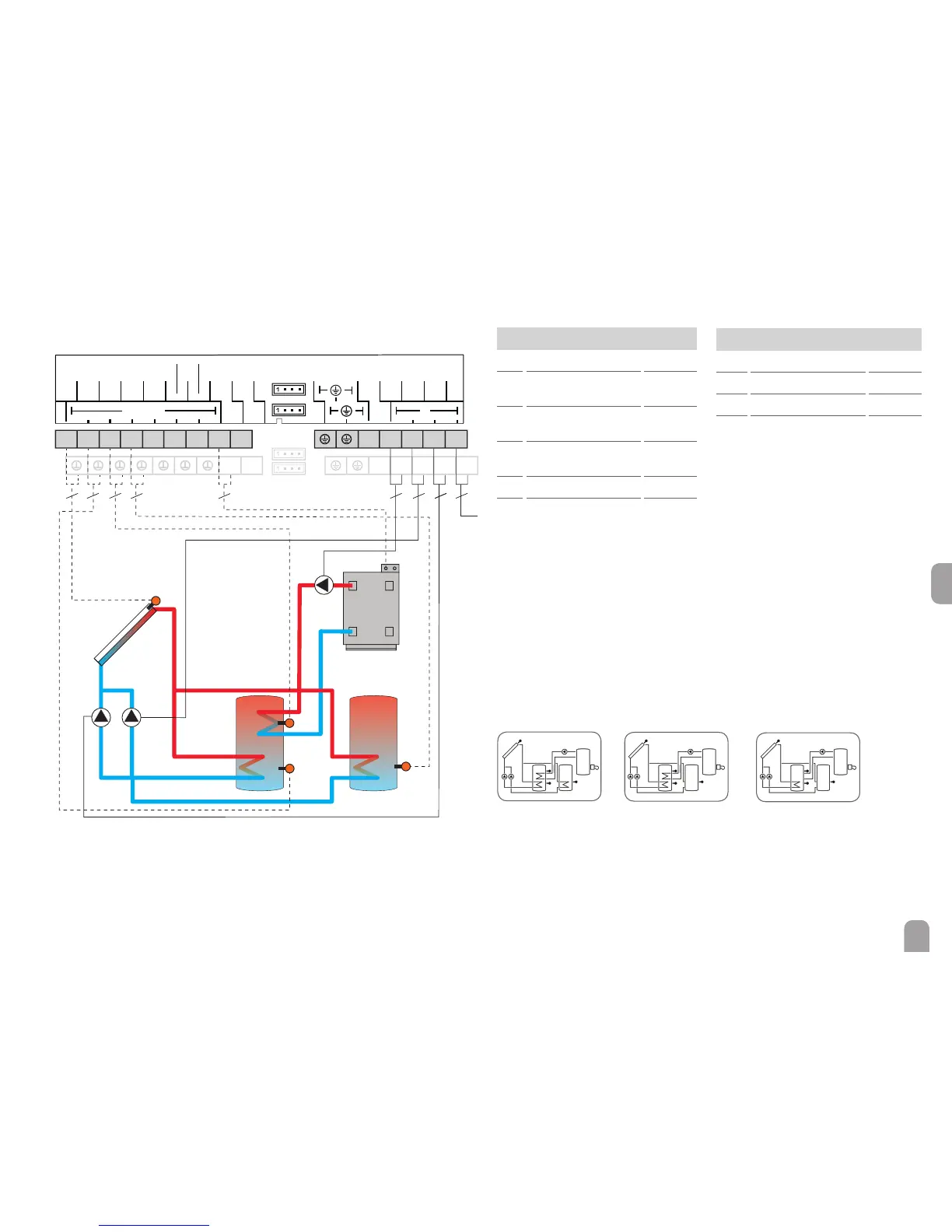

System 25: 2-store solar system with pump logic
The controller compares the temperature at sensor S1 to the temperatures at
sensors S2 and S4. If the measured temperature differences are higher than the
adjusted switch-on temperature differences, the pump (R1 and / or R2) will be
activated and the corresponding store will be loaded up to the adjusted store
maximum or set temperature respectively at most. The priority logic effects prior
loading of store 1.
Afterheating (R3 and R4) can be carried out with a thermostat function (S3). If the
value at S3 reaches the switch-on temperature for the afterheating, the relay is
switched on. If the value exceeds the switch-off temperature for the afterheating,
the relay is switched off again.
R1 R2
S4
S1
S2
S3
R3
R4
2
33
2 2 3
2
3
VBus
VBus
S5/V40
S4 S3
GND
S6
S7
Sensors
Relais
S2 S1
N
R3 R2 R1
L
R4 PWM A
0-10 V
PWM B
0-10 V
R4
N N N N
R3 R2 R1 L
1234
56789
10 11
2
Netz
Mains
Hydraulic variant 1
Hydraulic variant 3Hydraulic variant 2
Sensors
S1 Temperature collector 1 / GND
S2 Temperature store
base
2 / GND
S3 Temperature
afterheating
3 / GND
S4 Temperature store
2 base
4 / GND
S5 Free 5 / GND
S6 Free S6
Relay
R1 Solar pump store 1 R1 / N / PE
R2 Solar pump store 2 R2 / N / PE
R3 Pump R3 / N / PE
R4 Afterheating R4 /R4
