Chapter 3: Specifications, Description, Features, & Theory of Operation
RESPIRONICS*

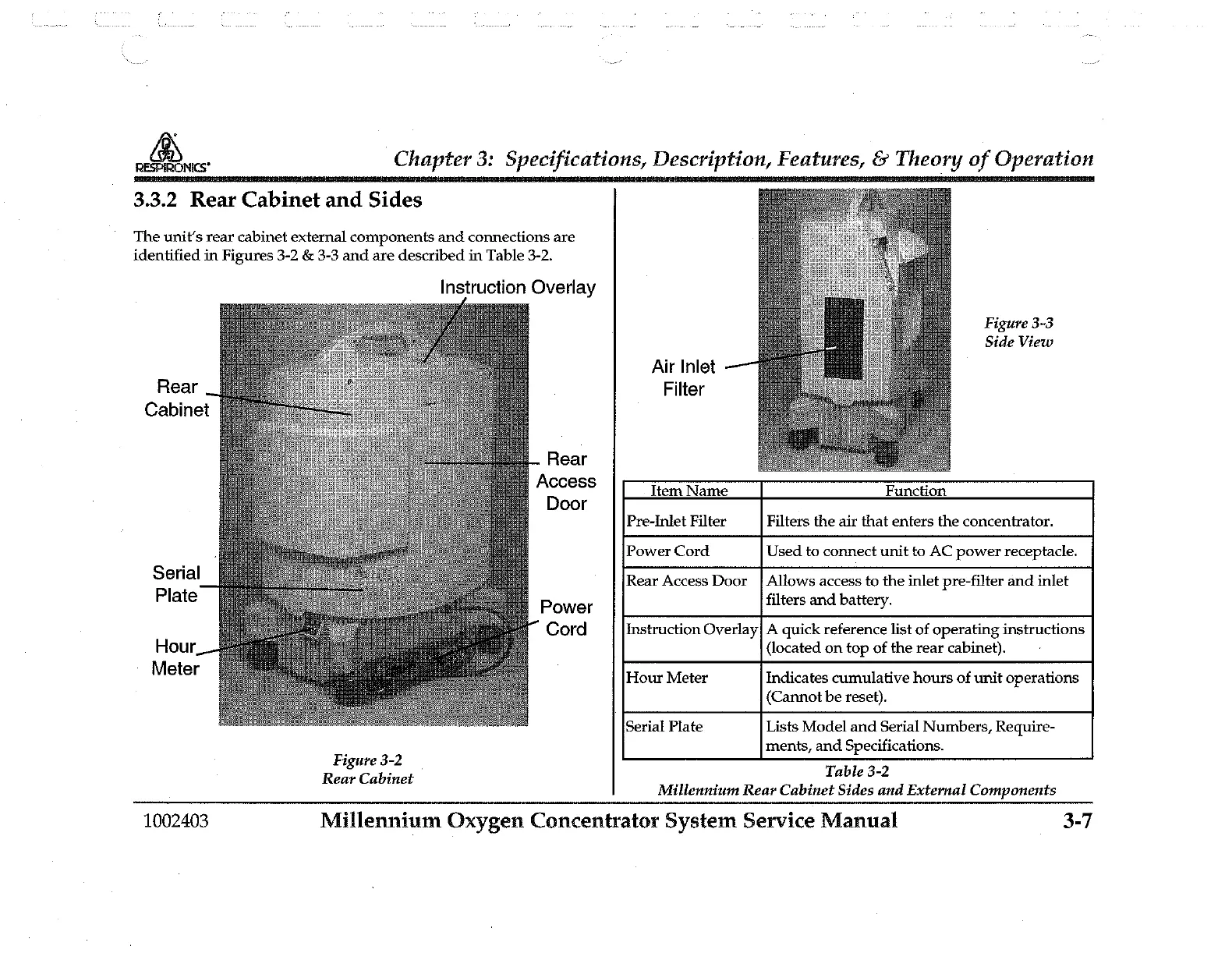

3.3.2 Rear Cabinet and Sides
The unit’s rear cabinet external components and connections are
identified in Figures 3-2 & 3-3 and are described in Table 3-2.
Instruction Overlay
Figure 3-3
Side View
Air Inlet
Rear | Filter
Cabinet
Rear
Access Item Name Function
Door
Pre-Inlet Filter Filters the air that enters the concentrator.
Power Cord Used to connect unit to AC power receptacle.
cora Rear Access Door | Allows access to the inlet pre-filter and inlet
ate i
Power filters and battery.
Cord Instruction Overlay| A quick reference list of operating instructions
Hour {located on top of the rear cabinet).
Meter Hour Meter Indicates cumulative hours of unit operations
(Cannot be reset).
Serial Plate Lists Model and Serial Numbers, Require-
Fi 32 ments, and Specifications.
igure 3-.
Rear Cabinet Table 3-2
Millennium Rear Cabinet Sides and External Components
1002403 Millennium Oxygen Concentrator System Service Manual 3-7
