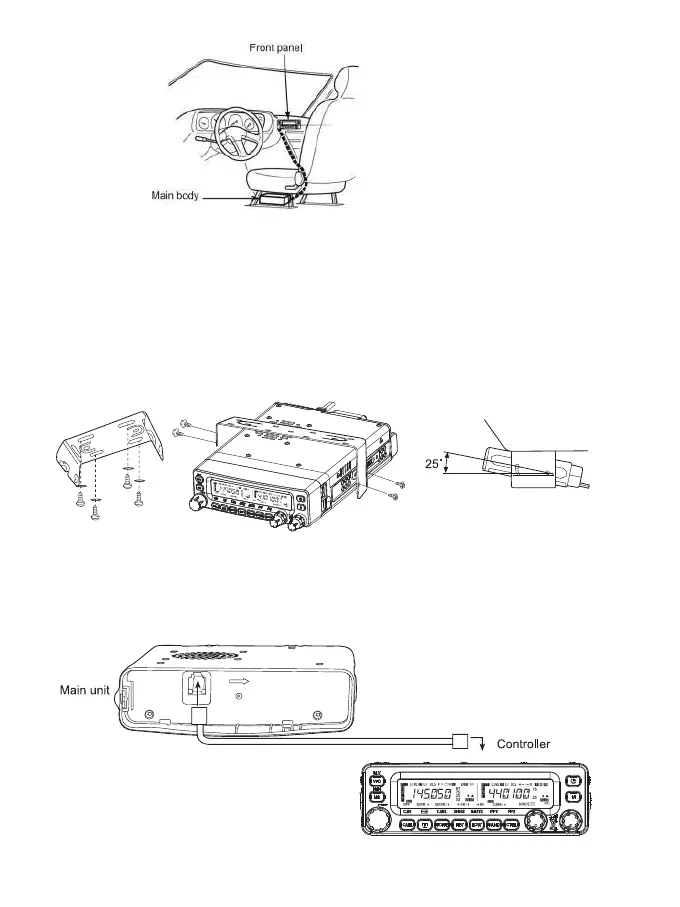

The supplied remote controller mounting bracket and separation cable can be used for
installation.
Mounting bracket installation
1. Drill 4 holes where the mounting bracket is to be installed.
2. Inse the supplied screws,nuts and washers through the mounting bracket and tighten.
3. Adjust the angle to your suitable position.
Front panel cable connection
The radio suppo the front panel to be separated via the panel cable .
Connect the controller and the main unit using the cable as follows.
2
