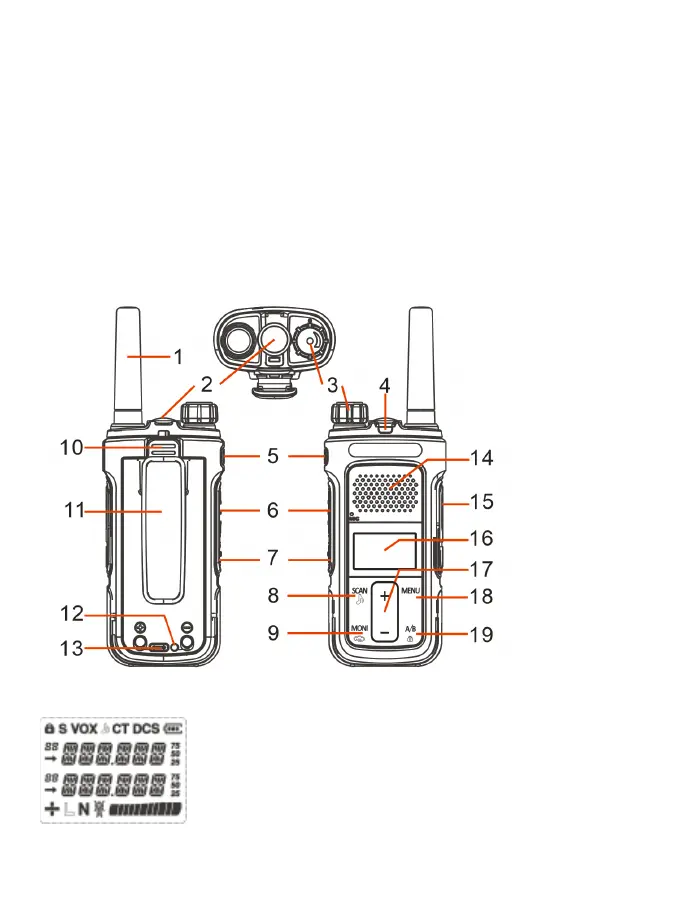

8.[SCAN]: Press to send a CALL ALERT signal; Press and hold to enter SCAN mode.
9.[MONI]: Press to enter weather forecast mode; Press and hold to enter MONITOR mode.
10.Battery release latch
11.Belt clip
12.Charging indicator: The red light is always on during charging, and the green light is always on when charging
is full.
13.Micro-USB Charging Port: DC5V USB input
14Speaker
15.External Speaker/Microphone Jack: allows the connection with external devices such as headsets,
microphones.
16.LCD Display
17.+/- keys: push to select functions or Menu. Channel mode, press + to switch up the channel; press - to switch
channel down.
18.Menu: press to enter the Menu functions and to confirm your selections.
19.[A/B] In standby mode, press this key to switch between main/sub channels between A/B channels. Press and
hold this key to lock or unlock the keyboard. Menu mode, Press the key to exit the menu; Press to enter SCAN
mode. Press and hold to turn KEY LOCK on/off.
4.2 LCD Display
5
