SET MODE
•When the GPS signal is not received, and screen displays "NO POSITION”,please check whether the radio is blocked by obstructions.
•GPS" flashes when GPS data is invalid.
Ƈ7UDQVPLWWLQJ3RVLWLRQ5HTXHVWFDOO
Transmit a Position Request call when you want to know a specified ship’s current position, etc.
1.Push [DSC] to enter the DSC menu.

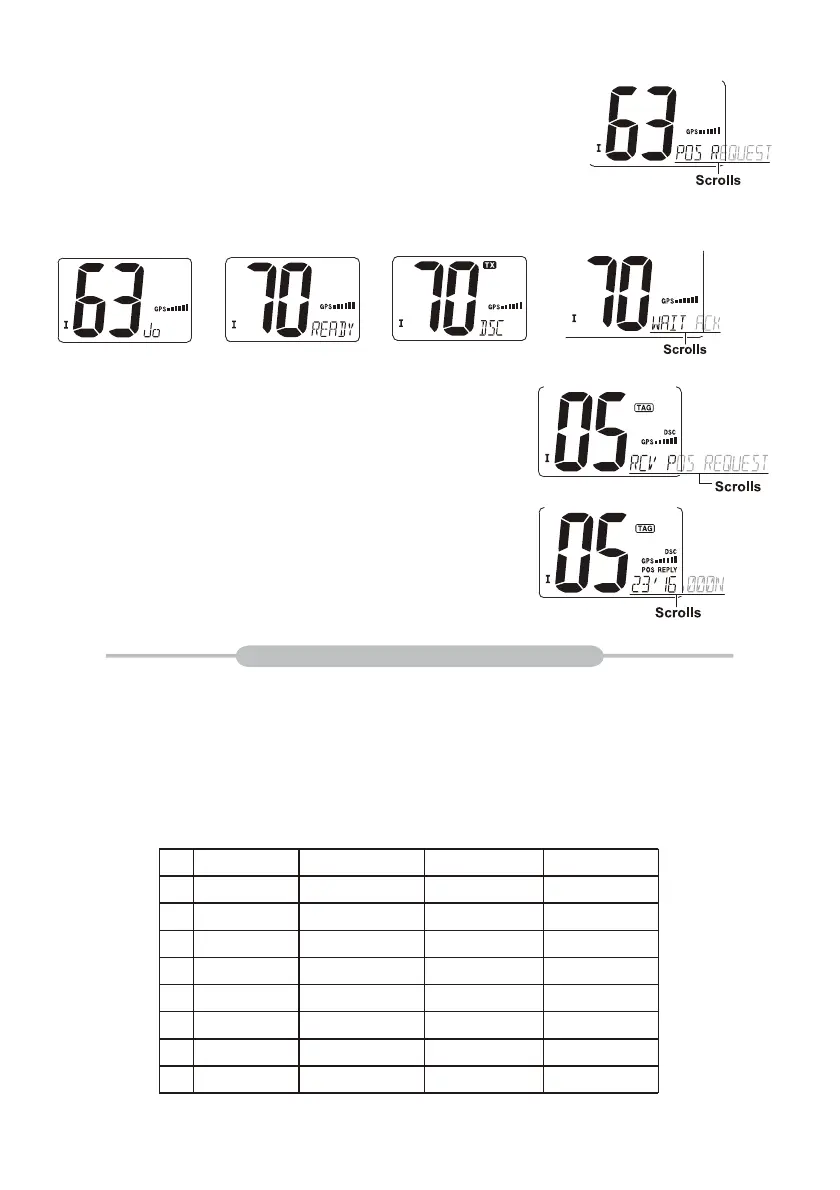

(Image1)
3XVK>Ÿ@RU>ź@WRVHOHFWWKHGHVLUHGSUHSURJUDPPHGLQGLYLGXDODGGUHVV
• The ID code tor position request must be set in advance.(Image2)
4.Push [DSC] to enter the standby condition for Position Request call.
• Channel 70 is selected and "READY" appears.(Image3)
5. Push [DSC] to transmit the Position Request call.(Image4)
6. After the Position Request call has been transmitted, the following indication is displayed.
• “WAIT ACK" scrolls at the channel comment indicator.(Image5)
7. Push any key to exit the condition and return to the normal operation.
Ƈ5HFHLYLQJD3RVLWLRQ5HTXHVWFDOO
While monitoring Channel 70 and a Position Request call is received:
1. “DSC" appears and "RCV POS REQUEST scrolls at the channel comment indicator.
2. Push any key to stop the beep.
3. Push [DSC] to reply to the call; Push any other key to ignore the call.
Ƈ5HFHLYLQJD3RVLWLRQ5HSO\FDOO
While monitoring Channel 70 and a Position Reply call is received:
1. 'DSC" and “POS REPLY" appear in the display.
» The ‘Latitude' and ‘Longitude' from the called station Is displayed and scrolled
automatically in order of Latitude co-ordinates and then Longitude co-ordinates.
2.Push any key to stop the beep
Ŷ6HWPRGHSURJUDPPLQJ
Set mode is used to change the conditions of the transceiver's functions: Scan type (Normal or Priority), Scan resume timer, Weather alert,
Dual/Tri-watch, DSC watch, Beep tone, Auto acknowledgement and Favorite channel function.
Set mode operation
1.Turn power OFF.
2.While pushing [16], tum power ON to enter Set mode.
3.After the display appears, release [16].
• "SCAN” appears at the channel comment indicator.
4.Push [16] to select the desired item, if necessary.

6.Tum power OFF, then ON again to exit Set mode.
No. Display Item Option Default
1
2
3
4
5
6
7
8
SCAN
TIMER
WX ALERT
DUAL
DSC WATCH
BEEP
AUTO ACK
FAVORITE CH
Scan type
Scan resume timer
Weather alert
Dual/Tri-watch
DSC watch
Beep tone
Auto
Favorite channel
n- (normal scan)
of (OFF)/on (ON)
of (OFF)/on (ON)
d-(Dualwatch) /1-
of (OFF)/on (ON)
of (OFF)/on (ON)
of (OFF)/on (ON)
of (OFF)/on (ON)
n- (normal scan)
of (OFF)
of (OFF)
d-(Dualwatch)
of (OFF)
on (ON)
of (OFF)
on (ON)
(Image1)
(Image2) (Image3) (Image4) (Image5)
10
