Retsch SM300 - Mounting the Feed Hopper

Transport, scope of delivery, installation
12

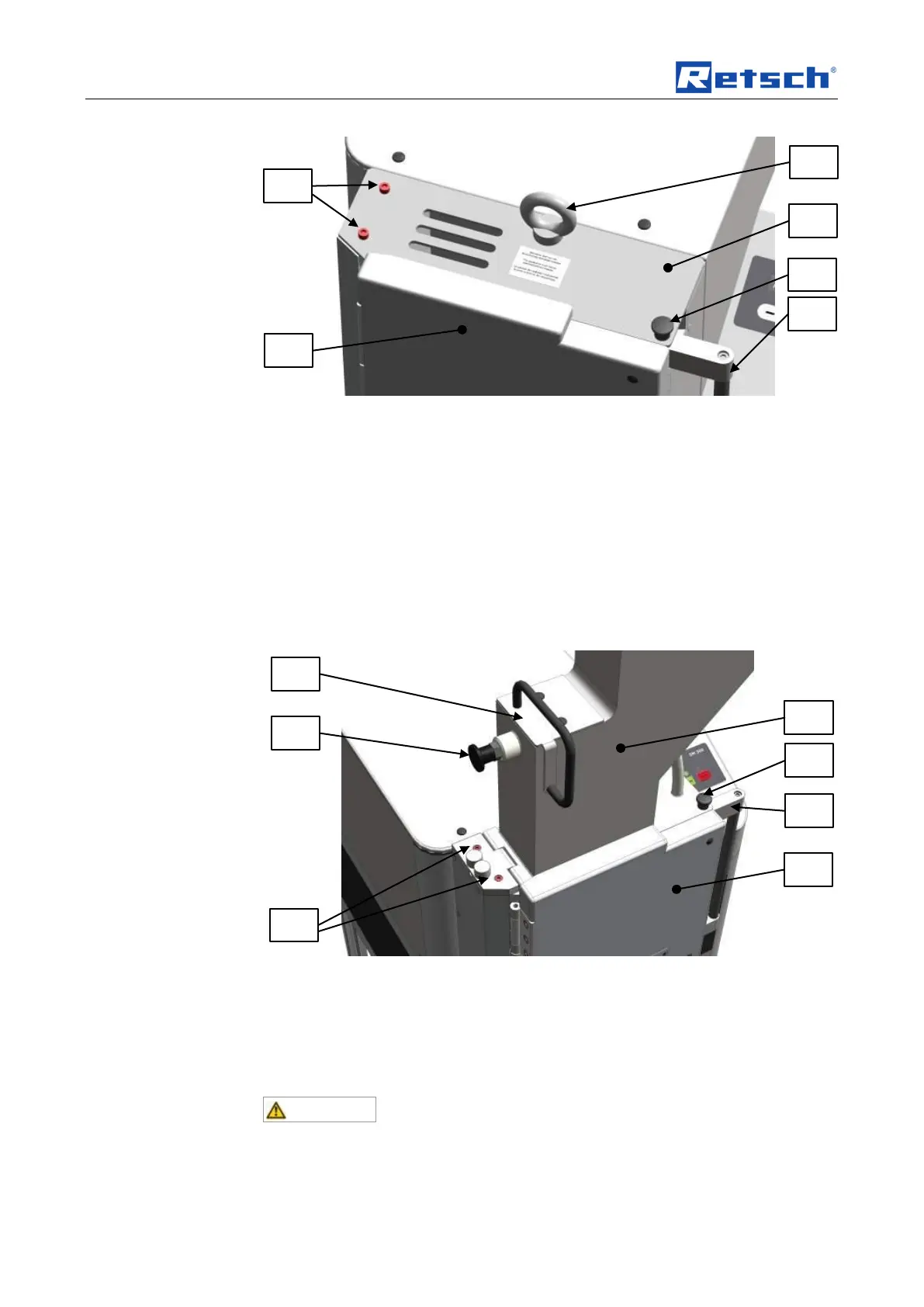

Fig. 2: Removing the Transport Safeguard
• Remove the transport aid (TH).
• Unlock the grinding chamber door by pulling the mini detent pin (E) upwards
and pressing the handle of the door latch (F) backwards.
• Open the grinding chamber door (T).
• Remove the two locking screws (S).
NOTE
Keep the transport safeguard (TS) for transport at a later date.
3.6.2 Mounting the Feed Hopper
Fig. 3: Mounting the Feed Hopper
• Push the handle on the door latch (F) backwards.
• Open the grinding chamber door (T).
• Pull the plunger (B) into the upper latching position.
• Place the feed hopper (R) on the device. (see diagram)
CAUTION
Until the feed hopper (R) is secured by the two socket-head screws, there is a risk
of it falling out of the device.
• Release the detent pin bolt (D) on the plunger (B).
E
F
S
T
B
R
D
TH
E
F
TS
S
T
