Cleaning and service
34
8 Cleaning and service
8.1 Adjusting the cutting bars
The cutting gap must be checked to ensure that the device is functioning
satisfactorily (target distance 0.3mm). For this reason the cutting bars (SL) are
arranged so that they can be shifted to permit adjustments to the cutting gap.

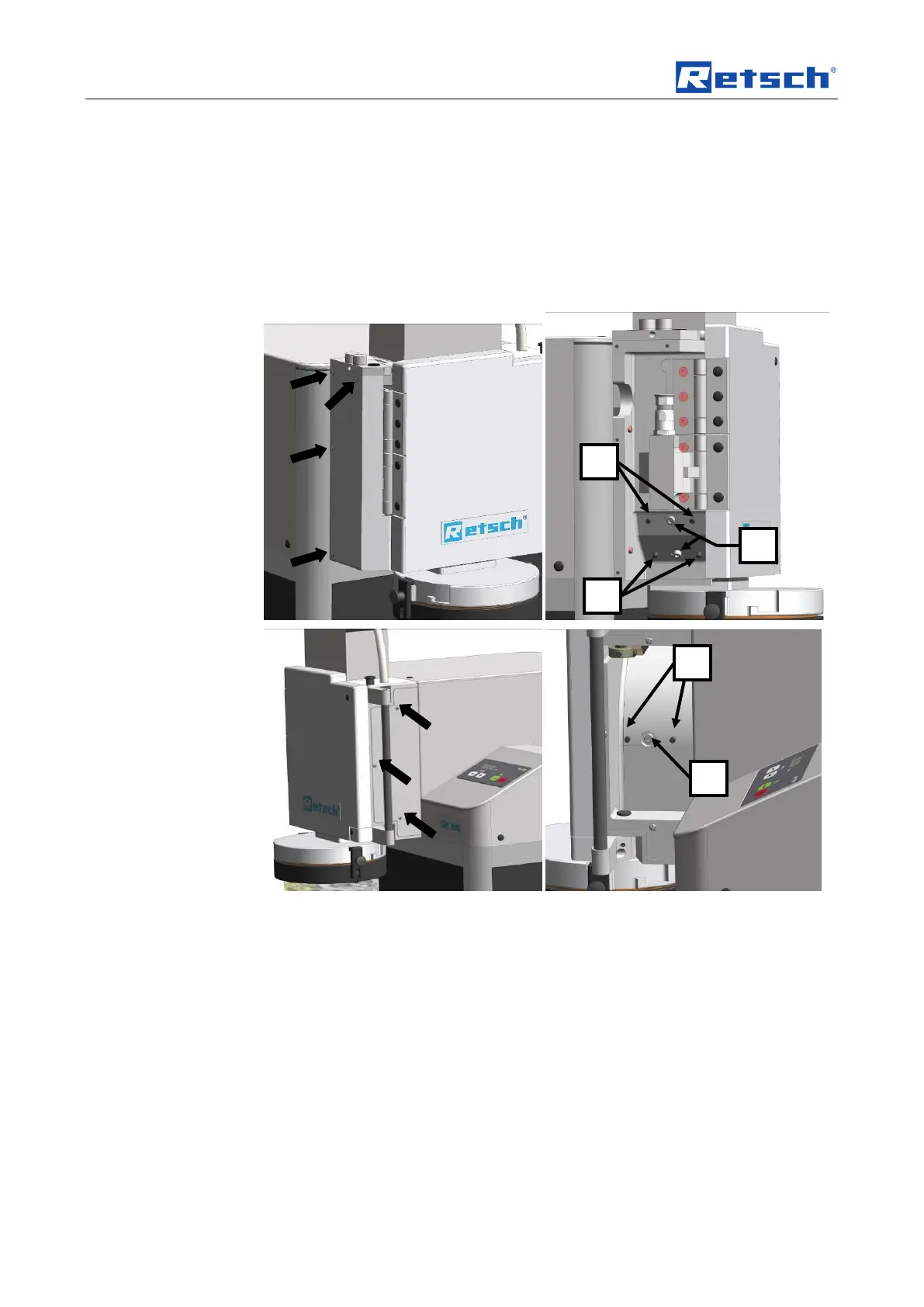

Fig. 6: Access to the cutting bars
• Unscrew the four screws on the left-hand cover.
• Unscrew the three screws on the right-hand cover.
• Open the grinding area door.
• Pull the rotor approx. 10 mm out of the grinding area until it can be freely
rotated.
