Assembling and using the cyclone
32
• Turn the side tube to the discharge flange and push the coupling (Z1) onto
the adapters on the discharge flange.

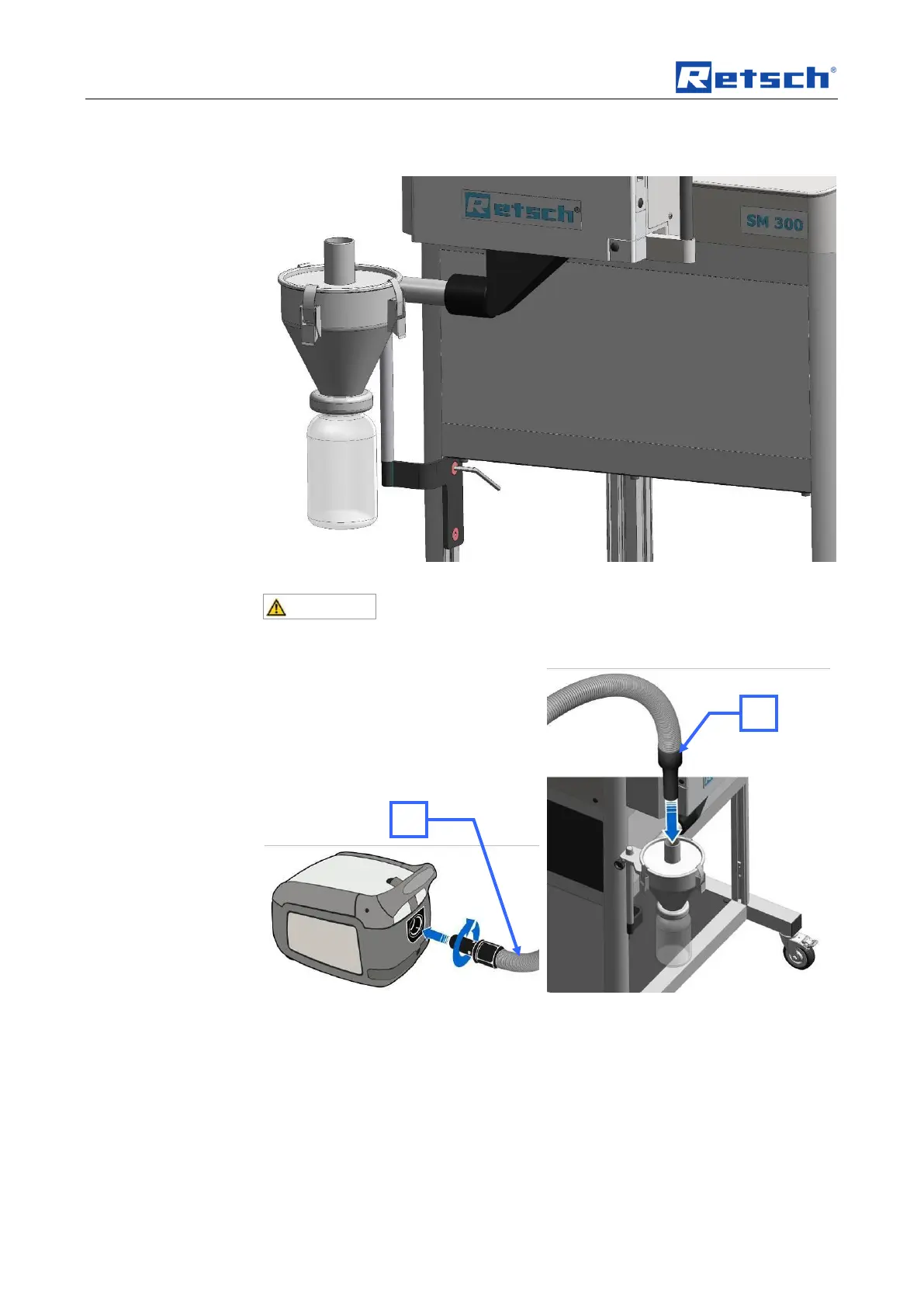

Fig. 23: Assembled cyclone
Before using the industrial vacuum cleaning, read the operating instructions
supplied with the vacuum cleaner.
Fig. 24: Connecting the industrial vacuum cleaner
• Plug the connector for dust extraction (W1) into the top opening on the
cyclone.
