Reverso Pumps, Inc.

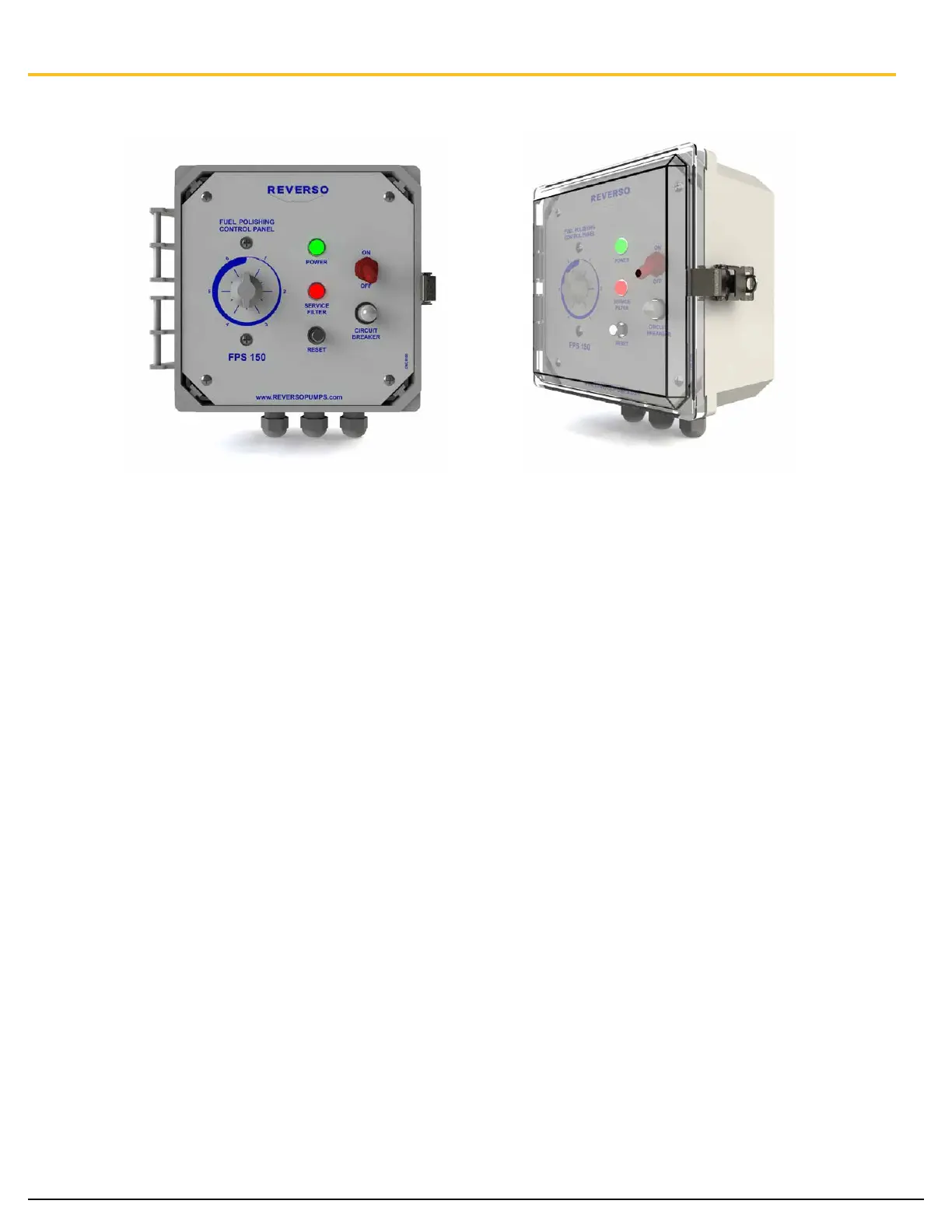

Mechanical Control
• High vacuum: The vacuum switch on the system is set to -16 inHg. Once the system reaches this condition
it is time to replace or backush the element on the Separ Filter.
• High water level: When the water level reaches the maximum capacity on the lter bowl, the alarm will
trigger. Proceed to drain the bowl.
If any alarm triggered, proceed to de-energize the pump while servicing. Make sure to follow instructions listed
in the manual. When done, press reset button.
Alarms
1. Ensure the fuel supply valve is open and the system is primed.
2. Ensure power to the system and the green power light is illuminated.
3. Turn timer knob clockwise to desired number of hours for operation.
4. Pump will start running immediately, and the timer will count down to zero over time.
Operation
