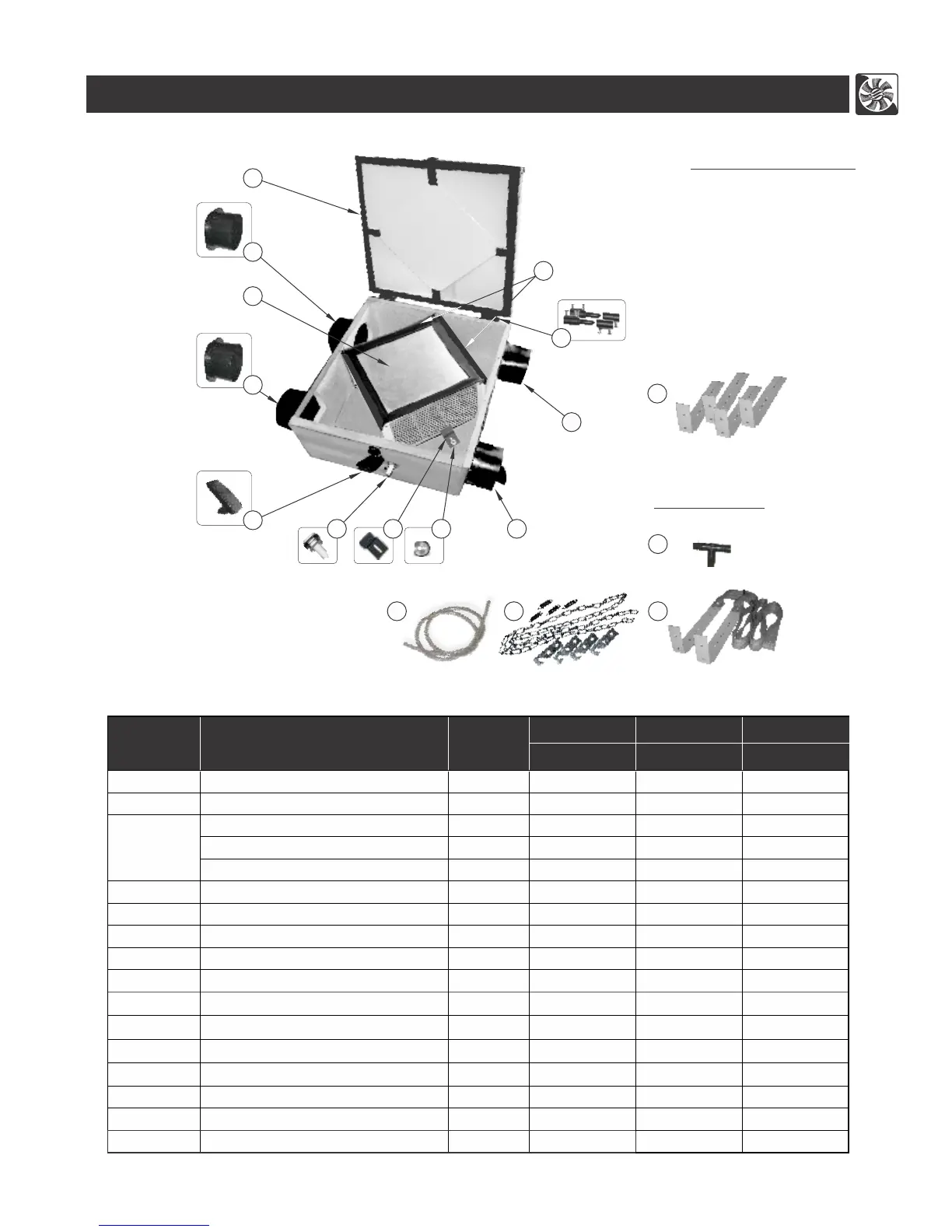

Reversomatic RERV-S200 - Page 5

Parts List
3
Reference Description Part no.
RHRV-E100A RHRV-E100P RERV-E100
QTY. QTY. QTY.
1 HRV / ERV - Lid, Pan Assembly 9315 1 1 1
2 Polypropylene Collar 5” Dia. 014043C 2 2 2
3
Aluminum Core 9312 1 n/a n/a
Polypropylene Core 9313 n/a 1 n/a
Enthalpy Core 9314 n/a n/a 1
Filter 7* x 12* (MERV - 4) 9358
2
2 2
4
5”ø Polypropylene Backdraft Damper 014043 2 2 2
5
Adjustable Door Latch 9319 1 1 1
6
Drain Spout Assembly 9320
2 2 2
7
Core Locking Bracket 9321 1 1 1
8
Nut 014016 1 1 1
9
Door Hinges 9328 1 Set 1 Set 1 Set
10
Mounting Brackets 011135 4 4 4
11
“ T ” Connector 9330
1
1 1
12*
Webbing/Brackets/Ladder Locks 9332 2 Sets 2 Sets 2 Sets
13*
Chains/Springs/Brackets 9354 1 Set 1 Set 1 Set
14*
Drain Pipe 9331 1 1 1
Economy Series
model:
RHRV-E100A
Aluminum Core
RHRV-E100P
Polypropylene Core
RERV-E100
Enthalpy Core
1
2
4
5
2
5
6
7 9
3
11
15
*
13
*
*Optional Parts:
12
*
14
*
4
15*
8
10
