Firmly insert and screw in the
two 2.4G/5.8G antennas.
IQMC412 External Antenna
can be added here.
The four antennas labeled “4G/5G”
are installed on the back of the
IQMC412 & IQMC520. The
additional 4G/5G antenna on the
IQMC520 install in front of the
2.4G/5.8G antenna.
4G/5G Antennas
2.4G/5.8G Antennas
SETTING UP YOUR IQMC ROUTER
Your IQMC comes ready to connect. There’s nothing required
other than attaching the antenna, finding the optimum location, and plugging it in!

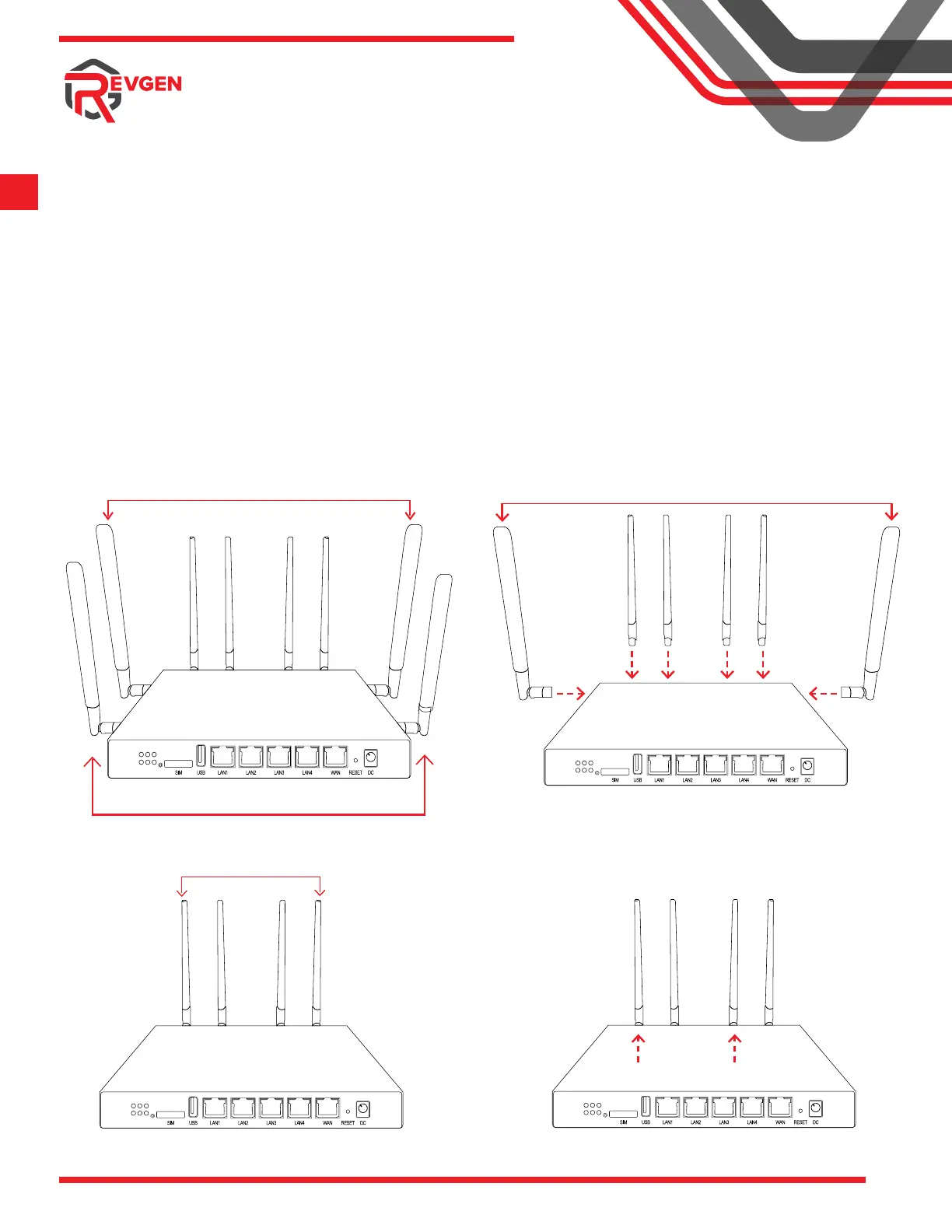

Installing the Antenna
The IQMC412 comes with 6 antennas, and the IQMC520 comes with 8. Near the antenna’s connectors on the device
are the antenna labels. There are two antenna labeled “2.4G/5.8G” and four (IQMC412) or six (IQMC520) antenna
labeled “4G/5G”. The two antennas labeled “2.4G/5.8G” are to be installed onto the sides of the IQMC that
correspond to this specification.
IQMC520 configuration
IQMC412 configuration
2.4G/5.8G Antennas2.4G/5.8G Antennas
IQMC520 External Antenna
can be added here.
PWR 2.4G 4G/5G
SYS 5.8G USB
PWR 2.4G 4G/5G
SYS 5.8G USB
SYS 5.8G USB
SYS 5.8G USB
PWR 2.4G 4G/5G
PWR 2.4G 4G/5G
