Operation – Overview of User Interface

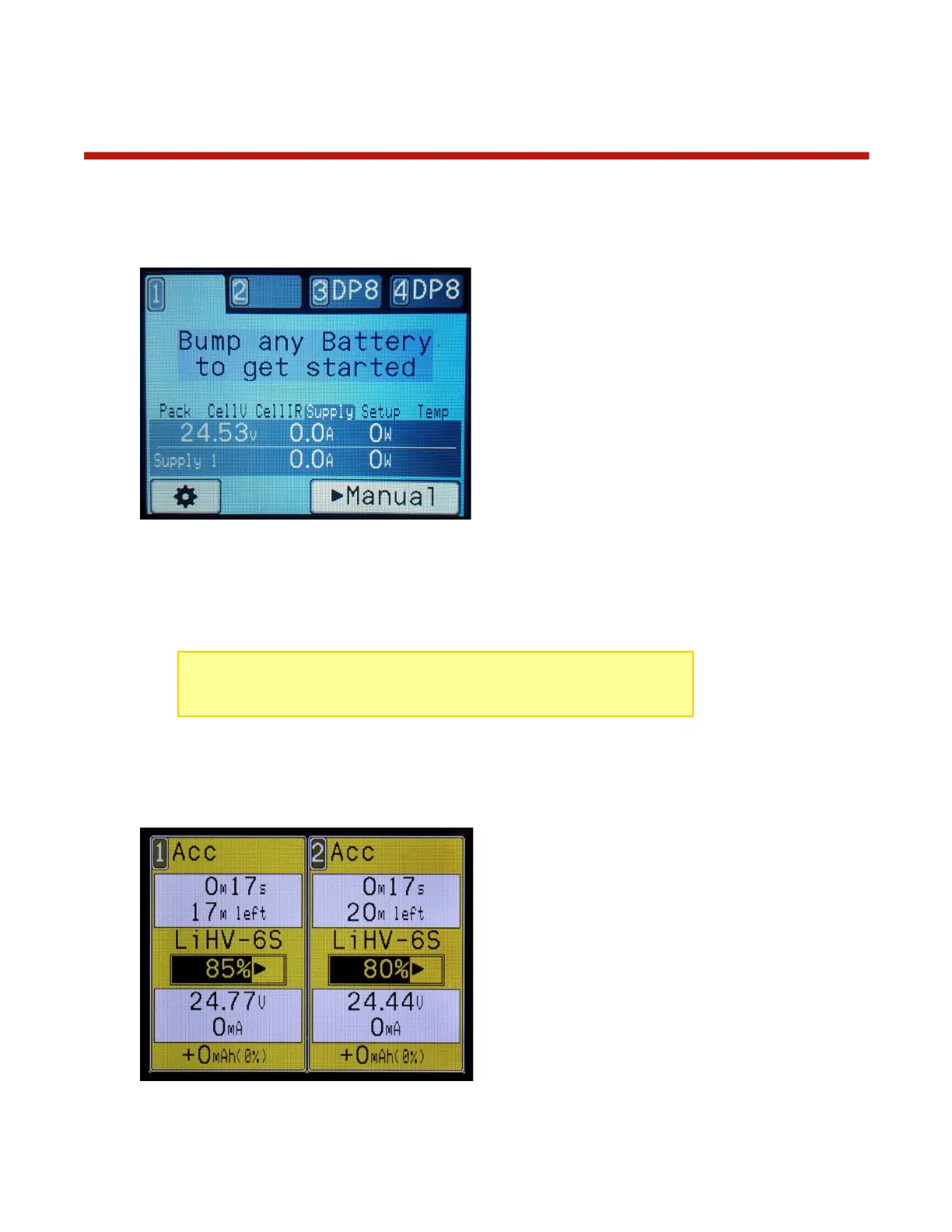

Status Screen - Charger Tabs
The main Status Screen displays the current status of all charger channels. The tab text and background
color will indicate the current charger state.
Selecting the Settings (gear) button will open the Settings screen (see Settings section).
Selecting the Manual operation button will open the Manual Operation screen (see Manual Operation).
Selecting the charger tabs at the top of the screen will change the current selected charger.
If more than one charger is currently in an active state (charging, discharging, etc.), touching the selected
tab a second time will switch to an Overview screen. In this mode, only the active chargers are displayed
and the charger status information consumes the entire display. From this screen, touching any charger
will select that charger and return to the main Status screen.
NOTE: When you bump a BumpTag, that battery will be added to the
setup list for the current selected charge channel, so select the channel
first, then bump the battery you would like to charge.
