ILLUSTRATED PARTS MANUALS
SERIES 7 SHREDDERS – 230v
DESKSIDE AND OFFICE MODELS
TIMING OF GEARS – ALL CROSS
CUT MACHINES
Before tackling the 1:1 gears, mark
Which teeth mesh so that on re-assembly,
Their exact alignment can be reproduced –
This is essential for machine performance
And safe operation.
Replacement
1. Slide the front 1:1 gear into place on its key, and replace the circlip.
2. Assemble the rear gear to its shaft and key, and (for ALL CROSS CUT shredders), through
trial fits, align the gears so that their original meshing arrangement is exactly reproduced.
3. Refit the compound gear.
4. Install the large gear on its key and collar and for the 1255 refit the ‘security’ gear spigot into
its bush in the side frame.
5. Replace gearbox cover (section 5)
6. Fit cutting head into the cabinet (section 2)
7. Replace top cover (section 1)
8. Test machine operation.

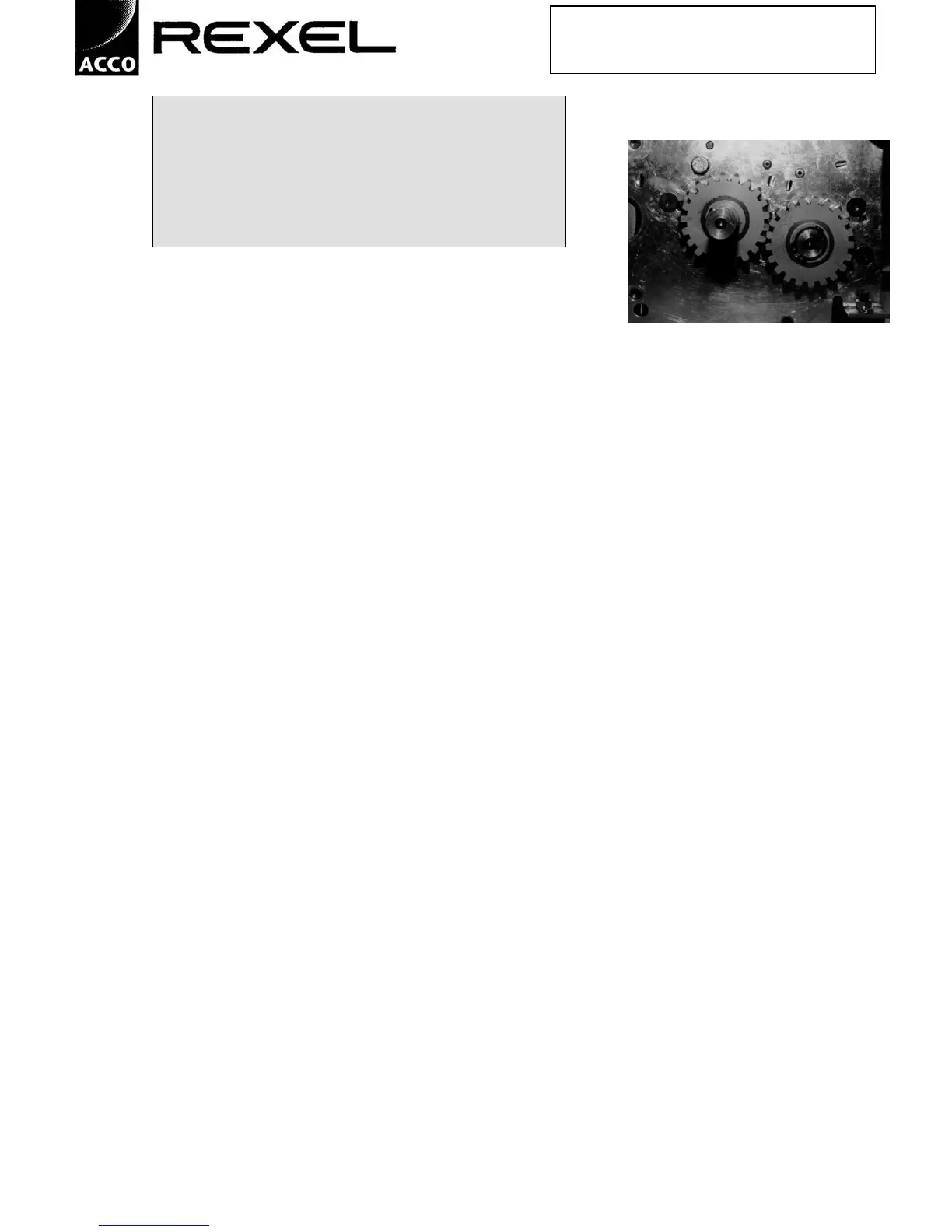

View on 1:1 Gears—Note meshing
