Group supply
"Group supply" is the standard supply if several DKC drive controllers are
to supplied from one supply voltage.
Characteristic for the "group supply" is that the mains voltage is applied to
groups of DKC drive controllers via a common mains contactor.
Arranging the single source supply
Ap5405f1.fh7
K1
3
3
3
3 3
3

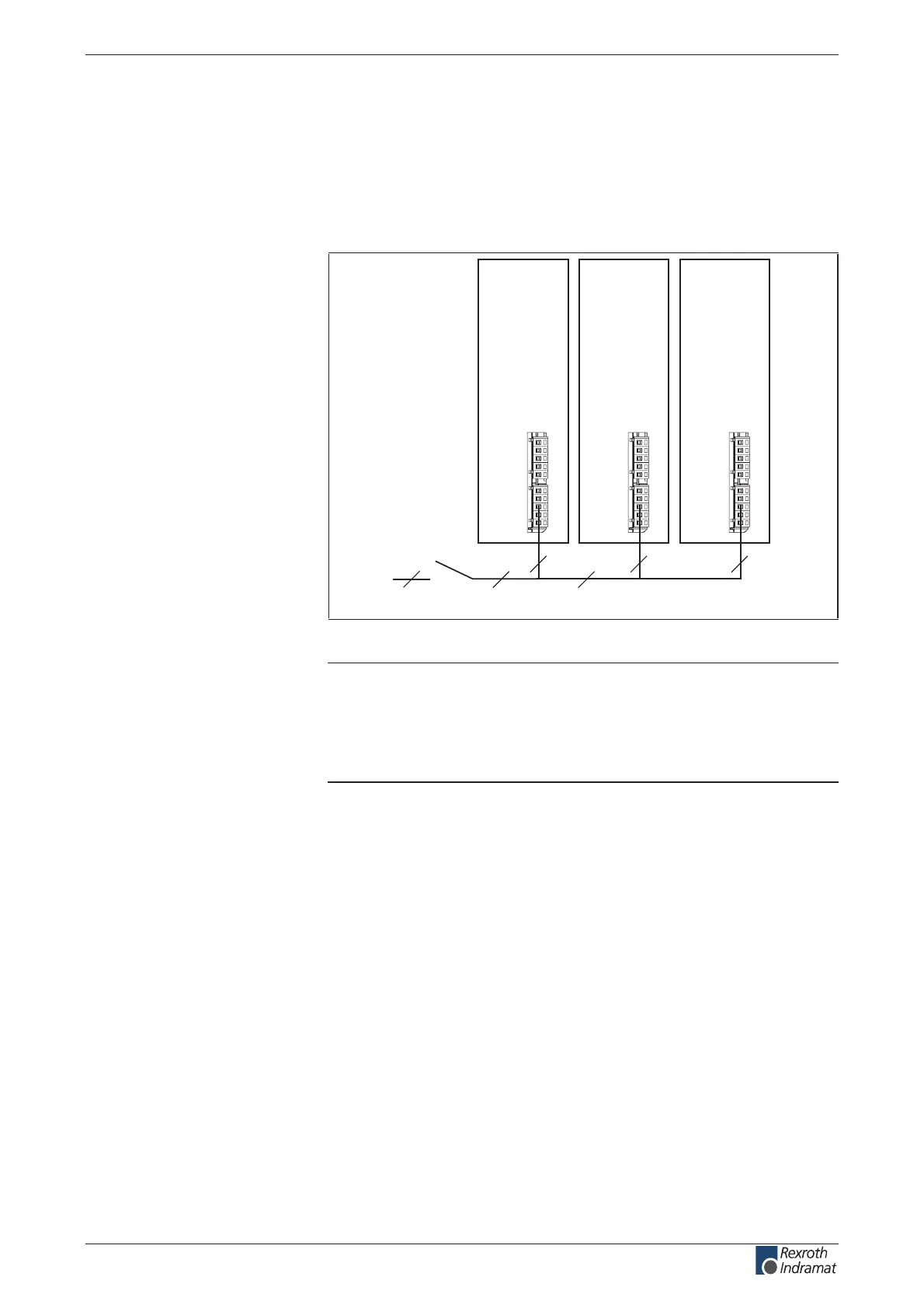

Fig. 5-11: Group supply
Note: In addition to the illustrated connections of the drive controller
at the DC bus, the following connections must be wired as
well:
• Bb contact
• control voltage supply
