5-6 Mechanical Data Rexroth IndraDrive C
DOK-INDRV*-HCS02.1****-PR02-EN-P
Outlet Temperatures in Normal Operation
The diagrams below (see next page) show the temperature rise of the air
from air intake at the bottom of the device to air outlet at the top of the
device, depending on the average continuous power at the breaking
resistor. The values "d" are representing different distances from the top
of the device (see following figure):
kuehlluft.FH7
d
A
B
C
A: air inlet
B: air outlet
C: control cabinet mounting plate
d: distance from the top of the device (see also following diagrams)

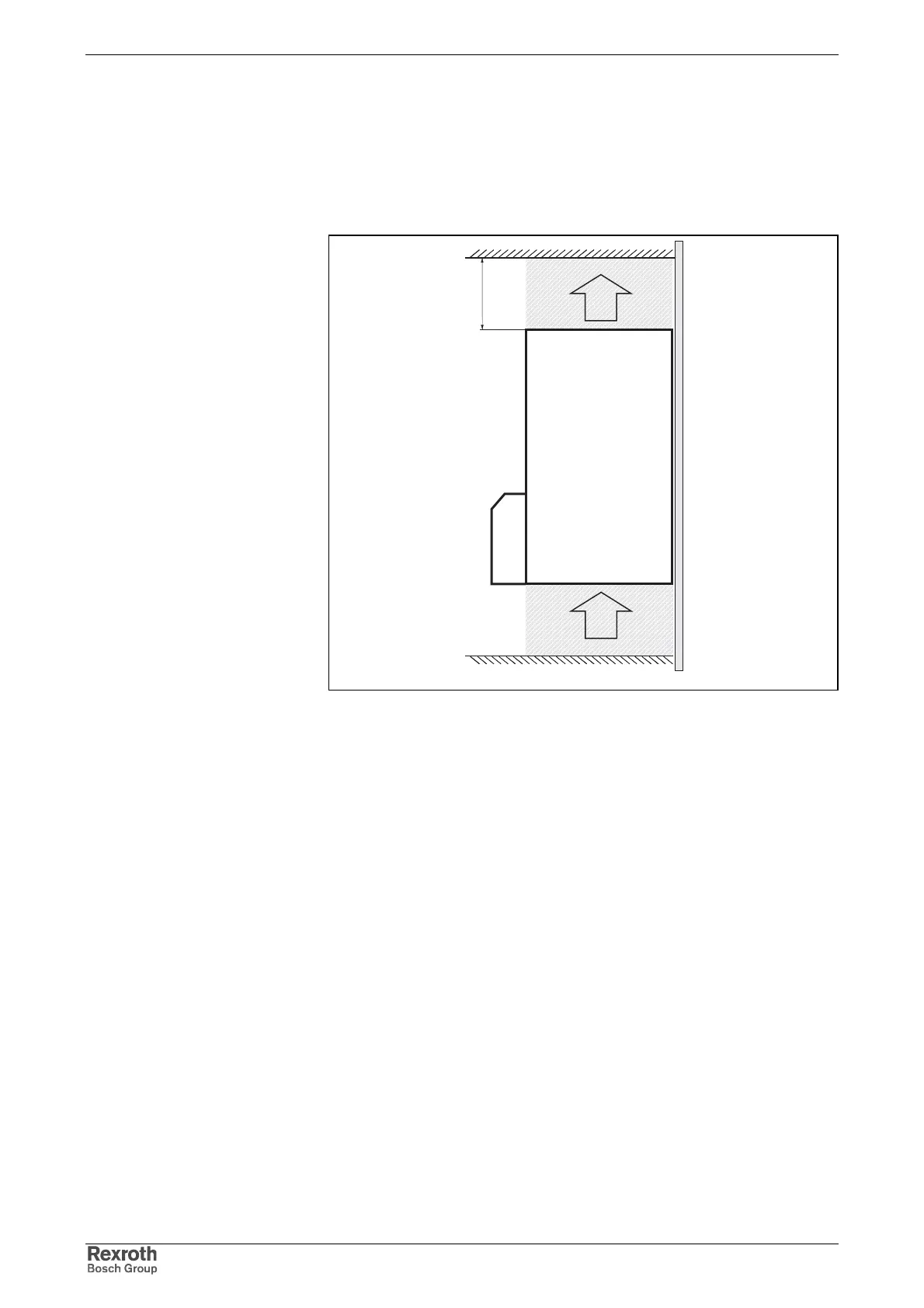

Fig. 5-6: Air inlet and outlet of drive controller
