REXROTH HCS02.1 Series User Manual

6-16 Electrical Data Rexroth IndraDrive C
DOK-INDRV*-HCS02.1****-PR02-EN-P
HCS02.1E-W0054
0 2 4 6 8 1012141618202224
0
30
60
90
120
150
180
210
240
270
300
Pv vs Iout for HCS02.1-W0054
300
0
P
V4kHz
i
out_4kHz
()
P
V8kHz
i
out_8kHz
()
P
V10kHz
i
out_10kHz
()
P
V12kHz
i
out_12kHz
()
P
V16kHz
i
out_16kHz
()
240
i
out_4kHz
i
out_8kHz
,
i
out_10kHz
,
i
out_12kHz
,
i
out_16kHz
,
y-axis: Power dissipation [W]
x-axis: Current (rms value) [A]

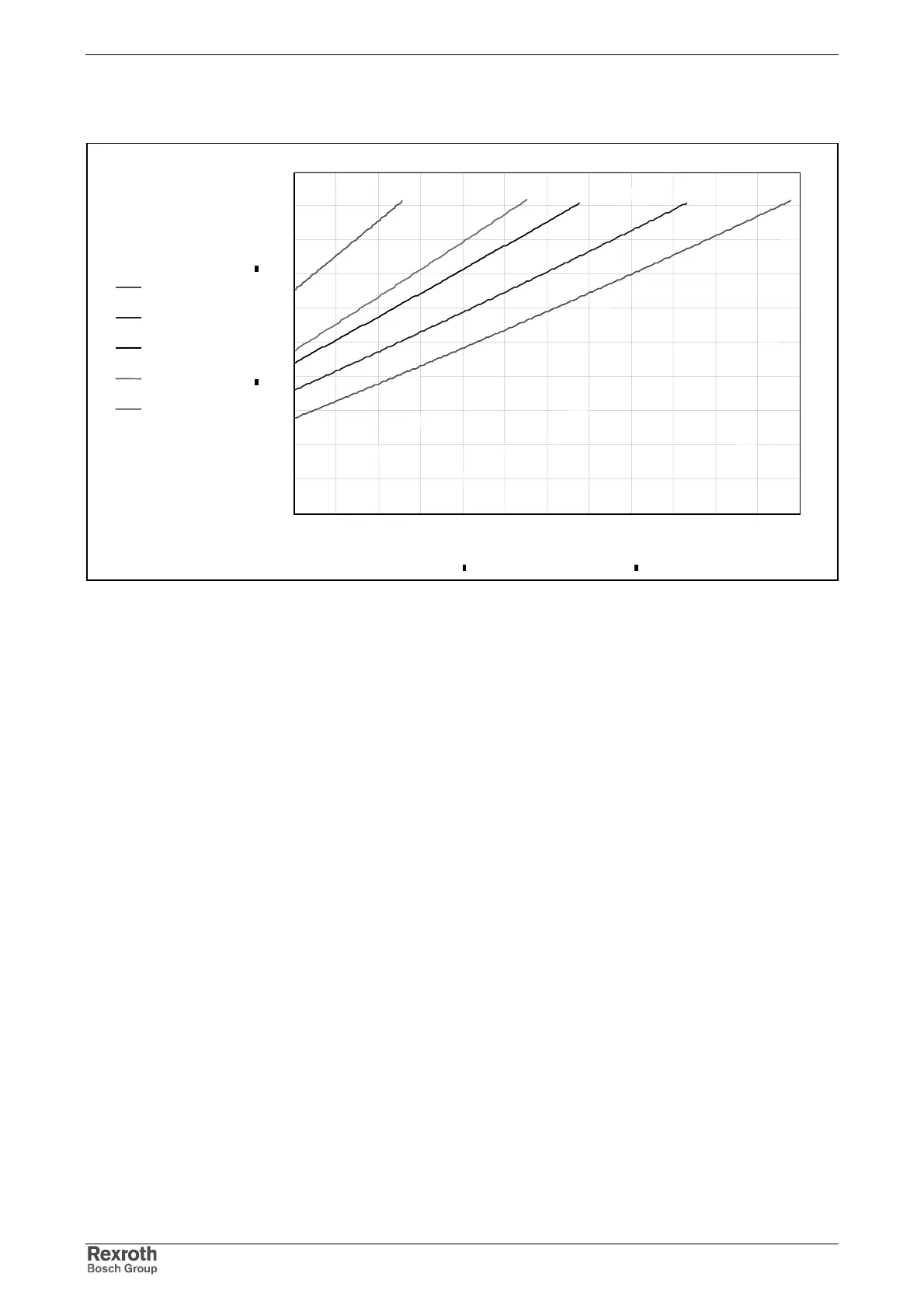

Fig. 6-16: Power dissipation power section HCS02.1E-W0054
16 kHz
12 kHz 8 kHz
4 kHz
10 kHz
